TRANSMISSION ('80 D1)

KZ440D5 LTD 1983 USA CANADA / BELT DRIVE

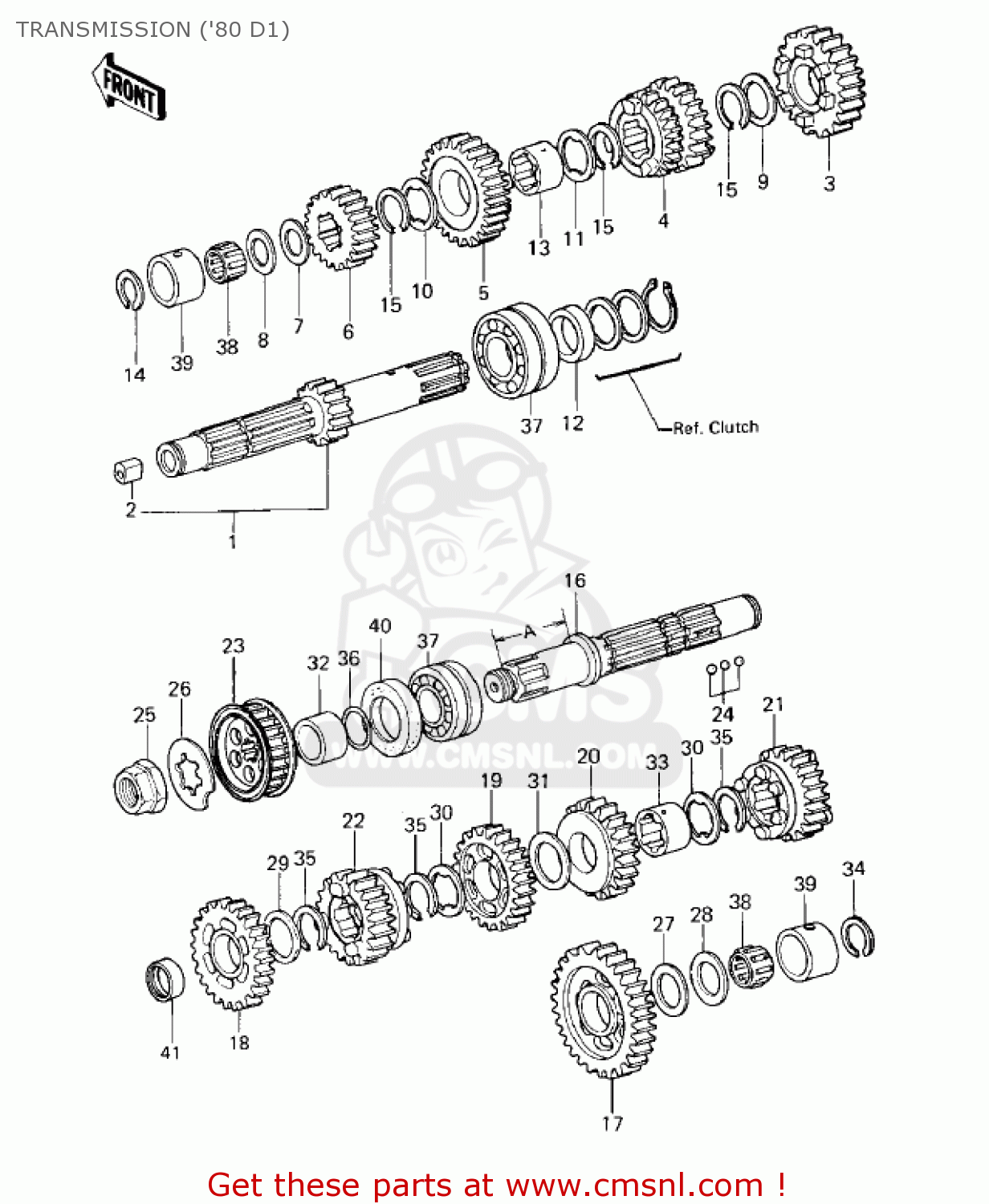

Transmission ('80 d1) diagram KZ440D5 LTD 1983 USA CANADA / BELT DRIVE

TRANSMISSION ('80 D1) KZ440D5 LTD 1983 USA CANADA / BELT DRIVE

TRANSMISSION ('80 D1) KZ440D5 LTD 1983 USA CANADA / BELT DRIVE

prices are in EUR

ref

part #

description

quantity

1

131271004
ref: 1

SHAFT,DRIVE,13T

€ 109.50

2

92028155
ref: 2

BUSHING,DRIVE SHAFT

€ 9.50

3

131291277
ref: 3

GEAR,INPUT5TH,23T

€ 67.00

4

131291054
ref: 4

3RD-4TH GEAR,DRIVE

€ 80.50

5

131291055
ref: 5

TOP GEAR,DRIVE SHAFT

€ 65.00

6

131291062
ref: 6

2ND GEAR,DRIVE SHAFT

€ 30.00

7

92022112
ref: 7

WASHER,20.5X30X1,STEE

€ 6.00

8

92022144
ref: 8

SHIM-KICK SHAFT

€ 4.50

9

92022159
ref: 9

WASHER-THRUST,25MM

€ 5.50

10

92024033
ref: 10

WASHER,TOOTHED,25.5X3

€ 4.50

11

92024038
ref: 11

WASHER-LOCK

€ 4.00

12

92027289
ref: 12

COLLAR

€ 10.00

13

920281002
ref: 13

BUSHING,TOP DRIVE

€ 26.00

14

92033015
ref: 14

CIRCLIP

€ 2.50

15

92033026
ref: 15

CIRCLIP

€ 6.00

16

131281015
ref: 16

SHAFT-TRANSMISSION OU

€ 256.50

17

131291056
ref: 17

LOW GEAR,OUTPUT SHAFT

€ 61.00

18

131291172
ref: 18

2ND GEAR,OUTPUT,28T

€ 56.00

19

131291058
ref: 19

3RD GEAR,OUTPUT SHAFT

€ 62.00

20

131291059
ref: 20

4TH GEAR OUTPUT

€ 47.50

21

131291060
ref: 21

5TH GEAR,OUTPUT SHAFT

€ 67.50

22

131291061
ref: 22

TOP GEAR,OUTPUT SHAFT

€ 40.00

23

131441035
ref: 23

SPROCKET-OUTPUT,22T

€ 82.50

24

600A0500
ref: 24

BALL-STEEL,5/32

€ 0.50

25

920151254
ref: 25

NUT,20MM

€ 10.50

26

920221083
ref: 26

WASHER,SPLINED

€ 4.00

27

92022112
ref: 27

WASHER,20.5X30X1,STEE

€ 6.00

28

92022144
ref: 28

SHIM-KICK SHAFT

€ 4.50

29

92022159
ref: 29

WASHER-THRUST,25MM

€ 5.50

30

92024038
ref: 30

WASHER-LOCK

€ 4.00

31

92026079
ref: 31

WASHER,30X38X1

€ 6.00

32

92027288
ref: 32

COLLAR,25X32X23.5

€ 22.50

33

920281268
ref: 33

BUSHING,OUTPUT GEAR

€ 21.00

34

92033015
ref: 34

CIRCLIP

€ 2.50

35

92033026
ref: 35

CIRCLIP

€ 6.00

36

92055035
ref: 36

O RING

€ 3.00

37

92045031
ref: 37

BEARING-BALL,5205ANX4

€ 49.50

38

92046044
ref: 38

BEARING-NEEDLE,20R251

€ 23.00

39

920481001
ref: 39

RACE,OUTPUT AND DRIVE

€ 13.00

40

92050024
ref: 40

OIL SEAL SC325210

€ 5.00

41

920281177
ref: 41

BUSHING,2ND GEAR

€ 10.00
