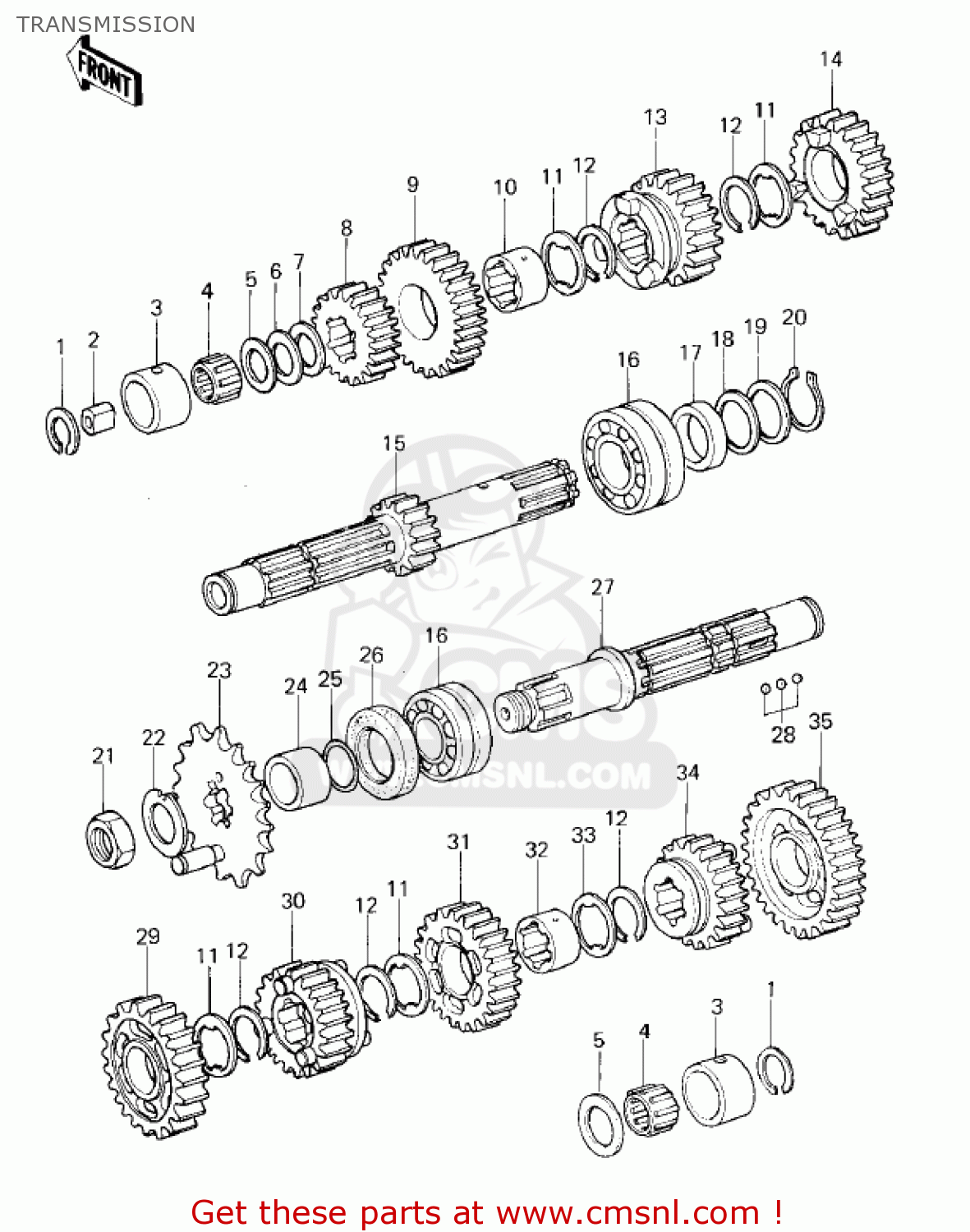

TRANSMISSION

ref

part #

description

quantity

1

92033015
ref: 1

CIRCLIP

€ 2.50

2

92028155
ref: 2

BUSHING,DRIVE SHAFT

€ 9.50

3

920481001
ref: 3

RACE,OUTPUT AND DRIVE

€ 13.00

4

92046044
ref: 4

BEARING-NEEDLE,20R251

€ 23.00

5

92022112
ref: 5

WASHER,20.5X30X1,STEE

€ 6.00

6

92022144
ref: 6

SHIM-KICK SHAFT

€ 4.50

7

92022113
ref: 7

WASHER,20.5X30X1

€ 6.00

8

13130038
ref: 8

2ND GEAR,DRIVE SHAFT

€ 44.00

9

131291006
ref: 9

TOP GEAR DRIVESHAFT

€ 60.00

10

920281552
ref: 10

BUSHING,INPUT TOP GEA

€ 17.50

11

92024038
ref: 11

WASHER-LOCK

€ 4.00

12

92033026
ref: 12

CIRCLIP

€ 6.00

13

131291002
ref: 13

GEAR,DRIVESHAFT,3RD

€ 79.50

14

131291004
ref: 14

GEAR,DRIVESHAFT,4TH

€ 49.00

15

131271001
ref: 15

DRIVESHAFT

€ 88.50

16

92045031
ref: 16

BEARING-BALL,5205ANX4

€ 49.50

17

92027289
ref: 17

COLLAR

€ 10.00

18

92022225
ref: 18

WASHER-THRUST

€ 3.50

19

92022302
ref: 19

WASHER,CLUTCH THRUST

€ 3.50

20

480J2400
ref: 20

CIRCLIP-TYPE-C,24MM

€ 3.50

21

92016028
ref: 21

NUT

€ 9.50

22

92024044
ref: 22

WASHER,CLAW,20.5X36X1

€ 8.00

23

131441003
ref: 23

ENGINE SPROCKET,15T

€ 28.00

24

92027288
ref: 24

COLLAR,25X32X23.5

€ 22.50

25

92055035
ref: 25

O RING

€ 3.00

26

92050024
ref: 26

OIL SEAL SC325210

€ 5.00

27

131281002
ref: 27

SHAFT,OUTPUT

€ 88.50

28

600A0500
ref: 28

BALL-STEEL,5/32

€ 0.50

29

13131045
ref: 29

2ND GEAR,OUTPUT SHAFT

€ 38.50

30

131291007
ref: 30

TOP GEAR,OUTPUT SHAFT

€ 51.50

31

131291003
ref: 31

GEAR,OUTPUT SHAFT,3RD

€ 60.00

32

920281002
ref: 32

BUSHING,TOP DRIVE

€ 26.00

33

92024033
ref: 33

WASHER,TOOTHED,25.5X3

€ 4.50

34

131291005
ref: 34

GEAR,OUTPUT SHAFT,4TH

€ 48.00

35

131291001
ref: 35

LOW GEAR,OUTPUT SHAFT

€ 43.00
