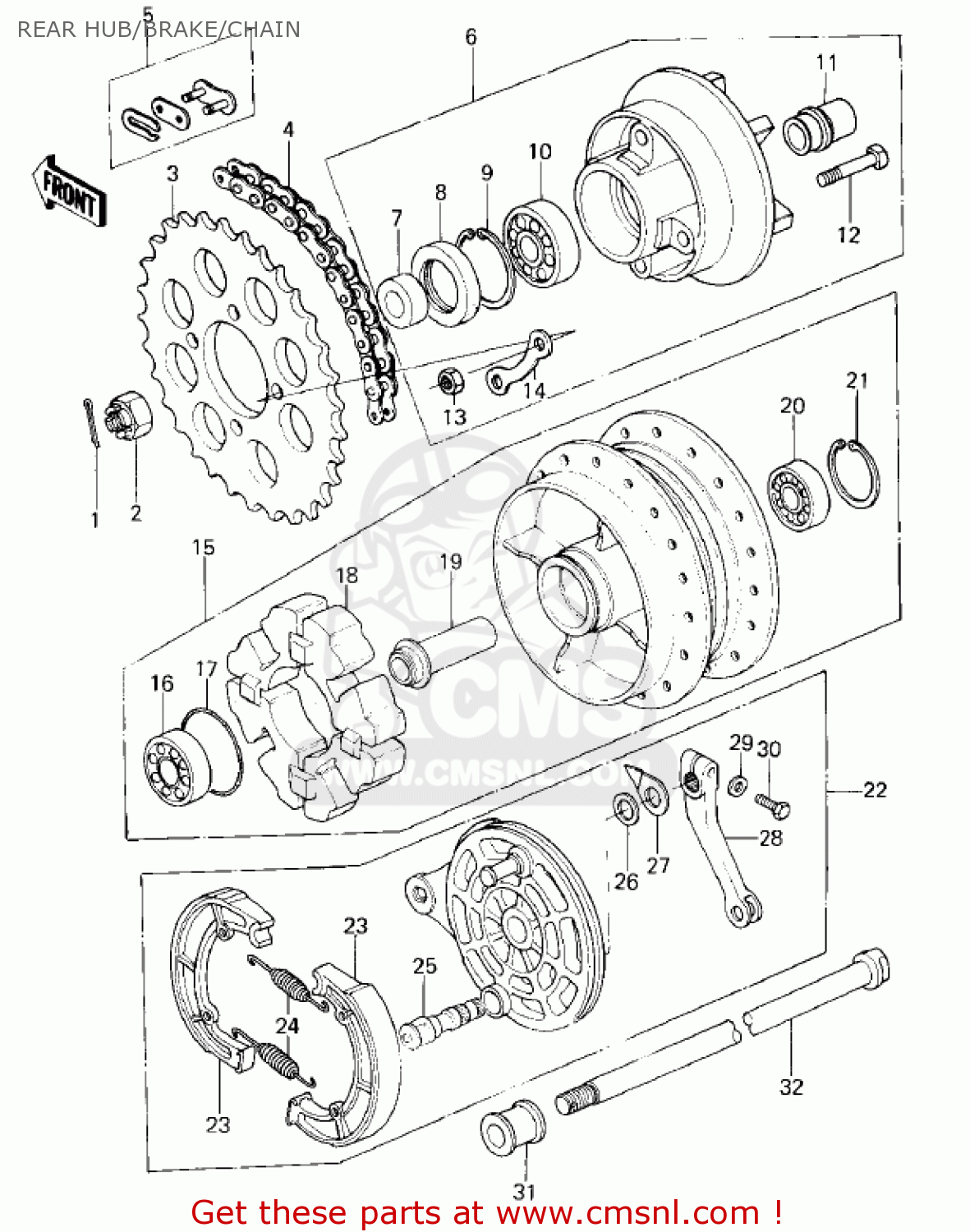

REAR HUB/BRAKE/CHAIN

ref

part #

description

quantity

1

550D4035
ref: 1

PIN-COTTER,4.0X35

€ 1.00

2

92015055
ref: 2

NUT,16MM

€ 8.00

3

42041145
ref: 3

REAR SPROCKET,45T

€ 82.00

4

92057092
ref: 4

CHAIN ASY,DRIVE,100L

€ 45.00

5

92058008
ref: 5

JOINT-CHAIN

€ 4.00

6

420331002
ref: 6

COUPLING ASSY,REAR

€ 147.00

7

920271014
ref: 7

COLLAR,17X35X14.5

€ 13.50

8

92052006
ref: 8

OIL SEAL WTC35527

€ 6.50

9

920331043
ref: 9

RING,SNAP,56.2M/M

€ 6.00

10

601B6205
ref: 10

BEARING-BALL,#6205C3

€ 14.00

11

420361002
ref: 11

SLEEVE,COUPLING

€ 27.50

12

92003156
ref: 12

BOLT,RR SPROCKET FIT

€ 6.50

13

314B1000
ref: 13

NUT,10MM

€ 0.50

14

92088005
ref: 14

WASHER,SPROCKET LOCK

€ 4.00

15

410341005
ref: 15

DRUM ASSY,REAR BRAKE

€ 209.50

16

601B6303
ref: 16

BEARING-BALL,#6303C3

€ 24.00

17

671B2560
ref: 17

O RING,60MM

€ 1.50

18

920751008
ref: 18

DAMPER,REAR HUB SHOCK

€ 53.50

19

920271013
ref: 19

COLLAR,REAR HUB BRG

€ 15.50

20

601B6303U
ref: 20

BEARING-BALL

€ 26.00

21

920331042
ref: 21

CIRCLIP,47M/M

€ 4.00

22

410351089
ref: 22

PANEL ASSY,REAR BRAKE

€ 239.50

23

410481069
ref: 23

SHOE-BRAKE (NAS)

€ 26.00

24

42020004
ref: 24

SPRING-BRAKE SHOE

€ 5.50

25

410501001
ref: 25

CAM-BRAKE

€ 24.00

26

41051003
ref: 26

DUST SHIELD-BRAKE CAM

€ 2.50

27

41085004
ref: 27

INDICATOR,BRAKE SHOE

€ 10.00

28

410531001
ref: 28

LEVER,BRAKE CAM

€ 27.50

29

410B0800
ref: 29

WASHER-PLAIN-SMALL,8M

€ 0.50

30

114G0828
ref: 30

BOLT-SMALL,8X28

€ 2.50

31

920271015
ref: 31

COLLAR,REAR AXLE,R.H.

€ 8.00

32

410681004
ref: 32

AXLE,REAR

€ 29.50

all assemblies
