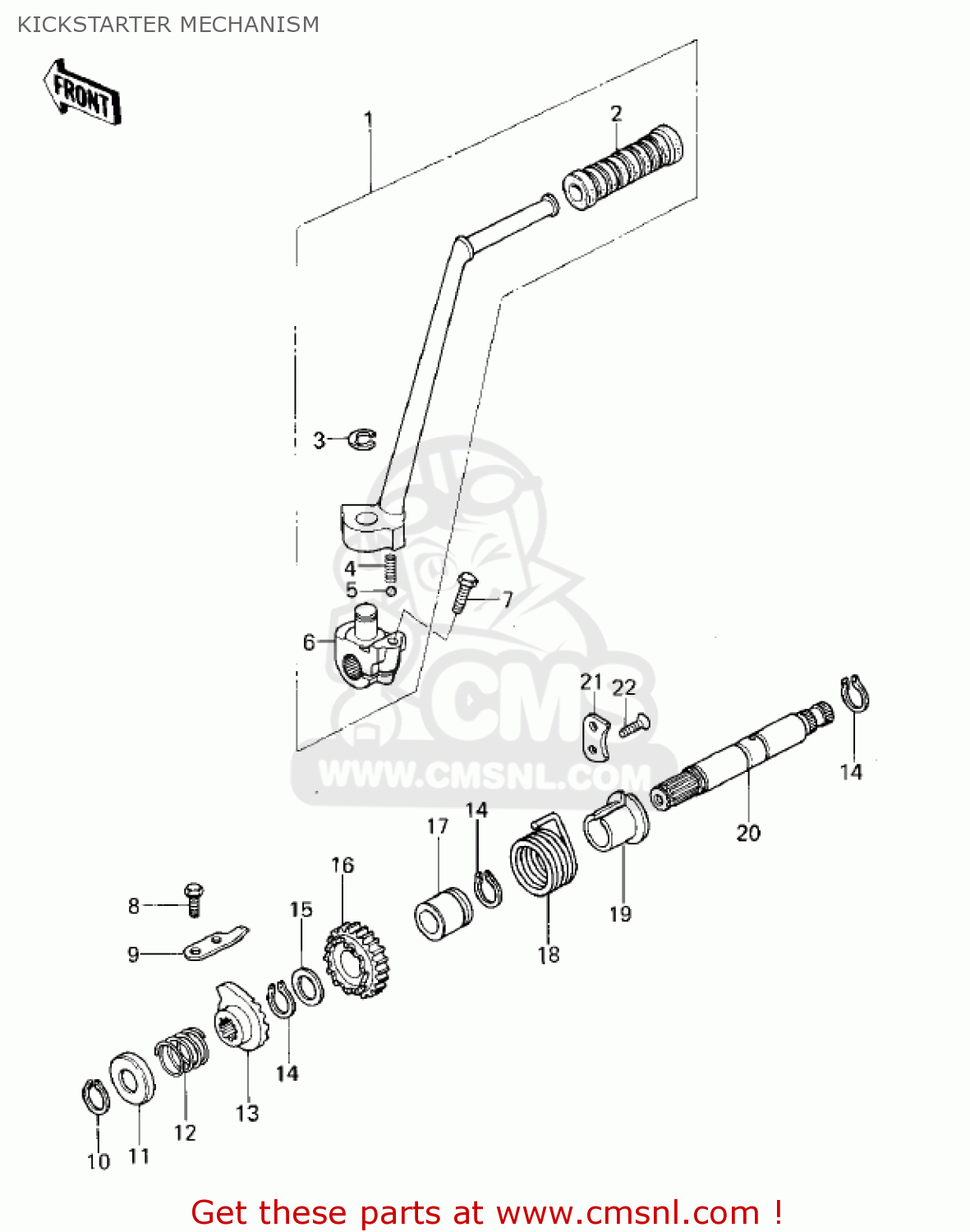

KICKSTARTER MECHANISM

ref

part #

description

quantity

1

130641002
ref: 1

PEDAL ASSY,KICK

€ 181.50

2

13063004
ref: 2

DAMPER,KICK PEDAL

€ 6.50

3

482K9000
ref: 3

CIRCLIP-TYPE-E,9MM

€ 2.50

4

92081020
ref: 4

SPRING-KICK PEDAL

€ 2.50

5

600A0800
ref: 5

BALL-STEEL,1/4

€ 0.50

6

130611001
ref: 6

BOSS,KICK PEDAL

€ 28.50

7

920011577
ref: 7

BOLT,FLANGED,8X35

€ 2.50

8

112G0614
ref: 8

BOLT-UPSET,6X14

€ 2.50

9

13072012
ref: 9

STOPPER,KICKSTARTER

€ 7.00

10

480J1900
ref: 10

CIRCLIP-TYPE-C,19MM

€ 1.00

11

92102008
ref: 11

CAP-KICKSTARTER

€ 4.00

12

92081104
ref: 12

SPRING-RATCHET

€ 6.50

13

13078011
ref: 13

RATCHET

€ 58.50

14

480J2000
ref: 14

CIRCLIP-TYPE-C,20MM

€ 1.00

15

92022112
ref: 15

WASHER,20.5X30X1,STEE

€ 6.00

16

590511002
ref: 16

KICK GEAR,23T

€ 25.50

17

92028175
ref: 17

BUSHING,KICK SHAFT

€ 12.50

18

92082006
ref: 18

SPRING,KICK RETURN

€ 17.00

19

13070009
ref: 19

GUIDE,KICK SPRING

€ 8.00

20

130661001
ref: 20

SHAFT,KICK

€ 51.00

21

13169007
ref: 21

PLATE-DRUM LEV POSTON

€ 9.00

22

221B0616
ref: 22

SCREW-CNTSNK HD,6X16

€ 0.50
