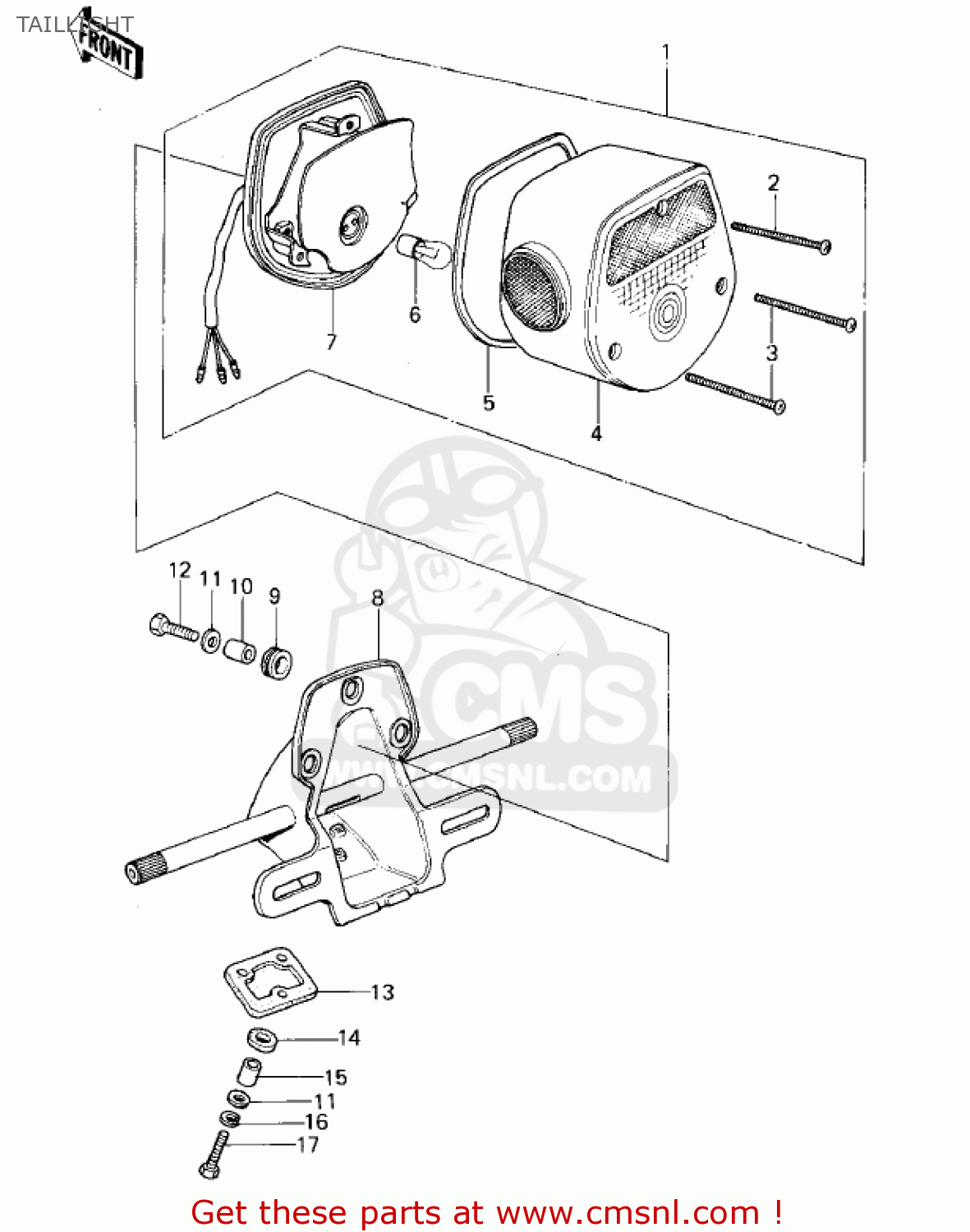

TAILLIGHT

ref

part #

description

quantity

1

230251031
ref: 1

TAIL LAMP

€ 91.00

2

220R0455
ref: 2

SCREW-PAN-CROS

€ 3.50

3

220E0450
ref: 3

SCREW-PAN HEAD,4X50

€ 3.00

4

23026028
ref: 4

LENS,TAIL LAMP,W/REFL

€ 48.50

5

23028019
ref: 5

GASKET,TAIL LAMP LENS (NAS)

€ 5.50

6

92069059
ref: 6

BULB,12V 32/3CP

€ 5.50

7

230271019
ref: 7

TAIL LAMP BODY,COMPLETE

€ 49.00

8

230361002
ref: 8

TAIL LAMP BRACKET

€ 81.00

9

92075076
ref: 9

DAMPER

€ 3.00

10

92027129
ref: 10

COLLAR,6.8X10X8.5

€ 3.00

11

92022125
ref: 11

WASHER,6.5X20X1.6

€ 1.00

12

112G0620
ref: 12

BOLT 6X20

€ 1.00

13

35039004
ref: 13

DAMPER,TAIL LAMP

€ 12.00

14

92075121
ref: 14

DAMPER,FENDER

€ 2.50

15

92027156
ref: 15

COLLAR-BATTERY CASE

€ 3.00

16

461F0600
ref: 16

WASHER-SPRING,6MM

€ 0.50

17

112G0625
ref: 17

BOLT-UPSET,6X25

€ 4.00
