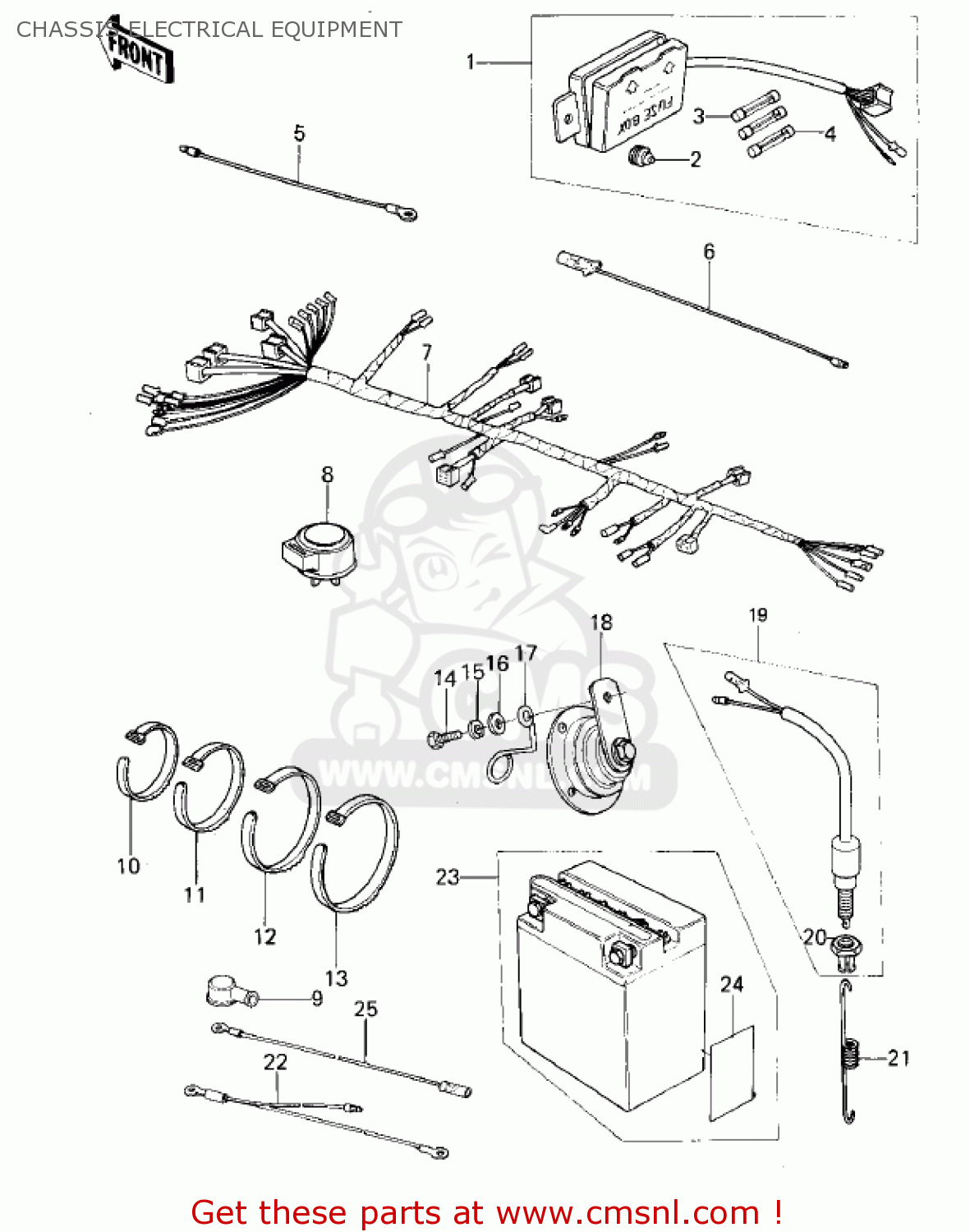

CHASSIS ELECTRICAL EQUIPMENT

ref

part #

description

quantity

1

26004035
ref: 1

FUSE-ASSY

€ 53.50

2

92075279
ref: 2

DAMPER,FUSE

€ 3.50

3

26006005
ref: 3

FUSE 20A

€ 3.50

4

26006003
ref: 4

FUSE 10A

€ 3.00

5

26011063
ref: 5

WIRE-LEAD,L=185

€ 5.00

6

260111021
ref: 6

WIRE,LEAD,REAR SIGNAL

€ 1.50

7

260011128
ref: 7

HARNESS,MAIN

€ 227.00

8

27002011
ref: 8

RELAY-ASSY,TURN SIGNA

€ 69.50

9

92073001
ref: 9

CAP-BAT TERMINAL RUBB

€ 8.50

10

92072067
ref: 10

BAND,L=95

€ 2.50

11

92072030
ref: 11

BAND,SHORT

€ 3.00

12

92072031
ref: 12

BAND,MIDDLE

€ 3.00

13

92072032
ref: 13

BAND,LONG

€ 3.00

14

115G0820
ref: 14

BOLT,8X20

€ 2.00

15

461F0800
ref: 15

WASHER-SPRING,8MM

€ 0.50

16

410B0800
ref: 16

WASHER-PLAIN-SMALL,8M

€ 0.50

17

92037155
ref: 17

CLAMP,CABLE

€ 6.50

18

270031005
ref: 18

HORN

€ 44.00

19

27010025
ref: 19

SWITCH,BRAKE LAMP

€ 18.50

20

27037001
ref: 20

NUT,BRAKE LAMP SWICH

€ 18.50

21

27011015
ref: 21

SPRING,BRAKE LAMP SW

€ 6.50

22

260111024
ref: 22

BATTERY WIRE LEAD,GROUND

€ 3.00

23

K26012022
ref: 23

BATTERY,YUA,12N5.5-4A

€ 115.50

24

560401036
ref: 24

WARNING, BATTERY

€ 2.00

25

260111023
ref: 25

BATTERY WIRE LEAD

€ 5.50

all assemblies
