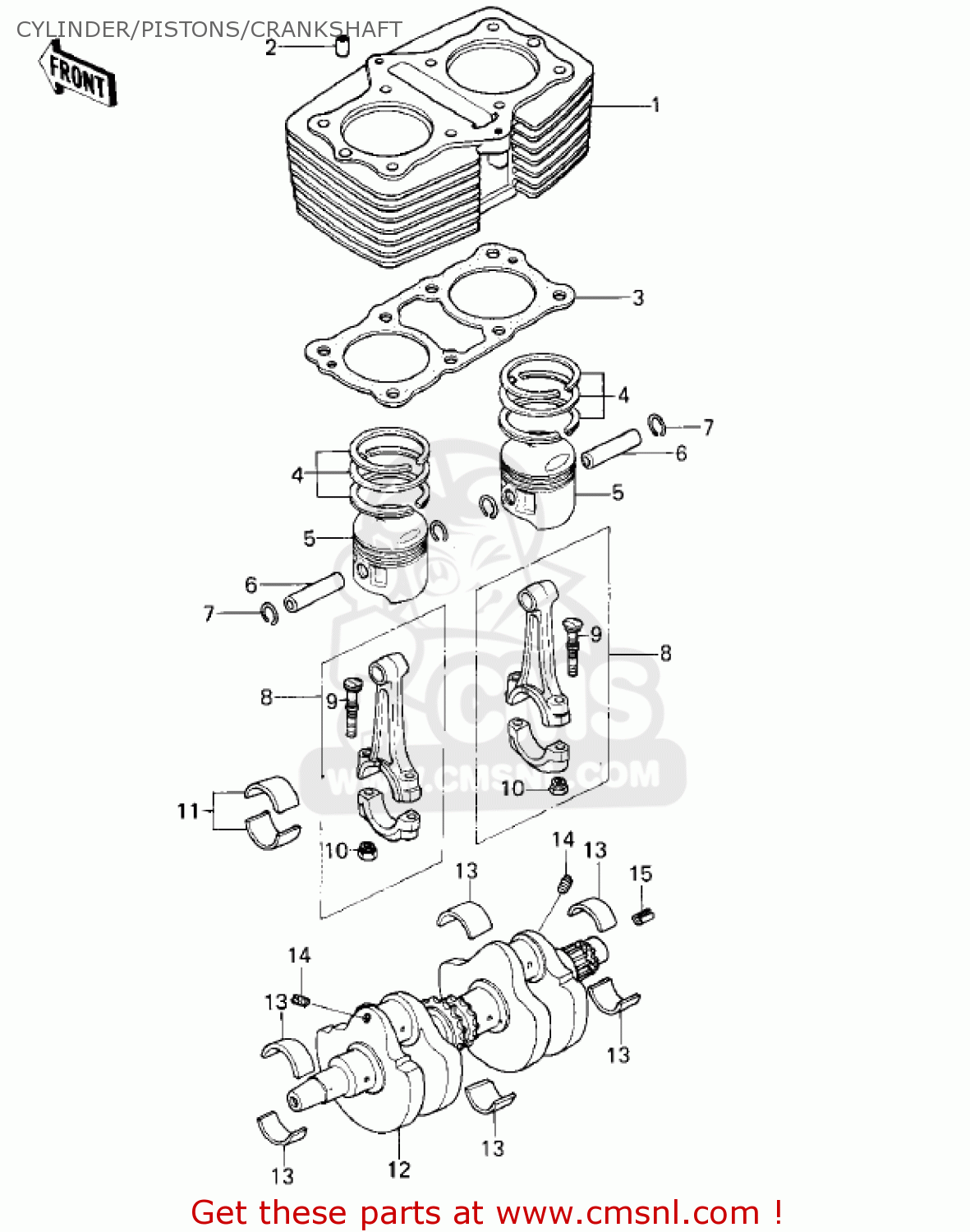

CYLINDER/PISTONS/CRANKSHAFT

ref

part #

description

quantity

1

110051002
ref: 1

CYLINDER

€ 577.50

2

920431037
ref: 2

PIN,DOWEL,10X8.2X14

€ 0.50

3

110091176
ref: 3

GASKET,CYLINDER BASE (MCA)

€ 14.00

4

130085019
ref: 4

RING-SET-PISTON,STD

€ 56.00

4

130255010
ref: 4
OPTION

RING-SET-PISTON L,O/S

€ 70.50

4

130245010
ref: 4
OPTION

RING-SET-PISTON LL,O/

€ 28.00

5

130011001
ref: 5

PISTON-ENGINE,STD

€ 53.50

5

130291006
ref: 5
OPTION

PISTON-ENGINE-L,O/S 0

€ 67.50

5

130271008
ref: 5
OPTION

PISTON-ENGINE-LL,O/S

€ 67.50

6

130021001
ref: 6

PIN-PISTON

€ 4.00

7

92036005
ref: 7

CIRCLIP-PISTON PIN

€ 2.50

8

132511008JJ
ref: 8
"G" MARK

CONNECTING ROD ASSY,J

€ 121.00

8

132511008JJ
ref: 8
"H" MARK

CONNECTING ROD ASSY,J

€ 121.00

8

132511008JJ
ref: 8
"I" MARK

CONNECTING ROD ASSY,J

€ 121.00

9

920011793
ref: 9

BOLT, CONNECTING ROD

€ 5.50

10

92016060
ref: 10

NUT, CONNECTING ROD

€ 3.50

11

13034050
ref: 11
BLUE

METAL,CONNECT ROD,BRG

€ 14.50

11

13034051
ref: 11
BLACK

METAL,CONNECTING ROD,

€ 18.00

11

13034052
ref: 11
BROWN

METAL,CONNECTING ROD,

€ 14.50

12

130371034
ref: 12

CRANK SHAFT ASSY

€ 681.00

13

920281102
ref: 13

BUSHING,CRANKSHAFT,BR

€ 11.00

14

291H0608
ref: 14

SCREW,SLOTTED,6X8

€ 1.50

15

555A0408
ref: 15

PIN-SPRING,4X8

€ 2.50
