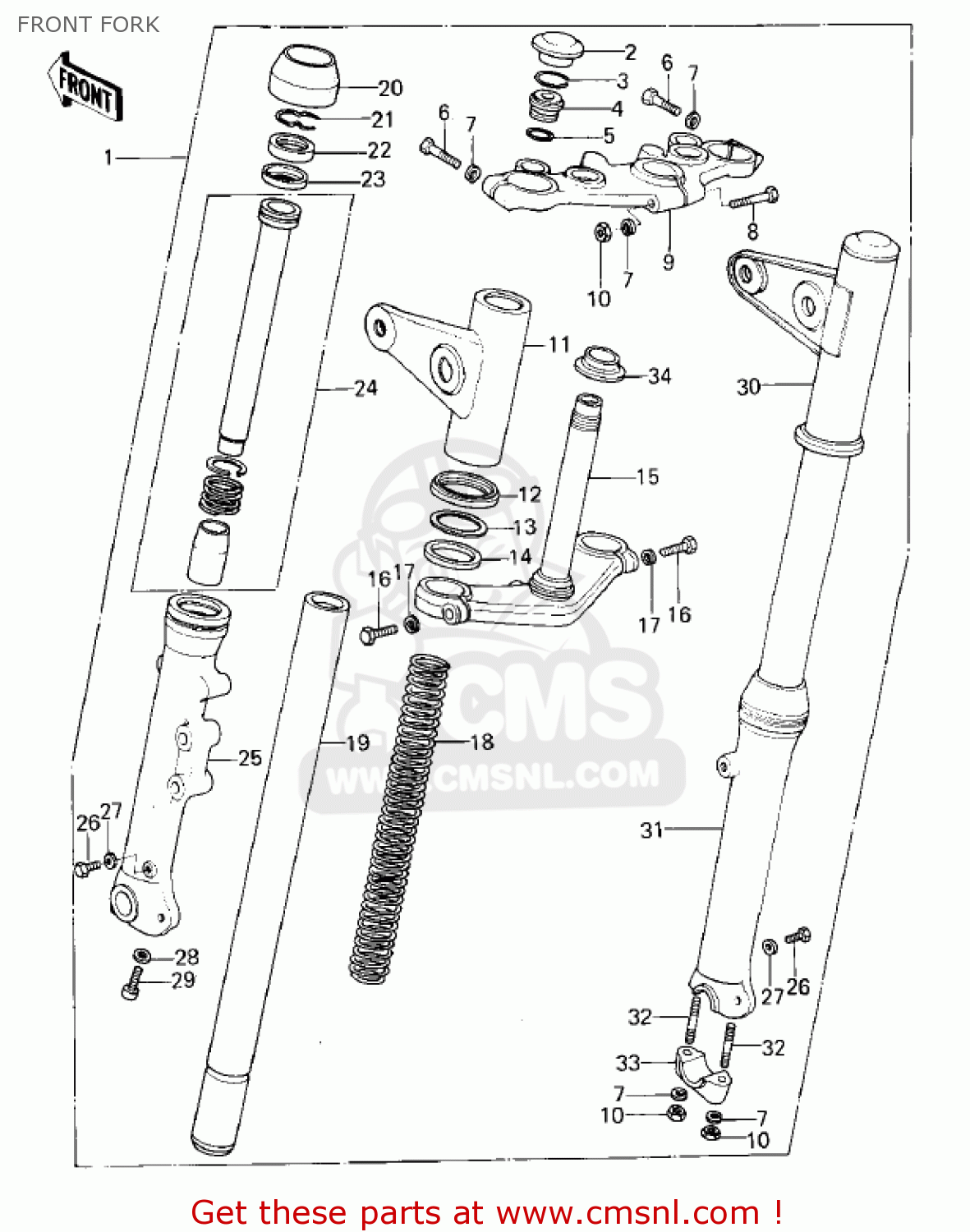

FRONT FORK

ref

part #

description

quantity

1

440011018
ref: 1

FRONT FORK

€ 700.50

2

110121021
ref: 2

CAP,RUBBER,FORK TOP

€ 6.00

3

44044023
ref: 3

CIRCLIP

€ 3.50

4

44029022
ref: 4

GUIDE, FORK SPRING

€ 8.00

5

44046025
ref: 5

'O' RING, FORK

€ 4.00

6

920011063
ref: 6

BOLT,HEX HEAD,8X40

€ 6.50

7

461F0800
ref: 7

WASHER-SPRING,8MM

€ 0.50

8

920011064
ref: 8

BOLT,HEX HEAD,8X55

€ 6.00

9

440391007
ref: 9

HEAD,STEERING STEM

€ 118.00

10

92017013
ref: 10

NUT,LOCK,8MM

€ 5.50

11

440331009
ref: 11

FORK COVER,LH

€ 60.00

12

131691102
ref: 12

FORK COVER GUIDE

€ 4.00

13

92022297
ref: 13

WASHER,FORK COVER

€ 6.00

14

92075240
ref: 14

DAMPER RUBBER,FK COV

€ 3.00

15

440371002
ref: 15

STEM,STEERING

€ 258.50

16

920011252
ref: 16

BOLT,HEX HEAD,10X35

€ 3.50

17

461F1000
ref: 17

WASHER-SPRING,10MM

€ 0.50

18

440261011
ref: 18

SPRING,FORK INNER

€ 44.50

19

440131010
ref: 19

TUBE,FORK INNER

€ 102.00

20

920931063
ref: 20

SEAL,FORK

€ 19.50

21

44043057
ref: 21

RING,OIL SEAL STOPER

€ 4.00

22

920491077
ref: 22

OIL SEAL,FORK

€ 13.50

23

920261005
ref: 23

SPACER,FORK

€ 8.50

24

440221028
ref: 24

CYLINDER,FORK

€ 71.50

25

440051011
ref: 25

FORK OUTER TUBE,LH

€ 109.00

26

110B0608
ref: 26

BOLT-HEX HEAD,6X8

€ 0.50

26

44045047
ref: 26

GASKET,DRAIN PLUG (NAS)

€ 6.00

27

44045047
ref: 27

GASKET,DRAIN PLUG (NAS)

€ 6.00

28

44045051
ref: 28

GASKET,FORK CYLINDER (NAS)

€ 4.00

29

44041078
ref: 29

BOLT, FORK CYLINDER

€ 6.50

30

440331010
ref: 30

FORK COVER,RH

€ 63.00

32

440061011
ref: 32

FORK OUTER TUBE,RH

€ 128.50

33

440631003
ref: 33

FORK AXLE HOLDER

€ 12.00

34

92047006
ref: 34

CONE-STRNG STEM

€ 11.00
