SWING ARM/SHOCK ABSORBERS ('76

KZ400 1974 USA CANADA / MPH KPH

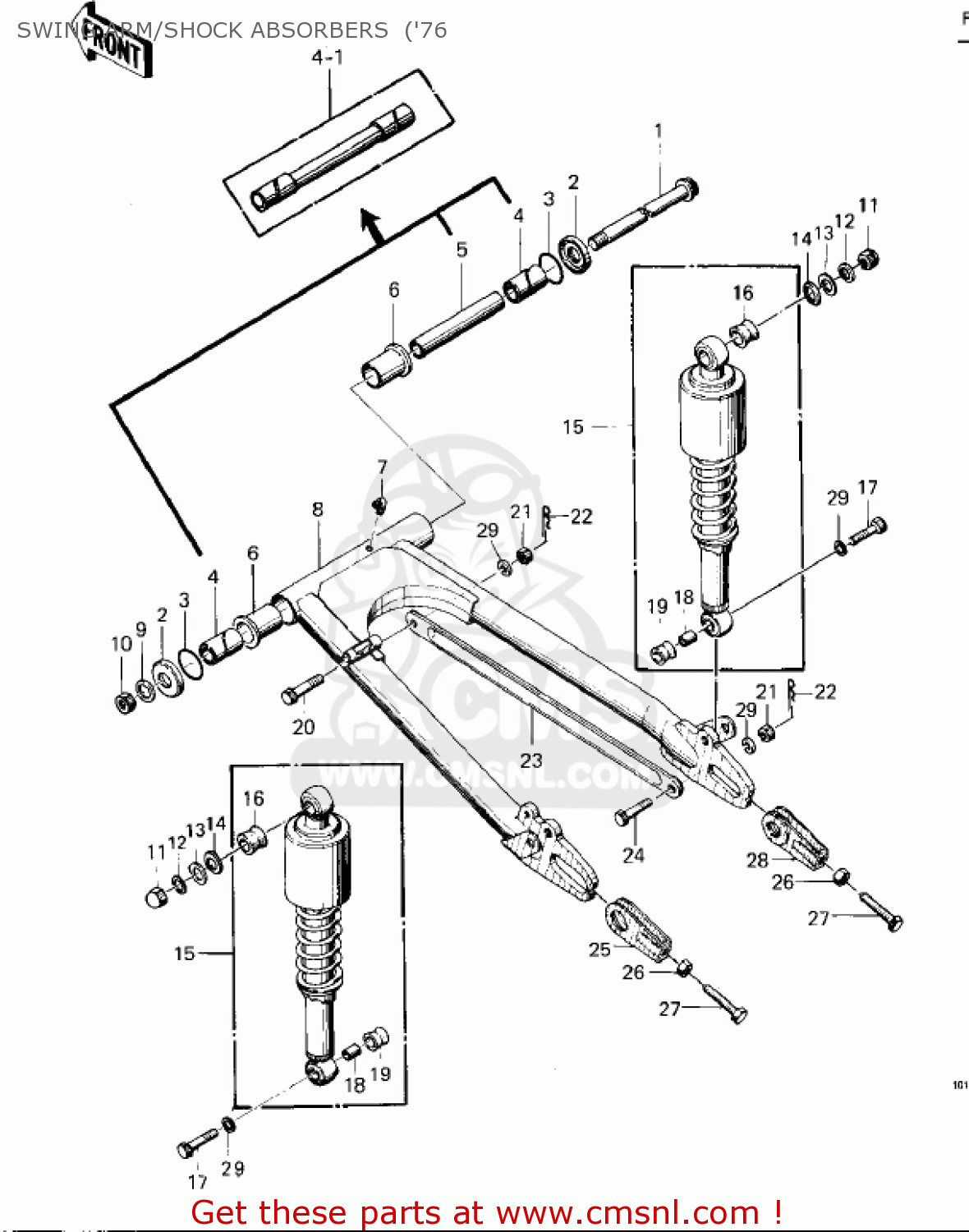

Swing arm/shock absorbers ('76 diagram KZ400 1974 USA CANADA / MPH KPH

SWING ARM/SHOCK ABSORBERS ('76 KZ400 1974 USA CANADA / MPH KPH

SWING ARM/SHOCK ABSORBERS ('76 KZ400 1974 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

1

33032046
ref: 1

SHAFT-SWING ARM

€ 43.00

2

33035004
ref: 2

CAP-SWING ARM

€ 2.00

3

671B2530
ref: 3

O RING,30MM

€ 3.00

4

33034013
ref: 4
KZ400-D3

SLEEVE-SWING ARM,SHRT

€ 20.50

4-1

33034028
ref: 4-1
KZ400-D4

SLEEVE, SWING ARM

€ 33.50

5

33036006
ref: 5
KZ400-D3

COLLAR,SWING ARM

€ 2.50

6

33033009
ref: 6

BUSHING,SWING ARM

€ 57.00

7

92005002
ref: 7

GREASE NIPPLE

€ 4.00

8

33001073
ref: 8

ARM,SWING

€ 102.50

9

92022085
ref: 9

WASHER,15.3X24X1.2

€ 2.50

10

92019011
ref: 10

NUT,LOCK,14MM

€ 6.00

11

92020003
ref: 11

NUT-SHOCK ABSORBER

€ 4.00

12

461F1000
ref: 12

WASHER-SPRING,10MM

€ 0.50

13

411B1000
ref: 13
O.D.=22

WASHER-PLAIN,10MM

€ 0.50

14

92022044
ref: 14
KZ400-D3

WASHER,10.5X26X2.3

€ 2.50

14

92022176
ref: 14
KZ400-D4

WASHER,10X22X3.2

€ 3.00

15

45014109
ref: 15

SHOCK ABSORBER,REAR

€ 120.50

16

45017015
ref: 16

BUSHING,SHCK ABS RUB

€ 6.50

17

113N1035
ref: 17

BOLT-HEX HEAD,10X35

€ 6.00

18

45016008
ref: 18

BUSHING,SHOCK ABSORB

€ 6.50

19

45017012
ref: 19

BUSHING A,SHOK AB RUB

€ 10.50

20

92003096
ref: 20

BOLT-TRQ LINK 10X29

€ 7.00

21

314B1000
ref: 21
KZ400-D3

NUT,10MM

€ 0.50

21

315B1000
ref: 21
KZ400-D4

NUT,10MM

€ 0.50

22

554A0800
ref: 22

PIN-SNAP,8MM

€ 1.00

23

43007016
ref: 23

ROD-TORQUE,RR

€ 14.00

24

92003034
ref: 24

BOLT-HEX HEAD,10MM

€ 9.00

25

33040062
ref: 25
D=24.8

ADJUSTER,CHAIN,L.H

€ 16.50

26

312B0800
ref: 26

NUT,8MM

€ 0.50

27

920011399
ref: 27

BOLT,8X50

€ 6.00

28

33040043
ref: 28
D=17.8

ADJUSTER-CHAIN

€ 20.50

29

461F1000
ref: 29
KZ400-D4

WASHER-SPRING,10MM

€ 0.50
