CHASSIS ELECTRICAL EQUIPMENT ('

KZ400 1974 USA CANADA / MPH KPH

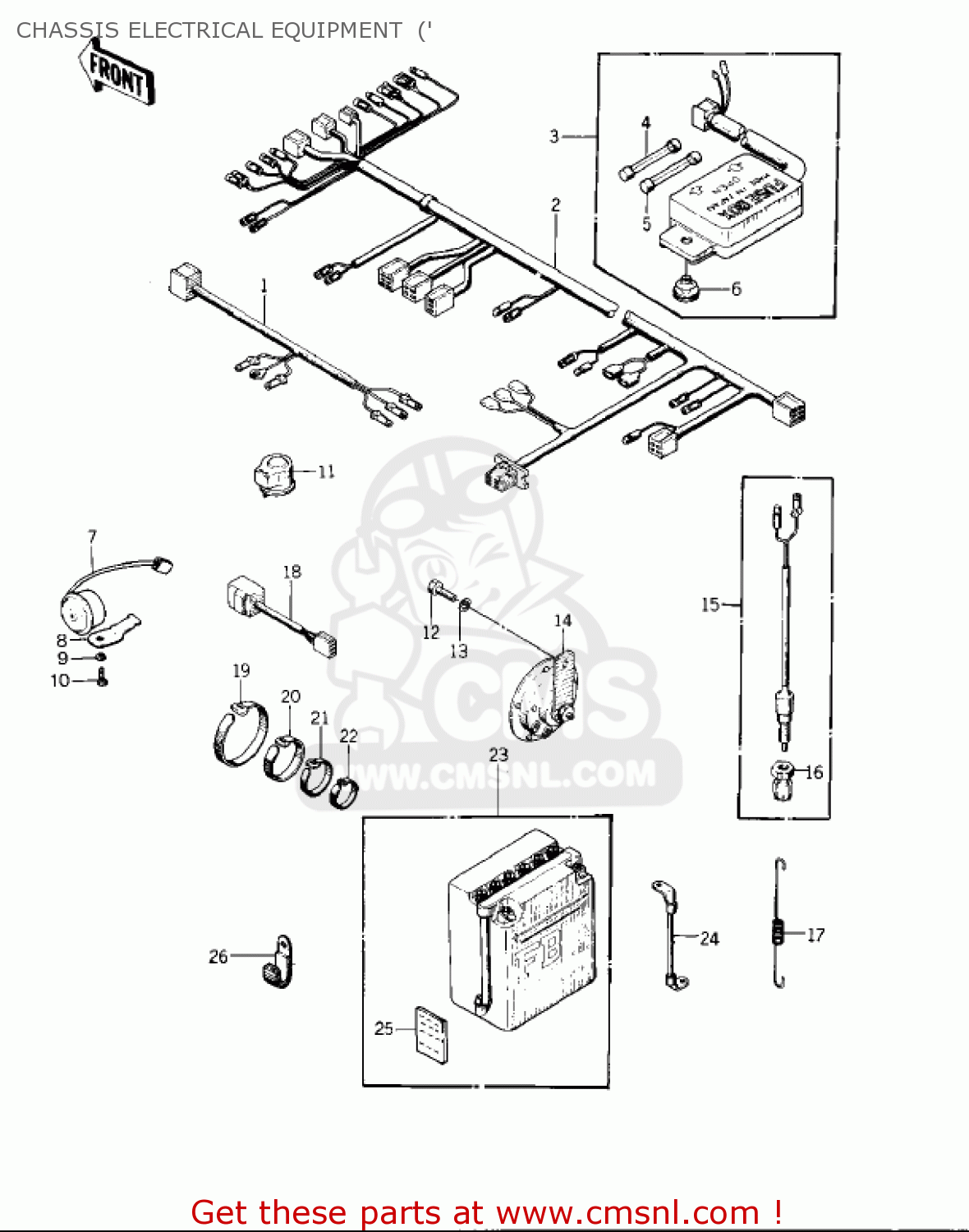

Chassis electrical equipment (' diagram KZ400 1974 USA CANADA / MPH KPH

CHASSIS ELECTRICAL EQUIPMENT (' KZ400 1974 USA CANADA / MPH KPH

CHASSIS ELECTRICAL EQUIPMENT (' KZ400 1974 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

1

26002049
ref: 1

WIRING HARNESS,REAR

€ 24.50

2

26001136
ref: 2

WIRING HARNESS,MAIN

€ 194.50

3

26004035
ref: 3

FUSE-ASSY

€ 53.50

4

26006005
ref: 4
20A

FUSE 20A

€ 3.50

5

26006003
ref: 5
10A

FUSE 10A

€ 3.00

6

92075279
ref: 6

DAMPER,FUSE

€ 3.50

7

27040001
ref: 7

ALARM,TURN SIGNAL

€ 26.00

8

27023004
ref: 8
KZ400-D3

BRACKET,ALARM

€ 2.00

9

461F0600
ref: 9

WASHER-SPRING,6MM

€ 0.50

10

220B0610
ref: 10

SCREW-PAN HEAD,6X10

€ 2.00

11

27002011
ref: 11

RELAY-ASSY,TURN SIGNA

€ 69.50

12

115G0820
ref: 12

BOLT,8X20

€ 2.00

13

461F0800
ref: 13

WASHER-SPRING,8MM

€ 0.50

14

270031006
ref: 14

HORN

€ 99.00

15

27010025
ref: 15

SWITCH,BRAKE LAMP

€ 18.50

16

27037001
ref: 16

NUT,BRAKE LAMP SWICH

€ 18.50

17

27011015
ref: 17

SPRING,BRAKE LAMP SW

€ 6.50

18

28019002
ref: 18

SWITCH,BK LIGHT IND

€ 49.50

19

92072032
ref: 19
L=218 MM

BAND,LONG

€ 3.00

20

92072031
ref: 20
L=149 MM

BAND,MIDDLE

€ 3.00

21

92072030
ref: 21
L=123 MM

BAND,SHORT

€ 3.00

22

92072067
ref: 22
L=95 MM

BAND,L=95

€ 2.50

23

26012045
ref: 23
KZ400-D3

BATTERY, 12V 12AH

€ 93.00

23

26012045
ref: 23
KZ400-D4

BATTERY, 12V 12AH

€ 93.00

24

26010044
ref: 24

WIRE,LEAD

€ 13.00

25

56022057
ref: 25

UNAVAILABLE IN PRICE BOOK

€ 0.00

26

21126008
ref: 26

CLAMP,WIRING HARNESS

€ 3.00
