CHASSIS ELECTRICAL EQUIPMENT ('7

KZ400 1974 USA CANADA / MPH KPH

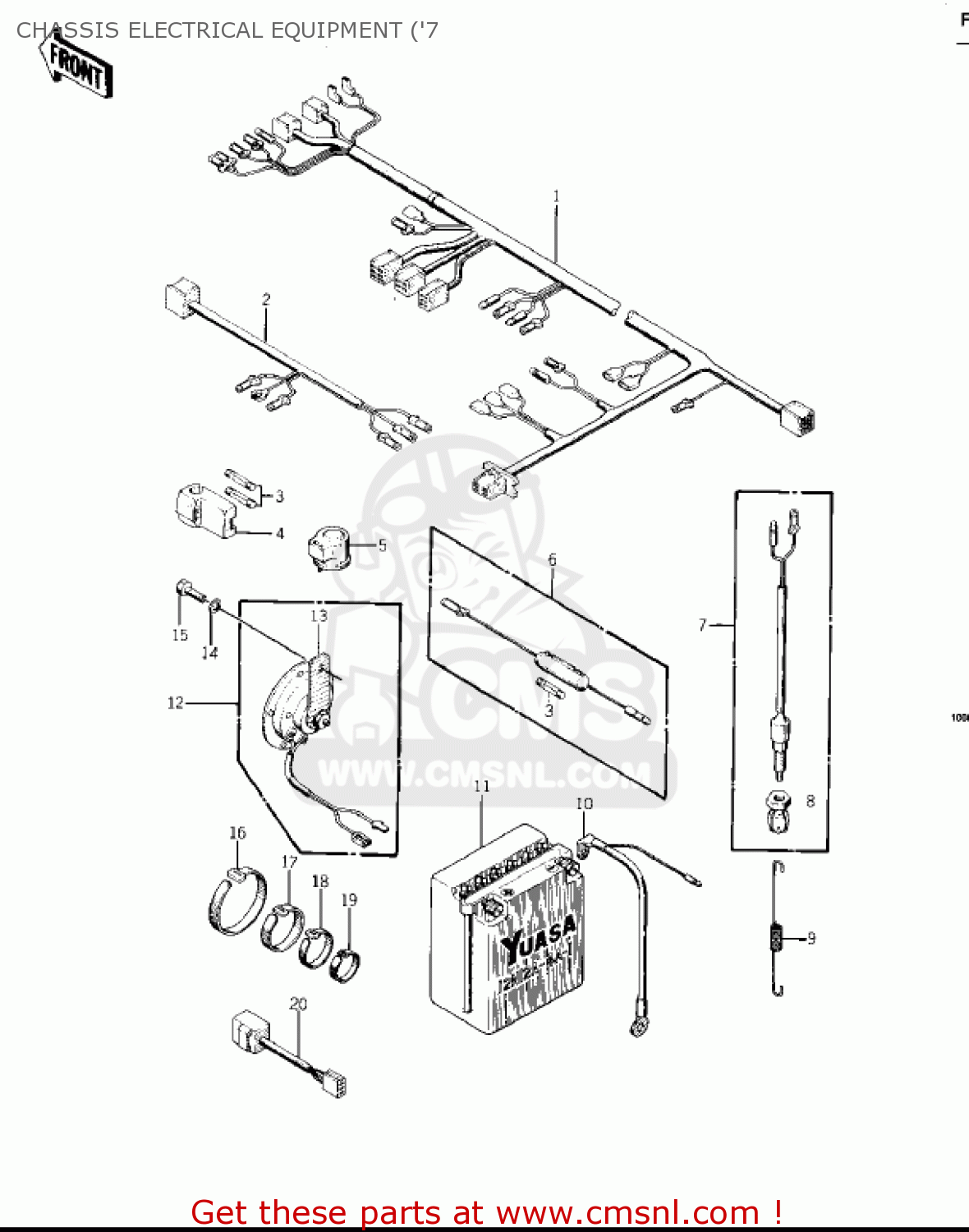

Chassis electrical equipment ('7 diagram KZ400 1974 USA CANADA / MPH KPH

CHASSIS ELECTRICAL EQUIPMENT ('7 KZ400 1974 USA CANADA / MPH KPH

CHASSIS ELECTRICAL EQUIPMENT ('7 KZ400 1974 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

1

26001119
ref: 1

WIRING HARNESS,MAIN

€ 158.50

2

26002049
ref: 2

WIRING HARNESS,REAR

€ 24.50

3

26006005
ref: 3
20A

FUSE 20A

€ 3.50

4

26016002
ref: 4

HOLDER-SPARE FUSE

€ 5.50

5

27002011
ref: 5

RELAY-ASSY,TURN SIGNA

€ 69.50

6

26004024
ref: 6

FUSE ASSY,20A

€ 15.50

7

27010025
ref: 7

SWITCH,BRAKE LAMP

€ 18.50

8

27037001
ref: 8

NUT,BRAKE LAMP SWICH

€ 18.50

9

27011015
ref: 9

SPRING,BRAKE LAMP SW

€ 6.50

10

26010036
ref: 10

WIRE,BATTERY LEAD

€ 9.00

11

26012045
ref: 11

BATTERY, 12V 12AH

€ 93.00

12

27003053
ref: 12

HORN

€ 99.00

13

27038002
ref: 13

BRACKET,HORN

€ 1.50

14

461F0800
ref: 14

WASHER-SPRING,8MM

€ 0.50

15

115B0814
ref: 15

BOLT SMALL UPSET 8X14

€ 1.00

16

92072032
ref: 16

BAND,LONG

€ 3.00

17

92072031
ref: 17

BAND,MIDDLE

€ 3.00

18

92072030
ref: 18

BAND,SHORT

€ 3.00

19

92072067
ref: 19

BAND,L=95

€ 2.50

20

28019002
ref: 20

SWITCH,BK LIGHT IND

€ 49.50
