CLUTCH ('74 -'75 KZ400/KZ400D)

KZ400 1974 USA CANADA / MPH KPH

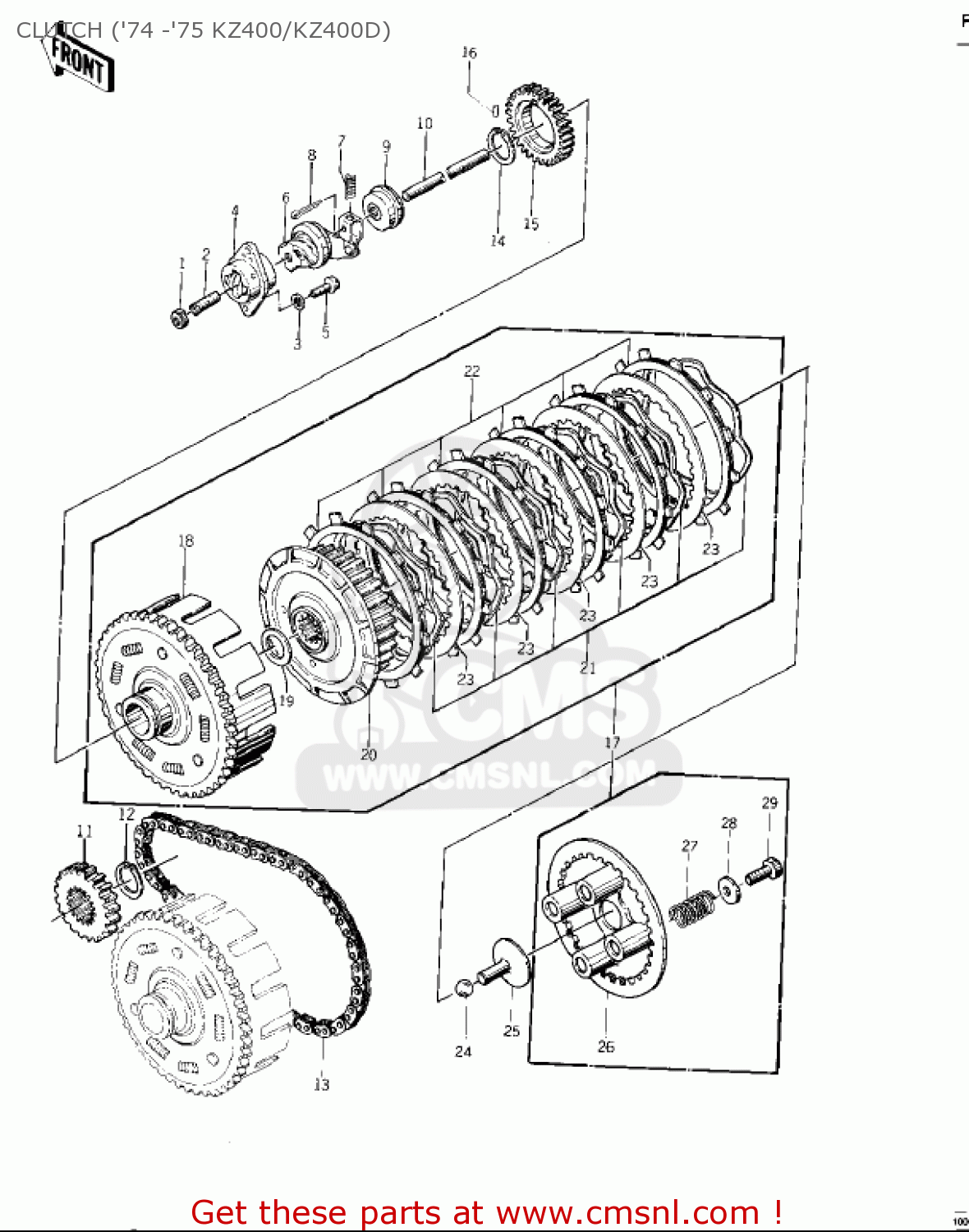

Clutch ('74 -'75 kz400/kz400d) diagram KZ400 1974 USA CANADA / MPH KPH

CLUTCH ('74 -'75 KZ400/KZ400D) KZ400 1974 USA CANADA / MPH KPH

CLUTCH ('74 -'75 KZ400/KZ400D) KZ400 1974 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

1

318B0800
ref: 1

NUT,8MM

€ 0.50

2

92014014
ref: 2

SCREW-SLOTTED,8X25

€ 4.00

3

411B0600
ref: 3

WASHER-PLAIN,6MM

€ 0.50

4

13118007
ref: 4

OUTER-CLUTCH RELEASE

€ 16.00

5

220B0616
ref: 5

SCREW-PAN HEAD,6X16

€ 2.50

6

13102013
ref: 6

1NNER-CLUTCH RELEASE

€ 56.50

7

92081069
ref: 7

SPRING-CLUTCH RELEASE

€ 4.50

8

550D1615
ref: 8

PIN-COTTER,1.6X15

€ 1.50

9

92050068
ref: 9

OIL SEAL,PUSH ROD

€ 15.00

9

920491041
ref: 9

OIL SEAL,PUSH ROD

€ 13.00

10

131161017
ref: 10

ROD-PUSH,CLUTCH,7X250

€ 26.00

11

13121030
ref: 11

SPROCKET,PRIMARY

€ 38.50

12

480J3000
ref: 12

CIRCLIP-TYPE-C,30MM

€ 3.50

13

13122005A
ref: 13

CHAIN,63-139X74L(TUBA

€ 208.00

14

480J3800
ref: 14

CIRCLIP-TYPE-C,38MM

€ 3.50

15

16084019
ref: 15

GEAR, OIL PUMP

€ 28.50

16

610A0606
ref: 16

PIN,DOWEL,6X6

€ 1.50

17

13081074
ref: 17

CLUTCH ASSY

€ 469.00

18

13095045
ref: 18

HOUSING,CLUTCH

€ 187.00

19

92022288
ref: 19

WASHER,CLUTCH THRUST

€ 9.00

20

13087040
ref: 20

HUB,CLUTCH

€ 56.00

21

13229005
ref: 21

RING,CLUTCH STEEL

€ 6.00

22

130881001
ref: 22

PLATE-FRICTION (NAS)

€ 11.50

23

13089026
ref: 23

PLATE,CLUTCH STEEL (NAS)

€ 6.50

24

600A1200
ref: 24

BALL-STEEL,3/8

€ 0.50

25

13116029
ref: 25

ROD-PUSH,CLUTCH SPRIN

€ 18.00

26

13187007
ref: 26

PLATE,CLUTCH SPRING (NAS)

€ 23.00

27

920811033
ref: 27

SPRING,CLUTCH

€ 6.50

28

13091011
ref: 28

HOLDER,CLUTCH SPRING

€ 2.50

29

112G0618
ref: 29

BOLT-UPSET

€ 0.50
