FOOTRESTS/STANDS/BRAKE PEDAL ('

KZ400 1974 USA CANADA / MPH KPH

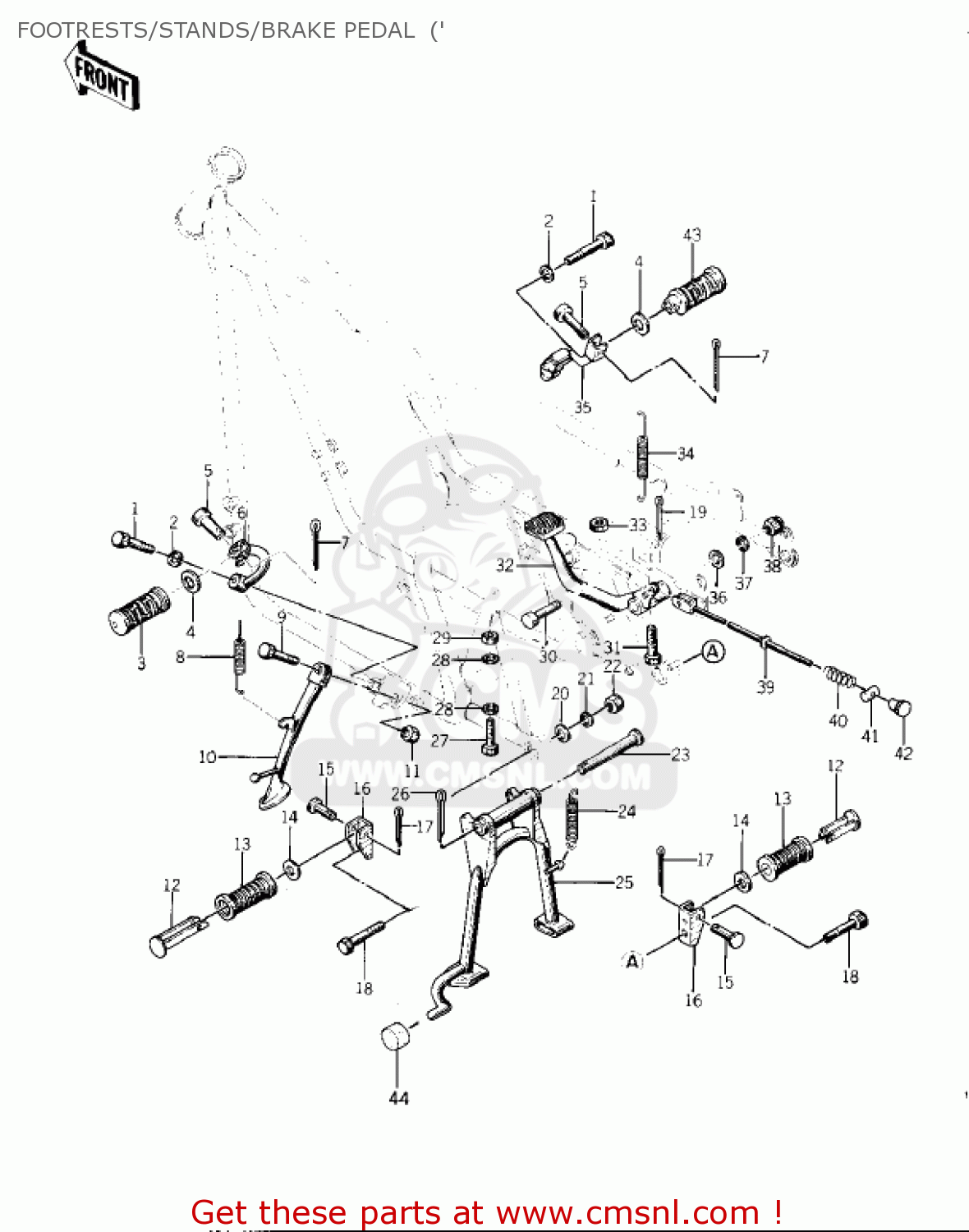

Footrests/stands/brake pedal (' diagram KZ400 1974 USA CANADA / MPH KPH

FOOTRESTS/STANDS/BRAKE PEDAL (' KZ400 1974 USA CANADA / MPH KPH

FOOTRESTS/STANDS/BRAKE PEDAL (' KZ400 1974 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

1

113B1236A
ref: 1

BOLT-HEX HEAD,12X36

€ 3.50

2

461F1200
ref: 2

WASHER-SPRING,12MM

€ 0.50

3

34028011
ref: 3

BAR-FOOTREST,L.H

€ 24.50

4

92022250
ref: 4

WASHER,PLAIN

€ 3.00

5

92043080
ref: 5

PIN-FOOTREST BAR FIT

€ 3.50

6

34003053
ref: 6

BRACKET,FOOTREST,L.H

€ 39.50

7

550D2516
ref: 7

PIN-COTTER,2.5X16

€ 1.50

8

34025007
ref: 8

SPRING,SIDE STAND

€ 3.00

9

92003157
ref: 9

BOLT,SIDE STAND FIT

€ 6.50

10

34024048
ref: 10

STAND,SIDE

€ 26.50

11

315B1000
ref: 11

NUT,10MM

€ 0.50

12

34028009
ref: 12

BAR-REAR FOOTREST

€ 24.00

13

92076024
ref: 13

DAMPER,STEP

€ 14.50

14

92022199
ref: 14

WASHER,20X30X2.3

€ 5.00

15

920431464
ref: 15

PIN

€ 5.50

16

320541021
ref: 16

BRACKET-STEP

€ 14.00

17

550D2012
ref: 17

PIN,COTTER,2.0X12

€ 0.50

18

920011254
ref: 18

BOLT,HEX HEAD,10X50

€ 2.50

19

550D2516
ref: 19

PIN-COTTER,2.5X16

€ 1.50

20

410B1000
ref: 20

WASHER-PLAIN-SMALL,10

€ 0.50

21

461F1000
ref: 21

WASHER-SPRING,10MM

€ 0.50

22

314B1000
ref: 22
KZ400-D3

NUT,10MM

€ 0.50

22

314B1000
ref: 22
KZ400-D4

NUT,10MM

€ 0.50

23

34019015
ref: 23

SHAFT-STAND,CNT

€ 9.50

24

34023016
ref: 24
KZ400-D3

SPRING,MAIN STAND

€ 11.00

24

34023016
ref: 24
KZ400-D4

SPRING,MAIN STAND

€ 11.00

25

34011053
ref: 25
KZ400-D3

STAND,MAIN,GERMAN SPC

€ 93.50

25

34011053
ref: 25

STAND,MAIN,GERMAN SPC

€ 93.50

25

34011053
ref: 25
KZ400-D4

STAND,MAIN,GERMAN SPC

€ 93.50

26

550D3030
ref: 26

PIN-COTTER,3.0X30

€ 1.50

27

110R0635
ref: 27
KZ400-D3

BOLT 6X35

€ 3.50

27

110R0635
ref: 27
KZ400-D4

BOLT 6X35

€ 3.50

28

410B0600
ref: 28

WASHER-PLAIN-SMALL,6M

€ 0.50

29

92019008
ref: 29

NUT-LOCK,6MM

€ 3.00

30

92043090
ref: 30

PIN,6X13

€ 4.00

31

112G0625
ref: 31

BOLT-UPSET,6X25

€ 4.00

32

43001064
ref: 32

PEDAL,BRAKE

€ 55.50

33

311B0600
ref: 33

NUT,6MM

€ 0.50

34

43005029
ref: 34

SPRING,BRAKE PEDAL

€ 6.00

35

34003054
ref: 35

BRACKET,FOOTREST,R.H

€ 16.50

36

920221561
ref: 36

WASHER,8.5X20X1.6

€ 2.50

37

461F0800
ref: 37

WASHER-SPRING,8MM

€ 0.50

38

92019013
ref: 38

NUT,CAP,LOCK,8MM

€ 5.50

39

43011026
ref: 39

ROD,BRAKE

€ 13.00

40

43012001
ref: 40

SPRING,BRAKE ROD

€ 3.00

41

92043065
ref: 41

PIN-BRAKE ROD

€ 3.50

42

92015042
ref: 42

NUT-BRAKE ROD ADJUST

€ 4.00

43

34028012
ref: 43

BAR-FOOTREST,R.H

€ 24.50

44

92075115
ref: 44

DAMPER,STAND,CNT

€ 4.00
