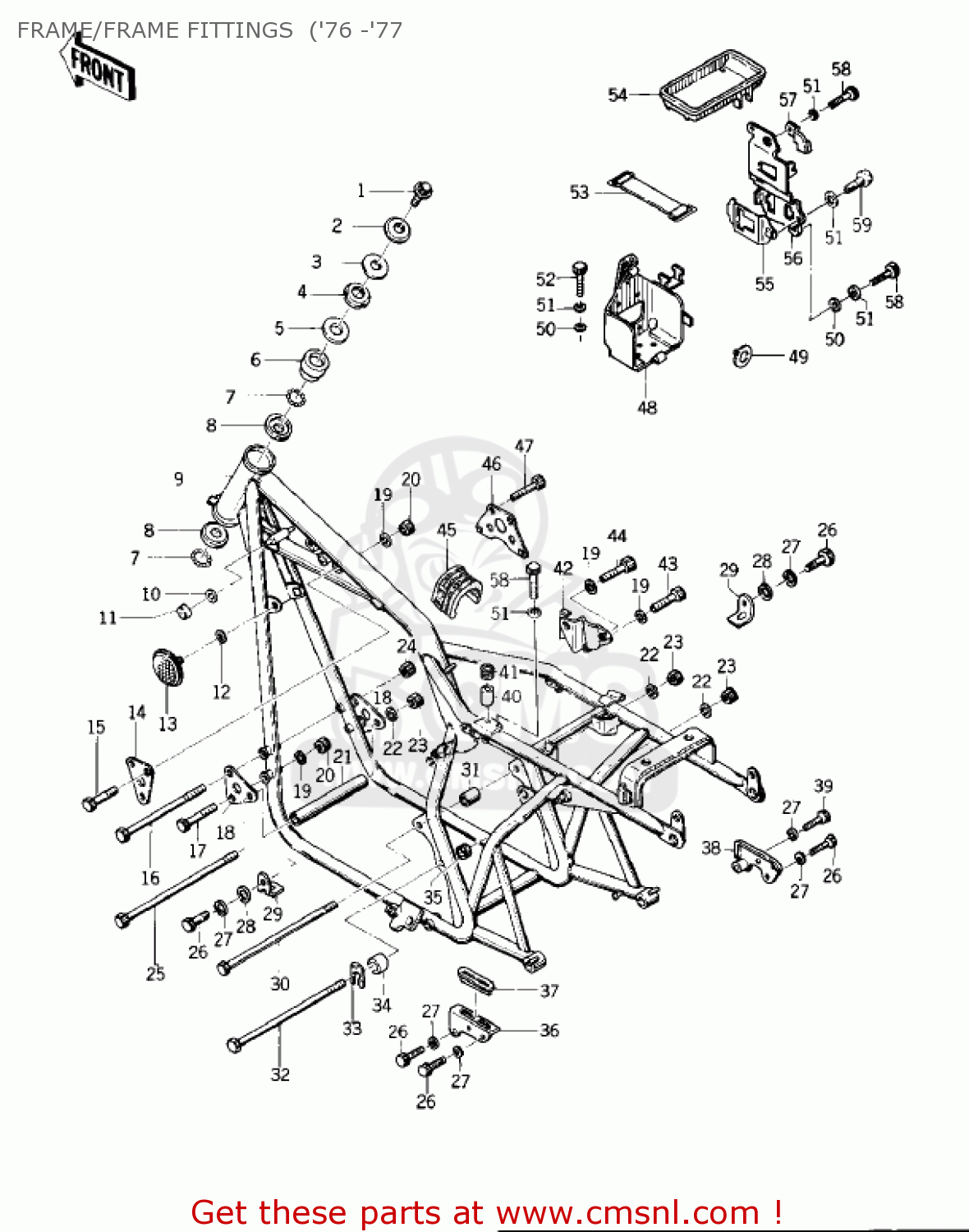

FRAME/FRAME FITTINGS ('76 -'77

ref

part #

description

quantity

1

92007031
ref: 1

BOLT-STEERG STEM HEAD

€ 17.50

2

92022230
ref: 2

WASHER-STEERG STM HD

€ 7.50

3

46100003
ref: 3

WASHER,WAVE

€ 6.50

4

92090007
ref: 4

NUT-STEERING STEM LCK

€ 8.00

5

46098016
ref: 5

CAP,STEERING STEM

€ 4.00

6

92047006
ref: 6

CONE-STRNG STEM

€ 11.00

7

600A0800
ref: 7

BALL-STEEL,1/4

€ 0.50

8

92048006
ref: 8

RACE-STRNG BEARIN-STE

€ 11.50

9

32002168
ref: 9
KZ400-D3

FRAME

€ 1,018.50

9

32002168
ref: 9
KZ400-D4

FRAME

€ 1,018.50

10

92022044
ref: 10

WASHER,10.5X26X2.3

€ 2.50

11

92075125
ref: 11

DAMPER RUBBER-FL TANK

€ 4.00

12

92094011
ref: 12

DAMPER,REFLECTOR

€ 3.00

13

28012009
ref: 13

REFLECTOR-REFLEX,RR

€ 17.50

14

32030038
ref: 14

PLATE,ENG MOUNT UPPE

€ 4.00

15

920011398
ref: 15
KZ400-D3

BOLT,FLANGED 8X55

€ 2.50

15

920011398
ref: 15

BOLT,FLANGED 8X55

€ 2.50

15

920011386
ref: 15
KZ400-D4

BOLT,8X55

€ 3.00

15

920011386
ref: 15

BOLT,8X55

€ 3.00

16

92003171
ref: 16

BOLT,HEX HEAD,8X256.5

€ 10.50

17

110G0859
ref: 17

BOLT,HEX HEAD,8X59

€ 3.50

17

920011581
ref: 17

BOLT,FLANGED,8X60

€ 3.50

18

32030044
ref: 18

PLATE,ENG MOUNT,FRNT

€ 4.50

19

461F0800
ref: 19

WASHER-SPRING,8MM

€ 0.50

20

311B0800
ref: 20

NUT,8MM

€ 0.50

21

92027233
ref: 21

COLLAR,ENG PLAT,FRNT

€ 6.00

22

461F1000
ref: 22

WASHER-SPRING,10MM

€ 0.50

23

92019021
ref: 23

NUT,LOCK,10M/M

€ 2.00

24

920151124
ref: 24
KZ400-D3

NUT,LOCK,8MM

€ 3.50

24

920151124
ref: 24

NUT,LOCK,8MM

€ 3.50

24

92017013
ref: 24
KZ400-D4

NUT,LOCK,8MM

€ 5.50

25

920011609
ref: 25

BOLT,FLANGED,10X255

€ 14.00

26

115G0816
ref: 26

BOLT-HEX,HEAD 8X16

€ 0.50

27

461F0800
ref: 27

WASHER-SPRING,8MM

€ 0.50

28

920221561
ref: 28

WASHER,8.5X20X1.6

€ 2.50

29

32070033
ref: 29

BRACKET,AIR CLEANER

€ 1.00

30

920021197
ref: 30

BOLT,10X220

€ 14.50

31

92027228
ref: 31

COLLAR,10.5X24X26.5

€ 11.50

32

92003162
ref: 32

BOLT,HEX HEAD,10X292

€ 12.00

33

92025053
ref: 33

SHIM,T=0.5

€ 3.00

33

92025054
ref: 33

SHIM-ENG FIT FR,0.8MM

€ 2.50

33

92025055
ref: 33

SHIM-ENG FIT FR,1.0MM

€ 1.50

33

92025056
ref: 33

SHIM-ENG FIT FR,1.6MM

€ 1.00

33

92025057
ref: 33

SHIM,T=2.0

€ 2.50

33

92025058
ref: 33

SHIM,T=2.3

€ 2.50

34

92027250
ref: 34

COLLAR

€ 9.00

35

92027160
ref: 35

COLLAR,L=30.5

€ 7.00

36

32129008
ref: 36

BRACKET,BASE

€ 3.50

37

92075280
ref: 37

DAMPER

€ 3.00

38

32129009
ref: 38

BRACKET,BASE

€ 4.50

39

920011578
ref: 39

BOLT,FLANGED,8X40

€ 4.00

40

92027129
ref: 40

COLLAR,6.8X10X8.5

€ 3.00

41

92075076
ref: 41

DAMPER

€ 3.00

42

32030034
ref: 42

PLATE,ENG MOUNT,REAR

€ 7.00

43

115G0820
ref: 43

BOLT,8X20

€ 2.00

44

115G0825
ref: 44

BOLT-HEX,HEAD,8X25

€ 3.00

45

92075215
ref: 45

DAMPER,FUEL TANK

€ 9.50

46

32058049
ref: 46

BRACKET,IGNITON COIL

€ 7.50

47

92003208
ref: 47

BOLT,SPROCKET FITTING

€ 2.50

48

32097041
ref: 48

CASE,BATTERY

€ 27.50

49

92075078
ref: 49

DAMPER,RUBBER

€ 2.50

50

92022125
ref: 50

WASHER,6.5X20X1.6

€ 1.00

51

461F0600
ref: 51
KZ400-D3

WASHER-SPRING,6MM

€ 0.50

51

461F0600
ref: 51
KZ400-D3

WASHER-SPRING,6MM

€ 0.50

52

112B0622
ref: 52

BOLT, 6X22

€ 2.50

53

92072006
ref: 53

BAND,L=142.1

€ 8.00

54

32098025
ref: 54

CASE,TOOL

€ 10.00

55

32129004
ref: 55

BRACKET,ELECT BASE

€ 3.00

56

32129010
ref: 56

BRACKET,BASE

€ 7.50

57

32122047
ref: 57

BRACKET,SIGNAL RELAY

€ 1.50

58

112B0614
ref: 58
KZ400-D3

BOLT-UPSET 6X14

€ 2.50

58

112B0614
ref: 58
KZ400-D3

BOLT-UPSET 6X14

€ 2.50

59

220B0612
ref: 59

SCREW-PAN HEAD,6X12

€ 1.00
