STARTER MOTOR/STARTER CLUTCH ('

KZ400 1974 USA CANADA / MPH KPH

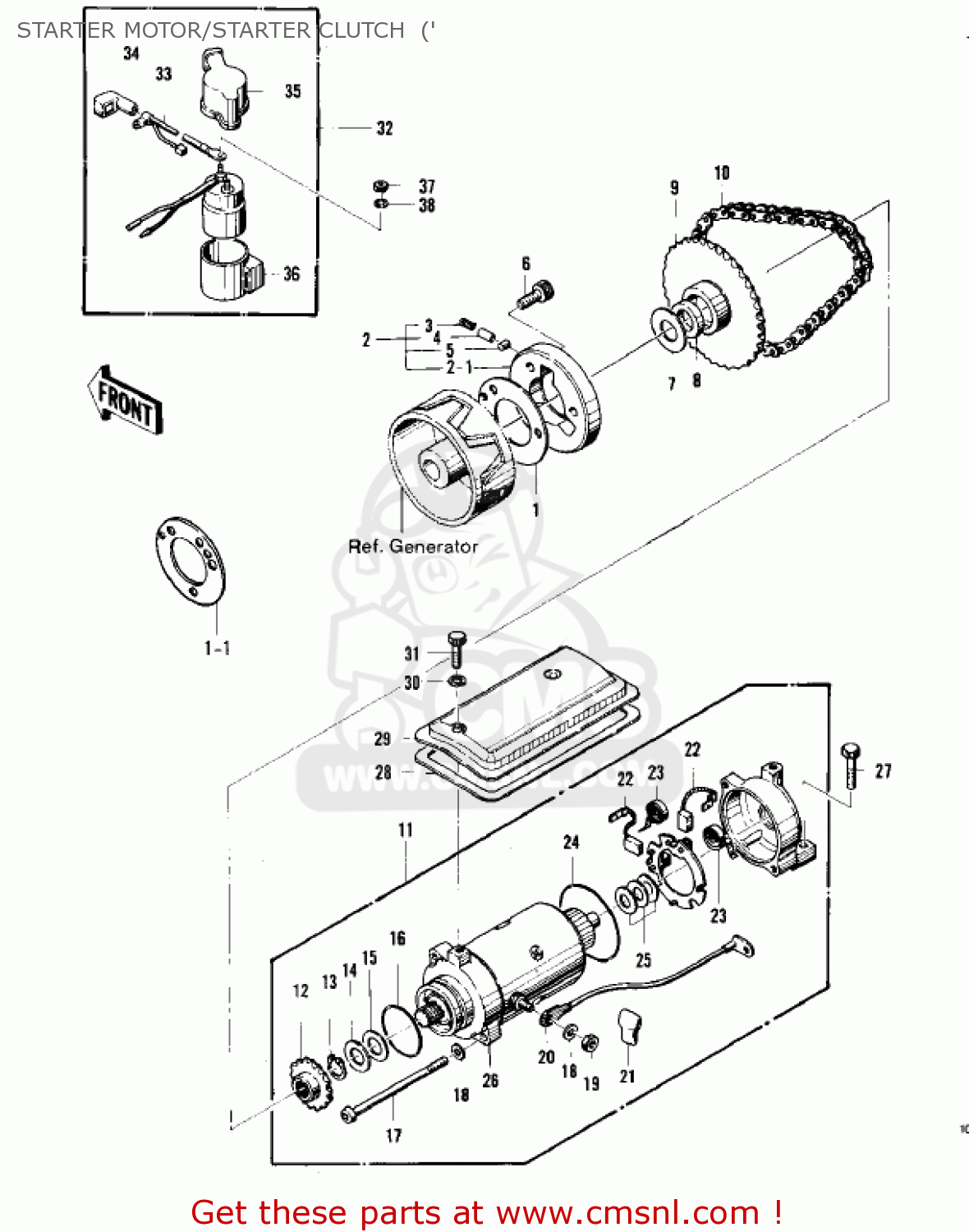

Starter motor/starter clutch (' diagram KZ400 1974 USA CANADA / MPH KPH

STARTER MOTOR/STARTER CLUTCH (' KZ400 1974 USA CANADA / MPH KPH

STARTER MOTOR/STARTER CLUTCH (' KZ400 1974 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

1

92026082
ref: 1
KZ400-D3

WASHER-FREE WHEEL

€ 6.50

1-1

92026112
ref: 1-1
KZ400-D4

SPACER,45X79.5X0.5 (NAS)

€ 7.50

2

131931001
ref: 2

CLUTCH-ASSY-ONEWAY

€ 141.50

2-1

131931001
ref: 2-1

CLUTCH-ASSY-ONEWAY

€ 141.50

3

92081110
ref: 3

SPRING

€ 3.00

4

92043087
ref: 4

PIN

€ 8.00

5

92122004
ref: 5

ROLLER,15X13

€ 7.00

6

120P0816
ref: 6

BOLT-SOCKET

€ 2.50

7

92026100
ref: 7

WASHER,THRUST

€ 6.50

8

92050066
ref: 8

OIL SEAL

€ 7.50

9

21170001
ref: 9

GEAR,STARTER CLUTCH

€ 46.50

10

920571009
ref: 10

CHAIN,DYNAMO

€ 12.50

10

920571009
ref: 10

CHAIN,DYNAMO

€ 12.50

11

211631011
ref: 11

MOTOR ASSY,STARTER

€ 595.00

11

211631011
ref: 11

MOTOR ASSY,STARTER

€ 595.00

12

21053002
ref: 12

SPROCKET,STARTNG MOT

€ 24.50

13

480J1400
ref: 13

CIRCLIP-TYPE-C,14MM

€ 3.00

14

21025008
ref: 14
0.2T

WASHER,PLAIN,14MM

€ 3.50

15

21025009
ref: 15
0.5T

WASHER,PLAIN,14MM

€ 3.50

16

21027005
ref: 16

'O' RING,42.8MM

€ 5.50

17

220B06110
ref: 17

SCREW-PAN HEAD,6X110

€ 2.50

18

461F0600
ref: 18

WASHER-SPRING,6MM

€ 0.50

19

312B0600
ref: 19

NUT,6MM

€ 0.50

20

26010035
ref: 20

WIRE,STARTER LEAD

€ 33.50

21

21017020
ref: 21

CAP,STARTING MOTOR

€ 6.00

22

21039004
ref: 22

BRUSH,CARBON

€ 23.00

23

21040004
ref: 23

SPRING-BRUSH

€ 5.50

24

21027006
ref: 24

RING-O,62MM

€ 8.00

25

21025007
ref: 25

WASHER,PLAIN,9MM

€ 2.50

26

99990536
ref: 26

CITIZEN WALL CLOCK

€ 27.00

27

112G0625
ref: 27

BOLT-UPSET,6X25

€ 4.00

28

21166002
ref: 28

GASKET,START MOTOR (NAS)

€ 13.50

29

21165002
ref: 29

COVER,STARTER MOTOR

€ 12.00

30

410D0600
ref: 30

WASHER-PLAIN-SMALL,6M

€ 0.50

31

132E0612
ref: 31

BOLT-FLANGED-SMALL

€ 3.50

32

21164006
ref: 32

SWITCH ASSY,MAGNETIC

€ 74.50

33

260111027
ref: 33

WIRE,LEAD,MAG SWITCH

€ 25.00

34

21017021
ref: 34

CAP,MAG SWITCH TEMNL

€ 8.50

35

21141004
ref: 35

COVER,MAG SWITCH

€ 8.50

36

21064002
ref: 36

DAMPER,MAGNETIC SWITC

€ 13.50

37

311B0600
ref: 37

NUT,6MM

€ 0.50

38

461F0600
ref: 38

WASHER-SPRING,6MM

€ 0.50
