TRANSMISSION
KZ250W1 LTD 1983 USA CANADA BELT DRIVE

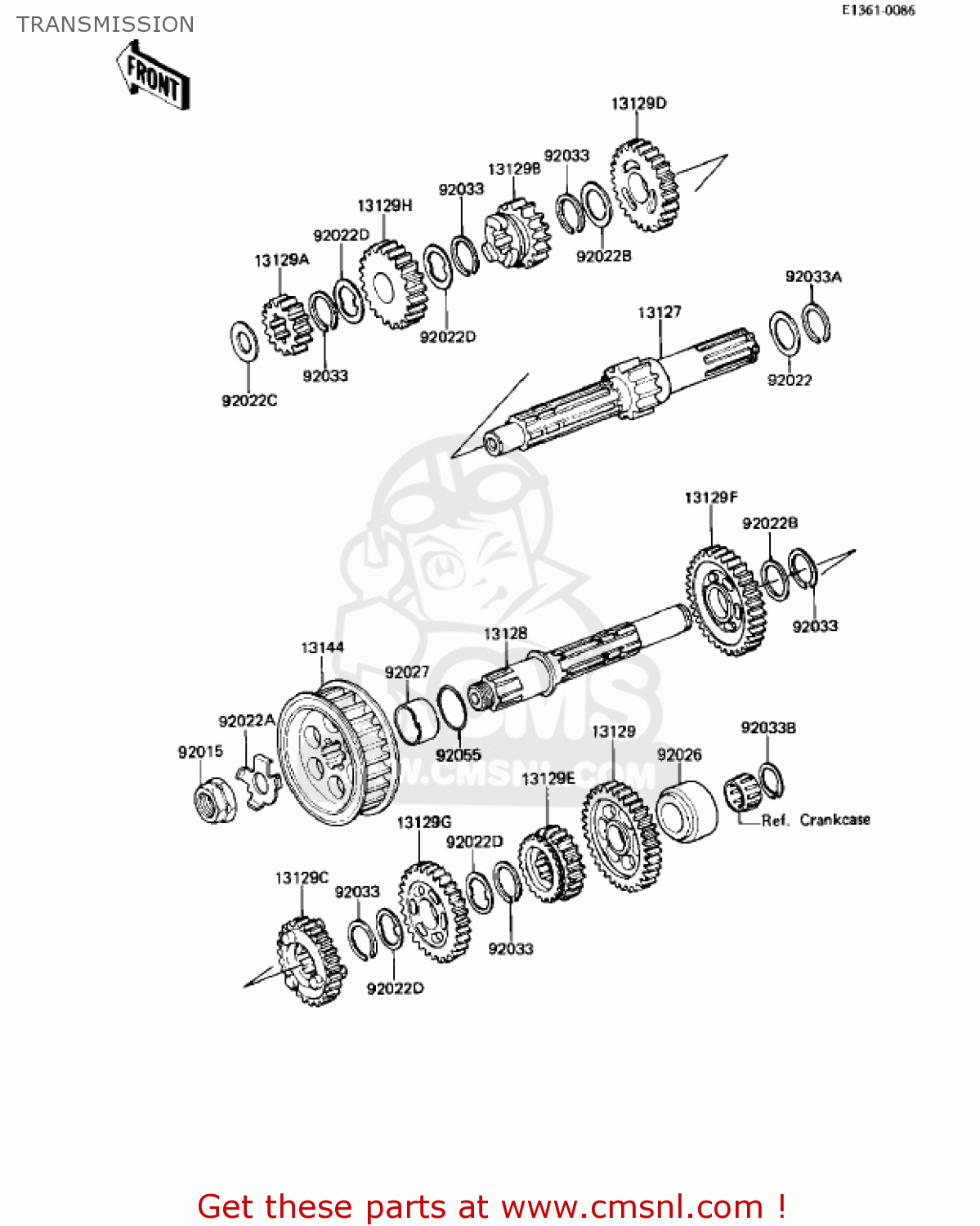

Transmission diagram KZ250W1 LTD 1983 USA CANADA BELT DRIVE
TRANSMISSION KZ250W1 LTD 1983 USA CANADA BELT DRIVE
×
prices are in EUR
ref
part #
description
quantity
13127
131271041
ref: 13127
SHAFT-TRANSMISSION IN
€ 96.50
13128
131281007
ref: 13128
SHAFT-TRANSMISSION OU
€ 134.00
13129
13129058
ref: 13129
LOW GEAR,OUTPUT SHAFT
€ 110.50
13129A
131291022
ref: 13129A
2ND GEAR,DRIVE SHAFT
€ 66.00
13129B
131291284
ref: 13129B
GEAR,INPUT 3RD,20T
€ 131.00
13129C
131291285
ref: 13129C
GEAR,OUTPUT 4TH,21T
€ 110.50
13129D
131291318
ref: 13129D
GEAR,INPUT TOP,24T
€ 98.50
13129E
131291323
ref: 13129E
GEAR,OUTPUT,TOP,20T
€ 93.50
13129F
13131044
ref: 13129F
GEAR,OUTPUT 2ND,26T
€ 103.00
13129G
13133044
ref: 13129G
GEAR,OUTPUT 3RD,26T
€ 96.50
13129H
13134026
ref: 13129H
GEAR,INPUT 4TH,20T
€ 63.00
13144
131441073
ref: 13144
SPROCKET-OUTPUT
€ 56.00
92015
920151013
ref: 92015
NUT,LOCK,16MM
€ 34.50
92022
92022112
ref: 92022
WASHER,20.5X30X1,STEE
€ 6.00
92022A
920221348
ref: 92022A
WASHER
€ 3.50
92022B
92022198
ref: 92022B
WASHER-PLAIN
€ 3.50
92022C
92022279
ref: 92022C
WASHER,15.3X25X1
€ 7.00
92022D
92024039
ref: 92022D
WASHER-LOCK
€ 4.00
92026
920261061
ref: 92026
SPACER,DRIVE SHAFT
€ 8.00
92027
92027287
ref: 92027
COLLAR,25X32X14.4
€ 8.00
92033
92033025
ref: 92033
CIRCLIP,25MM
€ 3.00
92033A
92033029
ref: 92033A
CIRCLIP,18MM
€ 6.50
92033B
92033032
ref: 92033B
CIRCLIP
€ 3.00
92055
92055022
ref: 92055
'O' RING
€ 4.00
