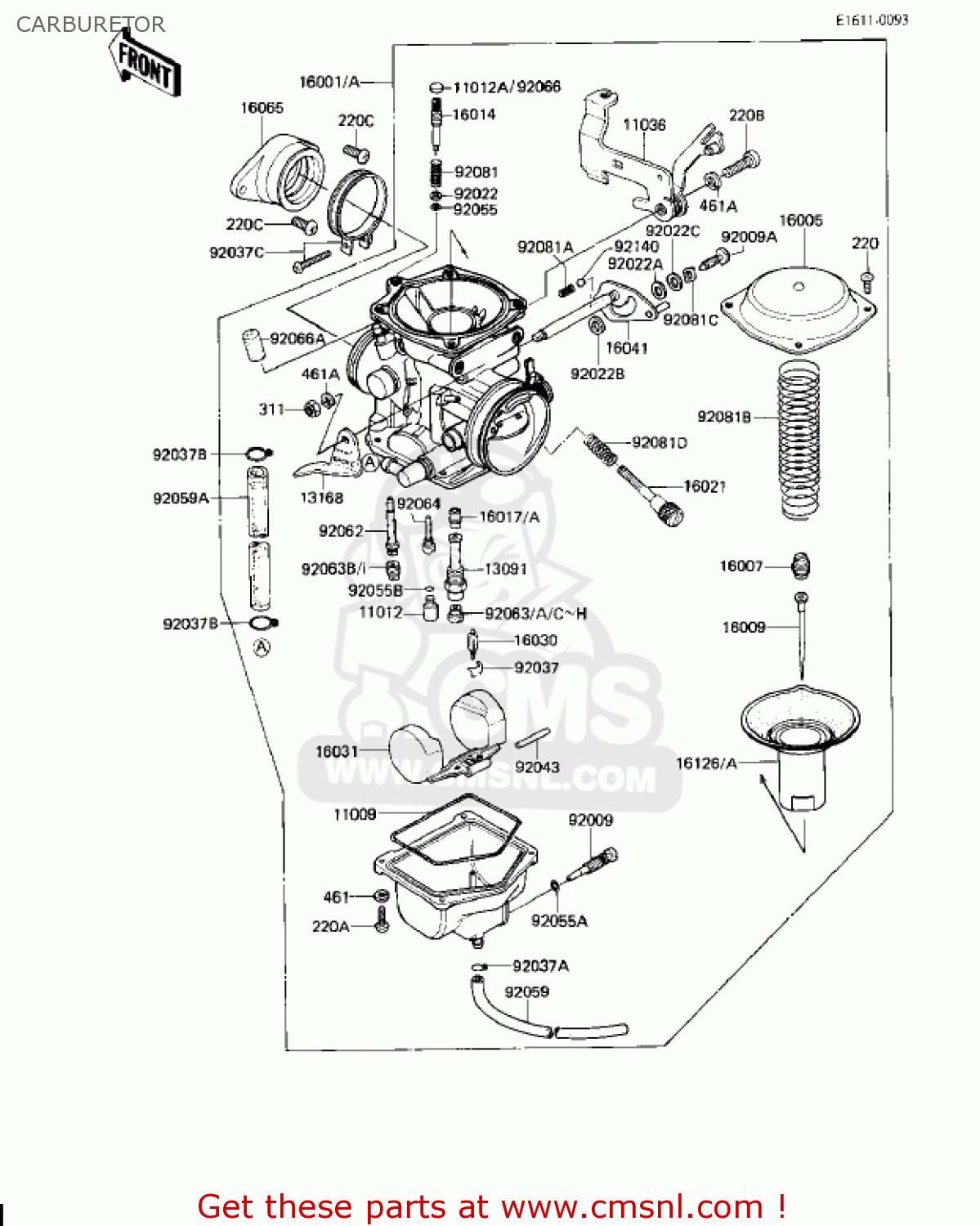

CARBURETOR

ref

part #

description

quantity

11009

16019024
ref: 11009

O RING,FLOAT CHAMBER

€ 15.00

11012

110121128
ref: 11012

CAP,POLYACETAL

€ 13.50

11012A

110121289
ref: 11012A
CN

CAP,PILOT AIR SCREW

€ 2.50

11036

110361933
ref: 11036

BRACKET-A,THROTTLE CA

€ 37.00

13091

130911050
ref: 13091

HOLDER,NEEDLE JET,N41

€ 16.00

13168

131681065
ref: 13168

LEVER,CHOKE

€ 8.50

16001

160011592
ref: 16001
US

CARBURETOR

€ 275.50

16001A

160011593
ref: 16001A
CN

CARBURETOR

€ 322.50

16005

160051012
ref: 16005

TOP-CHAMBER,MIXING

€ 24.00

16007

160071022
ref: 16007

SEAT-SPRING,THROTTLE

€ 8.00

16009

160091137
ref: 16009

NEEDLE-JET,N02B

€ 13.00

16014

160141011
ref: 16014

SCREW-PILOT AIR

€ 9.00

16017

160171059
ref: 16017
US

JET-NEEDLE

€ 33.00

16017A

160171061
ref: 16017A
CN

NEEDLE,JET.

€ 33.00

16021

160211031
ref: 16021

SCREW-THROTTLE STOP

€ 9.50

16030

160301007
ref: 16030

FLOAT VALVE ASSY

€ 37.00

16031

160311001
ref: 16031

FLOAT

€ 38.50

16041

160411030
ref: 16041

SHAFT-CARBURETOR,CHOK

€ 35.50

16065

160651063
ref: 16065

HOLDER-CARBURETOR

€ 15.50

16126

161261057
ref: 16126
US

VALVE,VACUUM

€ 126.00

16126A

161261057
ref: 16126A
CN

VALVE,VACUUM

€ 126.00

92009

920091095
ref: 92009

SCREW,DRAIN

€ 10.00

92009A

920091183
ref: 92009A

SCREW,LINK SHAFT

€ 7.00

92022

920221003
ref: 92022

WASHER,PLAIN

€ 2.50

92022A

920221199
ref: 92022A

WASHER,6.1X11X0.8,POL

€ 3.00

92022B

920221200
ref: 92022B

WASHER,6.4X9.4X0.8,PO

€ 2.00

92022C

920221207
ref: 92022C

WASHER,6.5X11X1.2,STE

€ 2.50

92037

16044007
ref: 92037

CLIP, FLOAT VALVE

€ 4.00

92037A

920371142
ref: 92037A

CLAMP,TUBE

€ 2.50

92037B

920371682
ref: 92037B

CLAMP,TUBE

€ 4.00

92037C

92037201
ref: 92037C

CLAMP,53MM

€ 5.50

92043

920431002
ref: 92043

PIN,FLOAT

€ 3.50

92055

920551002
ref: 92055

O RING,PILOT ADJUST

€ 2.50

92055A

920551053
ref: 92055A

O RING,DRAIN SCREW

€ 3.00

92055B

920551088
ref: 92055B

RING-O

€ 12.50

92059

920591046
ref: 92059

TUBE,3.5X6.5X270

€ 9.50

92059A

920591267
ref: 92059A

TUBE,5.3X10.5X140

€ 13.00

92062

920621001
ref: 92062

NOZZLE,MAIN

€ 15.50

92063

920631009
ref: 92063
CN

JET-MAIN,#105

€ 10.00

92063A

920631071
ref: 92063A
US

JET-MAIN,#118

€ 9.50

92063B

920631092
ref: 92063B
CN

MAIN JET,PRI,#78

€ 6.50

92063C

920631114
ref: 92063C
CN

JET-MAIN,#110

€ 9.50

92063D

920631114
ref: 92063D
US

JET-MAIN,#110

€ 9.50

92063E

920631116
ref: 92063E
(RACING USE ONLY)

JET-MAIN,#108

€ 9.50

92063F

920631117
ref: 92063F
US

JET-MAIN,#112

€ 9.50

92063G

920631117
ref: 92063G
CN

JET-MAIN,#112

€ 9.50

92063H

920631118
ref: 92063H
(RACING USE ONLY)

JET-MAIN,#115

€ 9.50

92063I

920631193
ref: 92063I
US

JET-MAIN,PRI,#72

€ 8.00

92064

920641001
ref: 92064

JET-PILOT,#35

€ 14.00

92066

920661051
ref: 92066
US

PLUG,PILOT AIR SCREW,

€ 3.00

92066A

92068006
ref: 92066A

RUBBER PLUG

€ 2.50

92081

920811002
ref: 92081

SPRING,PIROT ADJ SCRW

€ 3.50

92081A

920811249
ref: 92081A

SPRING

€ 4.00

92081B

920811257
ref: 92081B

SPRING

€ 21.00

92081C

920811262
ref: 92081C

SPRING,WAVED WASHER

€ 3.00

92081D

920811545
ref: 92081D

SPRING,STOP SCREW

€ 4.00

92140

921401004
ref: 92140

BALL,STEEL,3/16"

€ 1.50

220

220B0408
ref: 220

SCREW-PAN-CROS

€ 0.50

220A

220B0412
ref: 220A

SCREW-PAN CROS 4X12

€ 0.50

220B

220B0520
ref: 220B

SCREW-PAN-CROS

€ 0.50

220C

220B0614
ref: 220C

SCREW-PAN HEAD,6X14

€ 2.00

311

311B0500
ref: 311

NUT-HEX

€ 0.50

461

461F0400
ref: 461

WASHER-SPRING,4MM

€ 0.50

461A

461F0500
ref: 461A

WASHER-SPRING,5MM

€ 0.50

all assemblies
