BRAKE PEDAL/TORQUE LINK

KZ250W1 LTD 1983 USA CANADA BELT DRIVE

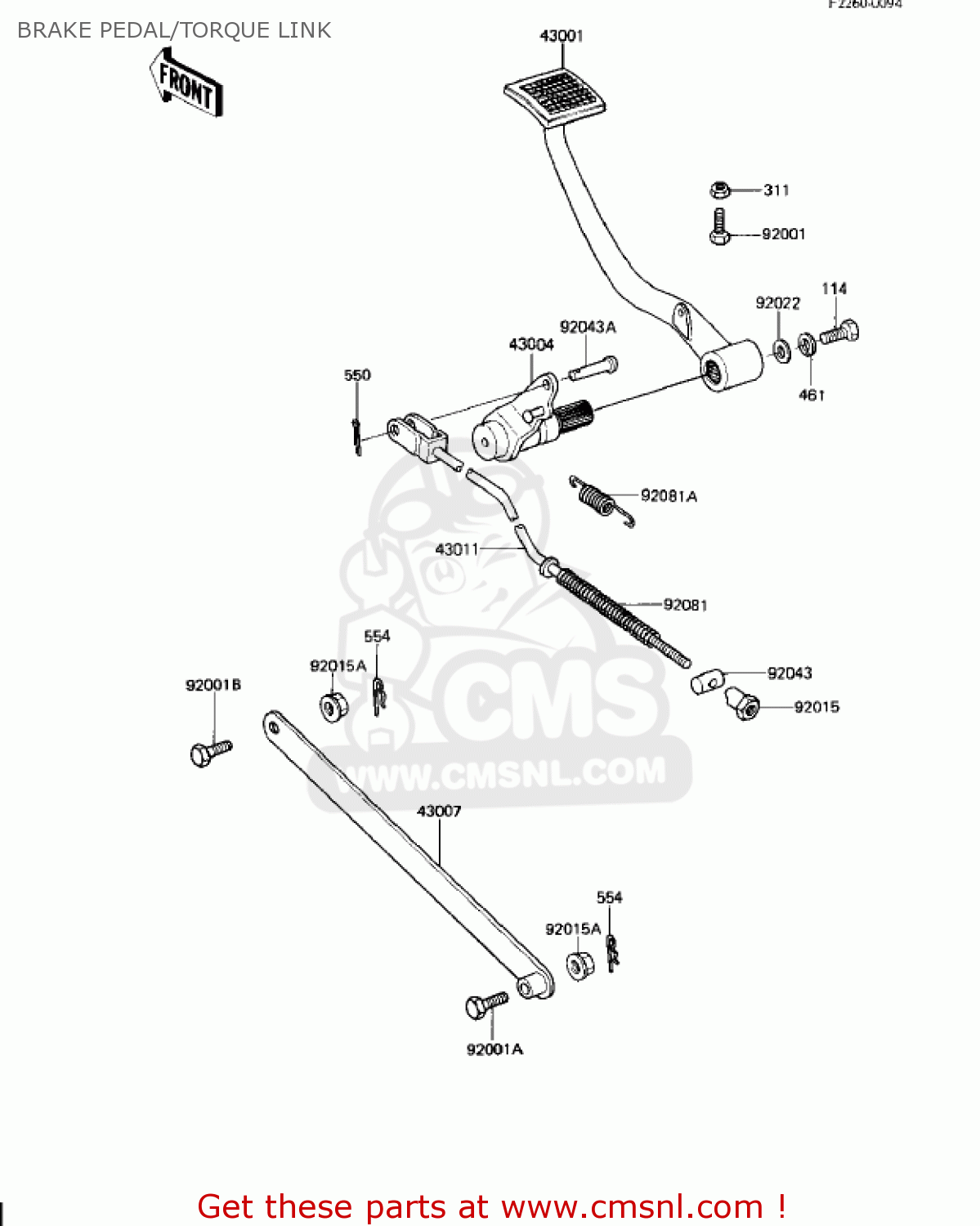

Brake pedal/torque link diagram KZ250W1 LTD 1983 USA CANADA BELT DRIVE

prices are in EUR

ref

part #

description

quantity

43001

430011095
ref: 43001

LEVER-BRAKE

€ 44.50

43004

430041043
ref: 43004

SHAFT-BRAKE

€ 23.00

43007

430071027
ref: 43007

ROD-TORQUE

€ 28.00

43011

430111041
ref: 43011

ROD-BRAKE

€ 17.50

92001

920011090
ref: 92001

BOLT,HEX HEAD,6X25

€ 2.50

92001A

920011423
ref: 92001A

BOLT, 10X45

€ 7.00

92001B

92003017
ref: 92001B

BOLT-TRQ LINK 10X25

€ 3.50

92015

92015042
ref: 92015

NUT-BRAKE ROD ADJUST

€ 4.00

92015A

920151428
ref: 92015A

NUT,FLANGED,10MM

€ 3.00

92022

920221561
ref: 92022

WASHER,8.5X20X1.6

€ 2.50

92043

92043039
ref: 92043

PIN,BRAKE ROD

€ 4.50

92043A

92043090
ref: 92043A

PIN,6X13

€ 4.00

92081

43012001
ref: 92081

SPRING,BRAKE ROD

€ 3.00

92081A

920811147
ref: 92081A

SPRING,BRAKE PEDAL

€ 8.00

114

114G0812
ref: 114

BOLT-SMALL,8X12

€ 2.00

311

311B0600
ref: 311

NUT,6MM

€ 0.50

461

461F0800
ref: 461

WASHER-SPRING,8MM

€ 0.50

550

550D2015
ref: 550

PIN-COTTER,2.0X15

€ 1.00
