FRAME FITTINGS

KZ250W1 LTD 1983 USA CANADA BELT DRIVE

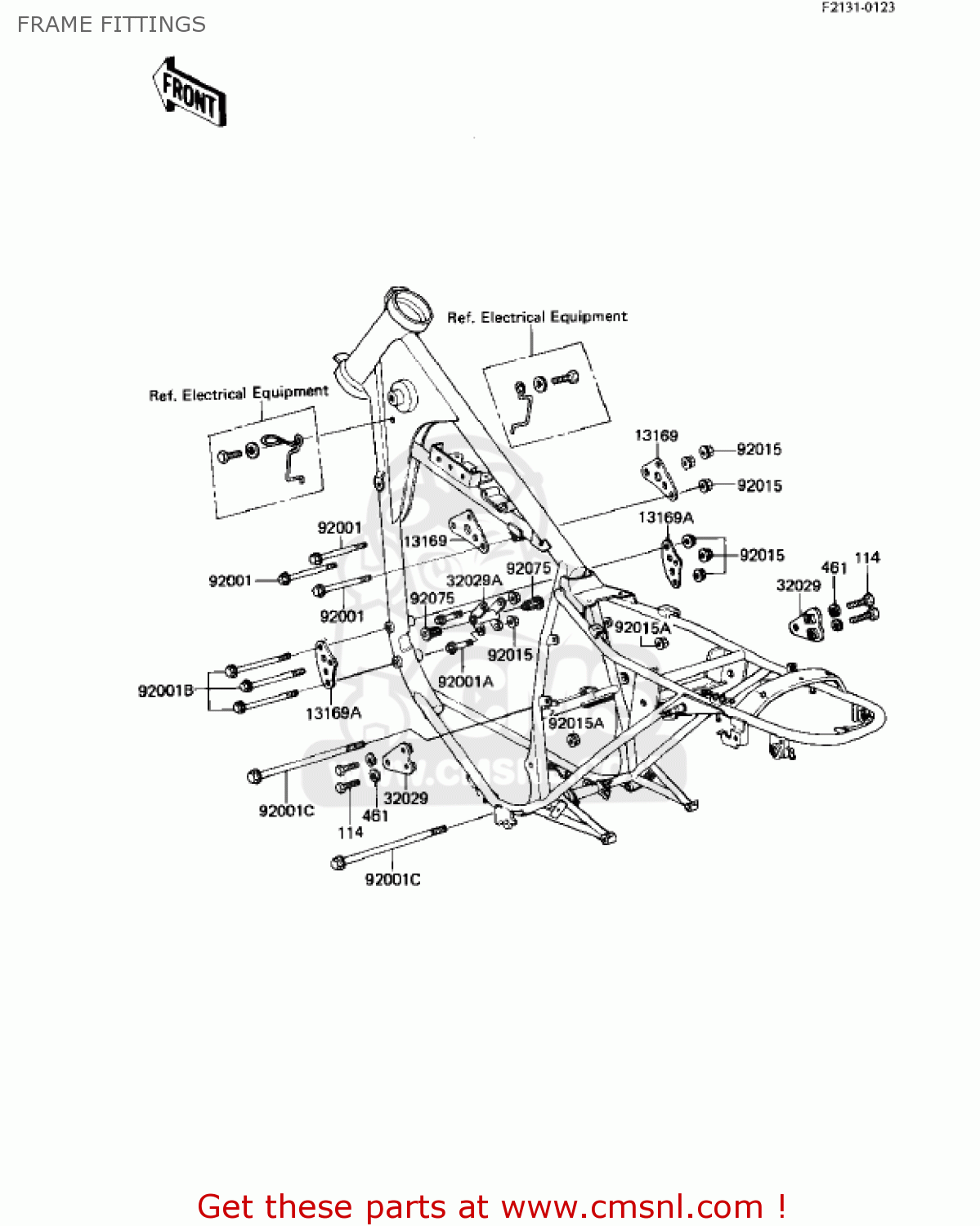

Frame fittings diagram KZ250W1 LTD 1983 USA CANADA BELT DRIVE

prices are in EUR

ref

part #

description

quantity

13169

131691544
ref: 13169

PLATE,ENGINE MOUNT,UP

€ 11.00

13169A

131691545
ref: 13169A

PLATE,ENGINE MOUNT,FR

€ 6.50

32029

320291008
ref: 32029

BRACKET-ENGINE

€ 7.00

32029A

320291218
ref: 32029A

BRACKET-ENGINE,FR

€ 13.50

92001

920011582
ref: 92001

BOLT,FLANGED,8X65

€ 3.50

92001A

920011583
ref: 92001A

BOLT,FLANGED,8X70

€ 6.00

92001B

920011596
ref: 92001B

BOLT,FLANGED,8X85

€ 3.50

92001C

920011602
ref: 92001C

BOLT,FLANGED,10X110

€ 7.50

92015

920151014
ref: 92015

NUT,8MM

€ 0.50

92015A

920151428
ref: 92015A

NUT,FLANGED,10MM

€ 3.00

92075

920751410
ref: 92075

DAMPER,ENGINE MOUNT

€ 9.50

114

115G0816
ref: 114

BOLT-HEX,HEAD 8X16

€ 0.50

461

461F0800
ref: 461

WASHER-SPRING,8MM

€ 0.50
