CLUTCH

KZ250W1 LTD 1983 USA CANADA BELT DRIVE

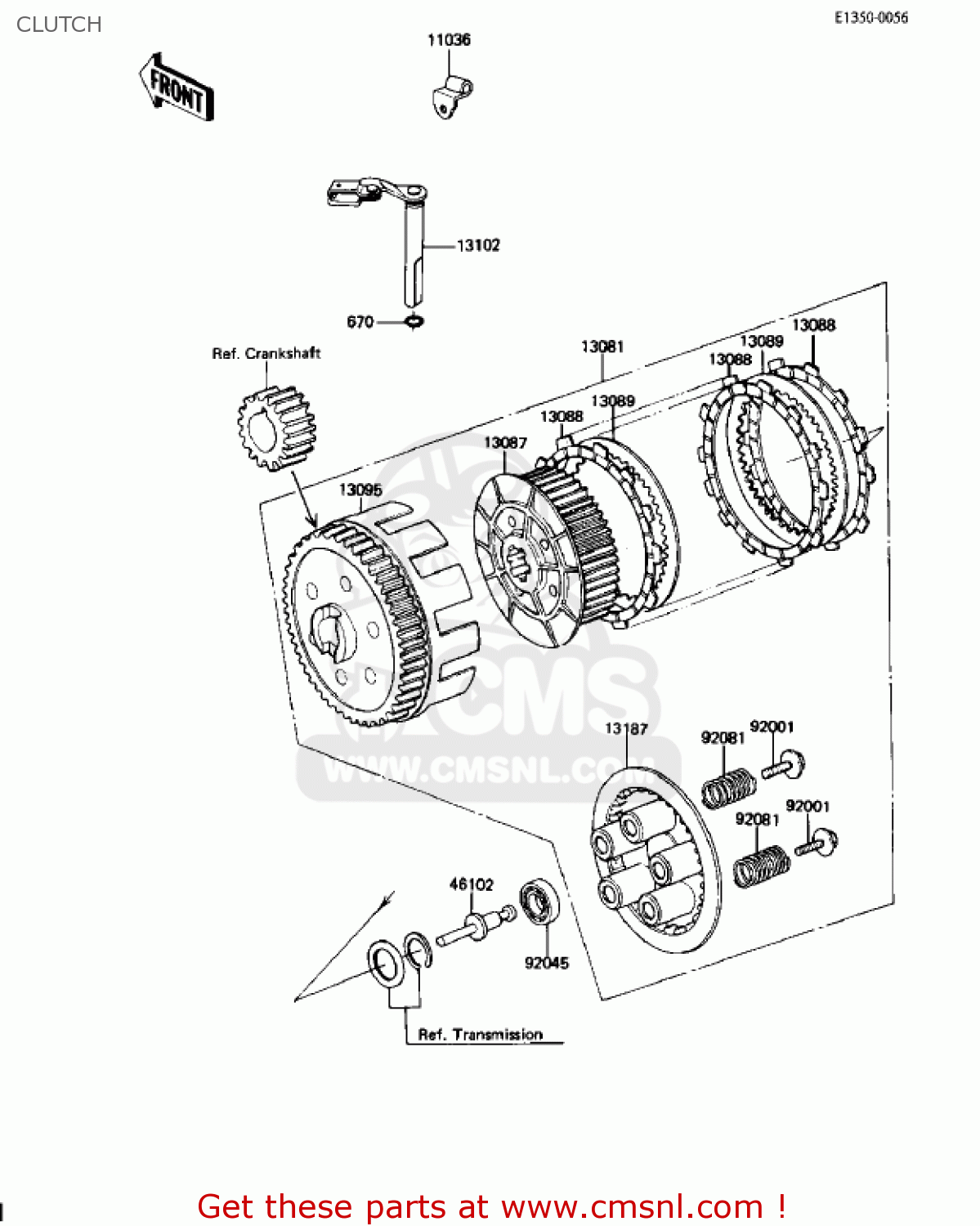

Clutch diagram KZ250W1 LTD 1983 USA CANADA BELT DRIVE

prices are in EUR

ref

part #

description

quantity

11036

110451081
ref: 11036

BRACKET,CLUTCH CABLE

€ 7.50

13081

130811068
ref: 13081

CLUTCH-ASSY

€ 844.00

13087

130871001
ref: 13087

HUB-CLUTCH

€ 91.00

13088

130881008
ref: 13088

PLATE,CLUTCH FRICTION (MCA)

€ 11.50

13089

13089013
ref: 13089

PLATE-CLUTCH,T=1.6 (NAS)

€ 6.50

13095

130951015
ref: 13095

HOUSING-COMP-CLUTCH

€ 349.00

13102

131021011
ref: 13102

RELEASE-COMP-CLUTCH

€ 34.50

13187

131871008
ref: 13187

PLATE-CLUTCH OPERATIN (NAS)

€ 50.00

46102

461021033
ref: 46102

ROD,CLUTCH PUSH

€ 16.00

92001

920011576
ref: 92001

BOLT,CLUTCH SPRING,6X

€ 1.00

92045

920451235
ref: 92045

BEARING-BALL,6001C3ML

€ 15.50

92081

92081083
ref: 92081

SPRING-CLUTCH

€ 5.50

670

670B1509
ref: 670

O RING,9MM

€ 1.00
