CYLINDER/PISTON

KZ250W1 LTD 1983 USA CANADA BELT DRIVE

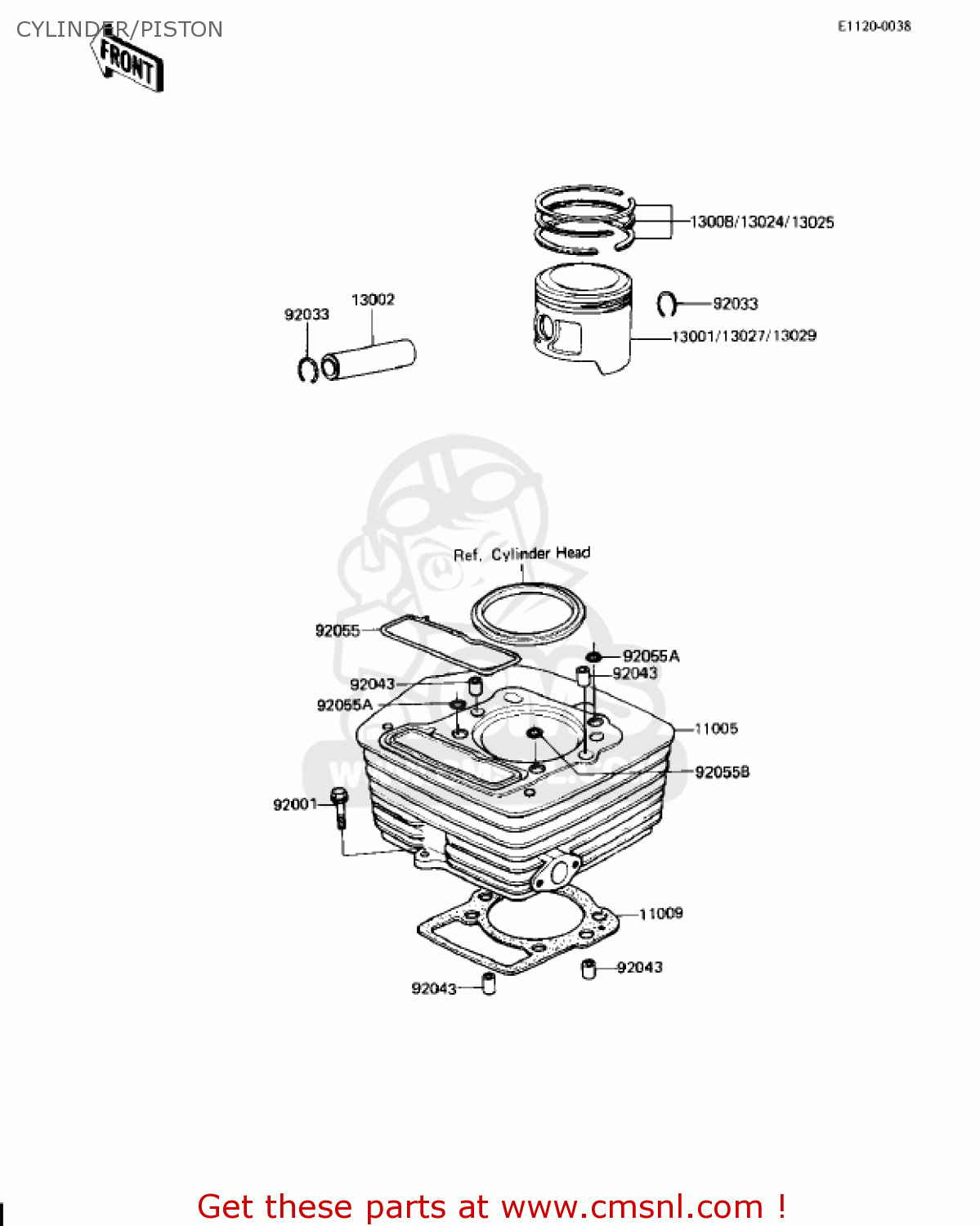

Cylinder/piston diagram KZ250W1 LTD 1983 USA CANADA BELT DRIVE

prices are in EUR

ref

part #

description

quantity

11005

110051329
ref: 11005

CYLINDER-ENGINE

€ 569.00

11009

11009043
ref: 11009

GASKET, CYLINDER BASE (MCA)

€ 9.00

13001

130011230
ref: 13001

PISTON-ENGINE,STD

€ 62.50

13002

130021013
ref: 13002

PIN-PISTON

€ 5.00

13008

130081011
ref: 13008

RING-SET-PISTON,STD

€ 46.00

13024

130241014
ref: 13024

RING-SET-PISTON LL,O/

€ 64.50

13025

130251014
ref: 13025

RING-SET-PISTON L,O/S

€ 29.50

13027

130271047
ref: 13027

PISTON-ENGINE LL,O/S

€ 83.00

13029

130291048
ref: 13029

PISTON-ENGINE L,O/S 0

€ 60.00

92001

92003202
ref: 92001

BOLT

€ 4.00

92033

92036021
ref: 92033

CIRCLIP-PISTON PIN

€ 0.50

92043

920431037
ref: 92043

PIN,DOWEL,10X8.2X14

€ 0.50

92055

92055105
ref: 92055

RING-O,CHAIN TUNNEL

€ 23.50

92055A

920551149
ref: 92055A

RING-O,10MM

€ 4.00

92055B

920551150
ref: 92055B

O-RING, 10MM

€ 5.50
