IGNITION SWITCH/LOCKS/REFLECTORS

KZ250W1 LTD 1983 USA CANADA BELT DRIVE

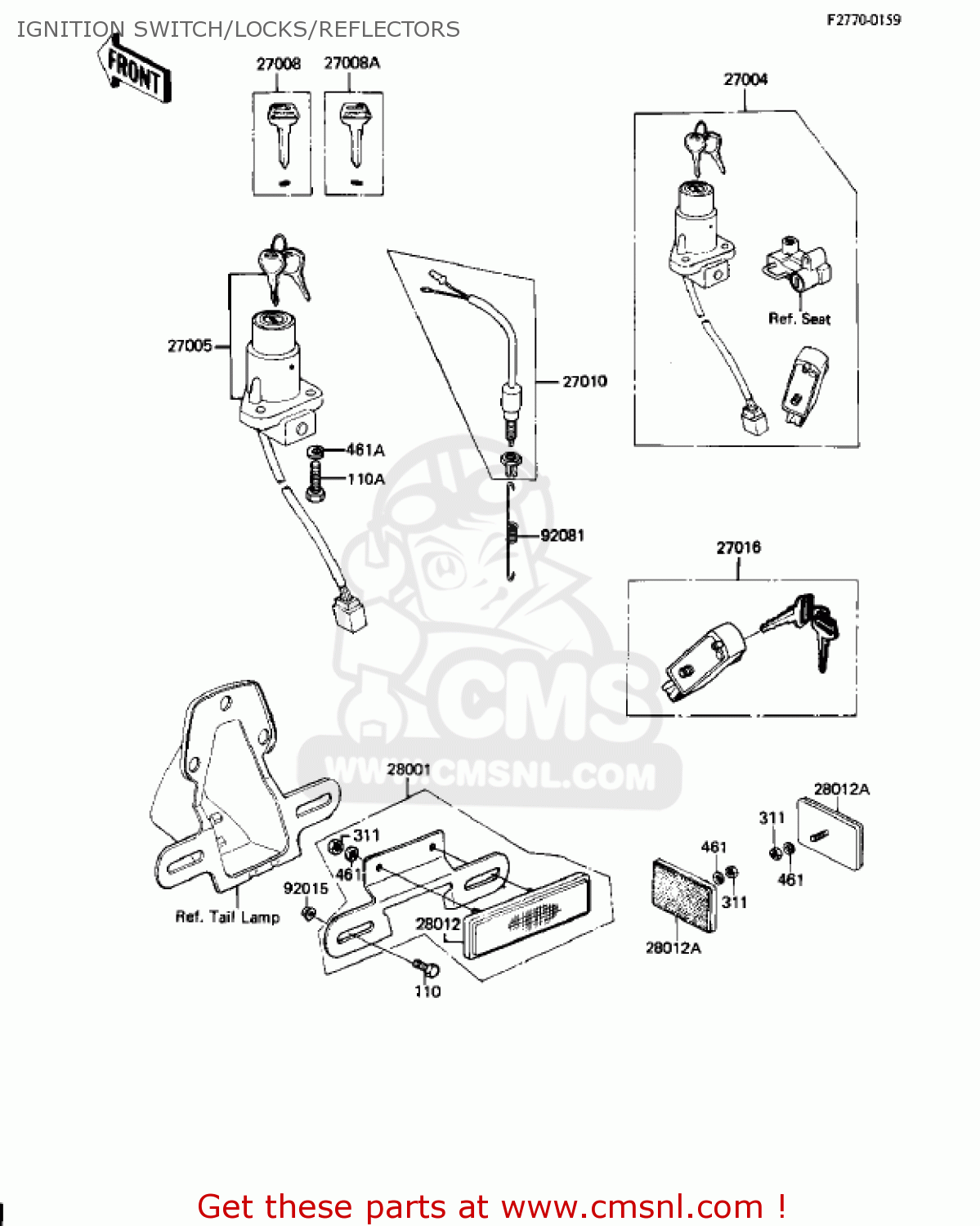

Ignition switch/locks/reflectors diagram KZ250W1 LTD 1983 USA CANADA BELT DRIVE

prices are in EUR

ref

part #

description

quantity

27004

270045174
ref: 27004

SWITCH-ASSY

€ 182.50

27005

270051027
ref: 27005

SWITCH ASSY,IGNITION

€ 125.00

27008

270081034
ref: 27008
(OPTION)

KEY,BLANK

€ 13.00

27008A

270081035
ref: 27008A
(OPTION)

KEY,BLANK

€ 12.50

27016

270165029
ref: 27016

LOCK ASSY,HELMET

€ 73.50

28001

280011012
ref: 28001

REFLECTOR-ASSY-REFLEX

€ 38.50

28012

280121005
ref: 28012

REFLECTOR-REFLEX,RR

€ 16.50

28012A

280121009
ref: 28012A

REFLECTOR-REFLEX,FR

€ 16.00

92015

920151078
ref: 92015

NUT,6M/M

€ 1.50

92081

27011017
ref: 92081

SPRING,BRK LIGHT SW

€ 6.50

110

112G0612
ref: 110

BOLT-UPSET

€ 2.50

110A

112G0616
ref: 110A

BOLT UPSET,6X16

€ 1.00

311

311B0500
ref: 311

NUT-HEX

€ 0.50

461

461F0500
ref: 461

WASHER-SPRING,5MM

€ 0.50

461A

461F0600
ref: 461A

WASHER-SPRING,6MM

€ 0.50
