STARTER MOTOR/STARTER CLUTCH

KZ1000R2 EDDIE LAWSON REPLICA 1983 USA CANADA

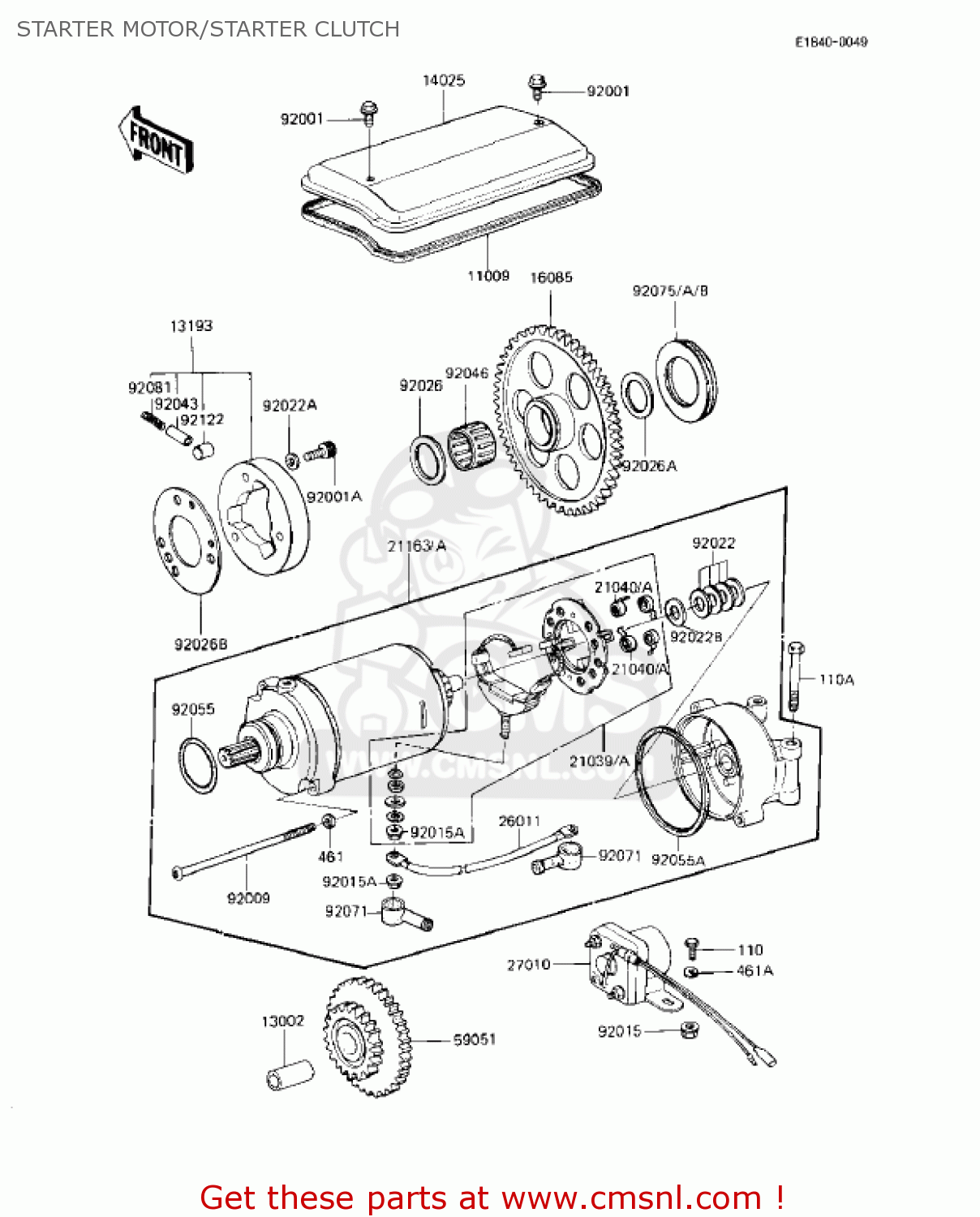

Starter motor/starter clutch diagram KZ1000R2 EDDIE LAWSON REPLICA 1983 USA CANADA

STARTER MOTOR/STARTER CLUTCH KZ1000R2 EDDIE LAWSON REPLICA 1983 USA CANADA
STARTER MOTOR/STARTER CLUTCH KZ1000R2 EDDIE LAWSON REPLICA 1983 USA CANADA
STARTER MOTOR/STARTER CLUTCH KZ1000R2 EDDIE LAWSON REPLICA 1983 USA CANADA
prices are in EUR
ref
part #
description
quantity
11009
21166001
ref: 11009
GASKET,STARTER COVER (NAS)
21166001
€ 23.50
13002
13002007
ref: 13002
PIN
13002007
€ 13.00
13193
131931006
ref: 13193
CLUTCH-ASSY-ONEWAY
131931006
€ 150.50
14025
140251378
ref: 14025
COVER,STARTER,BLACK
140251378
€ 27.00
16085
160851012
ref: 16085
GEAR,STARTER CLUTCH
160851012
€ 180.50
21039
210391005
ref: 21039
BRUSH,CARBON
210391005
€ 112.50
21039A
210391053
ref: 21039A
BRUSH,CARBON
210391053
€ 89.50
21040
210401002
ref: 21040
SPRING-BRUSH
210401002
€ 5.50
21040A
210401003
ref: 21040A
SPRING-BRUSH
210401003
€ 6.00
21163
211631143
ref: 21163
(SUBSTITUTES 21163-1
STARTER-ELECTRIC
211631143
€ 666.00
21163
211631143
ref: 21163
(SUBSTITUTES 21163-1
STARTER-ELECTRIC
211631143
€ 666.00
21163A
211631143
ref: 21163A
(JKAKZCR1 DA001101)
STARTER-ELECTRIC
211631143
€ 666.00
26011
260111135
ref: 26011
WIRE-LEAD,STARTER MOT
260111135
€ 51.50
27010
270101047
ref: 27010
SWITCH,MAGNETIC
270101047
€ 130.00
59051
21167002
ref: 59051
GEAR-STARTING MOTOR
21167002
€ 89.00
92001
920011525
ref: 92001
BOLT,6X10,BLACK
920011525
€ 2.00
92001A
120P0816
ref: 92001A
BOLT-SOCKET
120P0816
€ 2.50
92009
21015005
ref: 92009
SCREW-PAN HEAD,6X110
21015005
€ 5.50
92015
920151078
ref: 92015
NUT,6M/M
920151078
€ 1.50
92015A
920151078
ref: 92015A
NUT,6M/M
920151078
€ 1.50
92022
21025011
ref: 92022
WASHER, THRUST, 0.2T
21025011
€ 4.00
92022A
920221108
ref: 92022A
WASHER,8.5X13.5X2
920221108
€ 2.50
92022B
920221132
ref: 92022B
WASHER,9.1X18X0.8
920221132
€ 4.00
92026
920261031
ref: 92026
SPACER,(I=25,O=38)
920261031
€ 7.00
92026A
920261033
ref: 92026A
SPACER,25X34X2.0
920261033
€ 4.50
92026B
92026112
ref: 92026B
SPACER,45X79.5X0.5 (NAS)
92026112
€ 7.50
92043
92043087
ref: 92043
PIN
92043087
€ 8.00
92046
920461022
ref: 92046
BEARING-NEEDLE,K25302
920461022
€ 24.50
92055
21027004
ref: 92055
ORING-STARTING MOTR
21027004
€ 6.50
92055A
920551086
ref: 92055A
O RING,64MM
920551086
€ 6.50
92071
21017017
ref: 92071
GROMMET-CORD
21017017
€ 6.50
92075
920751129
ref: 92075
DAMPER,T=6.3
920751129
€ 18.00
92075A
920751130
ref: 92075A
DAMPER,T=7.3
920751130
€ 15.00
92075B
920751131
ref: 92075B
DAMPER,T=8.3
920751131
€ 13.50
92081
92081110
ref: 92081
SPRING
92081110
€ 3.00
92122
92122001
ref: 92122
ROLLER,15X14.4
92122001
€ 7.50
110
112G0612
ref: 110
BOLT-UPSET
112G0612
€ 2.50
110A
920011456
ref: 110A
BOLT,6X55
920011456
€ 3.00
461
461F0500
ref: 461
WASHER-SPRING,5MM
461F0500
€ 0.50
461A
461F0600
ref: 461A
WASHER-SPRING,6MM
461F0600
€ 0.50
