FRAME FITTINGS

KZ1000R2 EDDIE LAWSON REPLICA 1983 USA CANADA

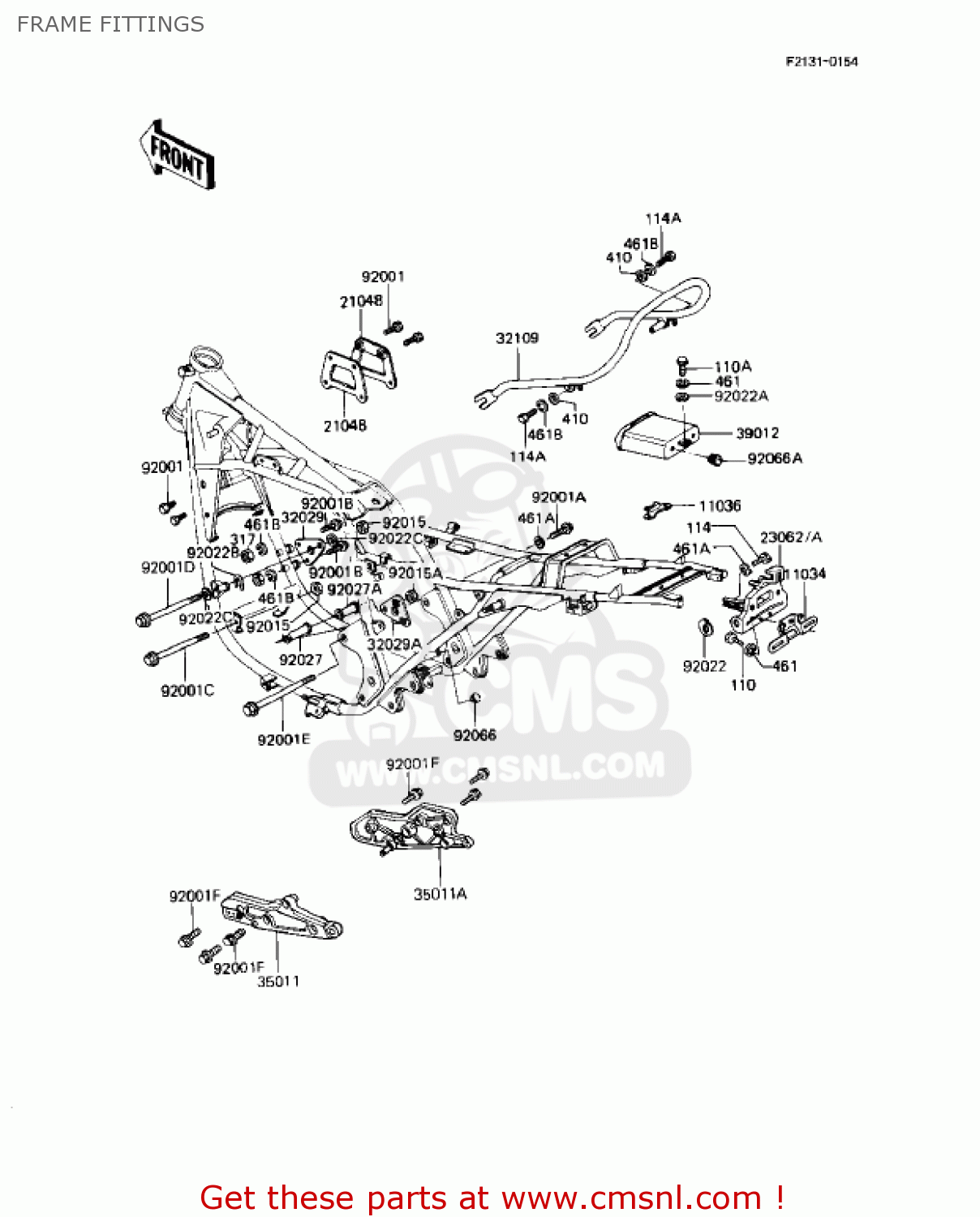

Frame fittings diagram KZ1000R2 EDDIE LAWSON REPLICA 1983 USA CANADA

FRAME FITTINGS KZ1000R2 EDDIE LAWSON REPLICA 1983 USA CANADA
FRAME FITTINGS KZ1000R2 EDDIE LAWSON REPLICA 1983 USA CANADA
FRAME FITTINGS KZ1000R2 EDDIE LAWSON REPLICA 1983 USA CANADA
prices are in EUR
ref
part #
description
quantity
11034
110341922
ref: 11034
BRACKET,LICENSE PLATE
€ 13.50
11036
110361070
ref: 11036
BRACKET-A,STORAGE
€ 7.00
21048
210481001
ref: 21048
PLATE-COIL
210481001
€ 14.00
23062
230621032
ref: 23062
BRACKET-COMP,TAIL LAM
230621032
€ 117.50
23062A
230621032
ref: 23062A
BRACKET-COMP,TAIL LAM
230621032
€ 117.50
32029
320291142
ref: 32029
BRACKET-ENGINE,FR,UPP
320291142
€ 13.00
32029A
320291143
ref: 32029A
BRACKET-ENGINE,RR
€ 15.00
32109
321091029
ref: 32109
GRIP-FRAME,BLACK
€ 129.50
35011
350111207
ref: 35011
STAY,MUFFLER,LH
€ 262.50
35011A
350111208
ref: 35011A
STAY,MUFFLER,RH
€ 285.00
39012
390121014
ref: 39012
CASE-STORAGE
€ 25.00
92001
92001137
ref: 92001
BOLT,HEX HEAD,6M/M
92001137
€ 4.00
92001A
920011612
ref: 92001A
BOLT,FLANGED,8X40,BLA
920011612
€ 3.00
92001B
920011616
ref: 92001B
BOLT,FLANGED,8X65
920011616
€ 5.50
92001C
920011620
ref: 92001C
BOLT
920011620
€ 14.00
92001D
920011624
ref: 92001D
BOLT FLANGED
920011624
€ 26.00
92001E
920011655
ref: 92001E
BOLT,FLANGED,12X28.5,
920011655
€ 27.00
92001F
131J0835
ref: 92001F
BOLT-FLANGED,8X35,BLA
131J0835
€ 2.50
92015
920151189
ref: 92015
NUT,LOCK,10MM,BLACK
920151189
€ 4.50
92015A
920151190
ref: 92015A
NUT,LOCK,12MM,BLACK
920151190
€ 4.50
92022
920221230
ref: 92022
WASHER,SIGNAL LAMP BR
€ 7.00
92022A
92022125
ref: 92022A
WASHER,6.5X20X1.6
92022125
€ 1.00
92022B
920221259
ref: 92022B
WASHER,U FORMED
920221259
€ 4.50
92022C
920221022
ref: 92022C
WASHER,10.5X22X4.5
920221022
€ 3.00
92027
920271310
ref: 92027
COLLAR,13X25X54
920271310
€ 27.50
92027A
920271311
ref: 92027A
COLLAR,13X25X29.5
920271311
€ 17.50
92066
920661034
ref: 92066
PLUG,FRAME END
920661034
€ 3.00
92066A
92074038
ref: 92066A
PLUG,11X3.2
92074038
€ 4.50
110
112G0612
ref: 110
BOLT-UPSET
112G0612
€ 2.50
110A
112G0616
ref: 110A
BOLT UPSET,6X16
112G0616
€ 1.00
114
115G0816
ref: 114
BOLT-HEX,HEAD 8X16
115G0816
€ 0.50
114A
115C0870
ref: 114A
BOLT-SMALL-UPSET,8X70
€ 3.00
317
317C0800
ref: 317
NUT-HEX-SMALL,8MM,BLA
317C0800
€ 0.50
410
920221554
ref: 410
WASHER,PLAIN,8MM
920221554
€ 3.00
461
461F0600
ref: 461
WASHER-SPRING,6MM
461F0600
€ 0.50
461A
461F0800
ref: 461A
WASHER-SPRING,8MM
461F0800
€ 0.50
461B
461K0800
ref: 461B
WASHER-SPRING,8MM,BLA
461K0800
€ 1.50
