FRONT FORK

KZ1000R2 EDDIE LAWSON REPLICA 1983 USA CANADA

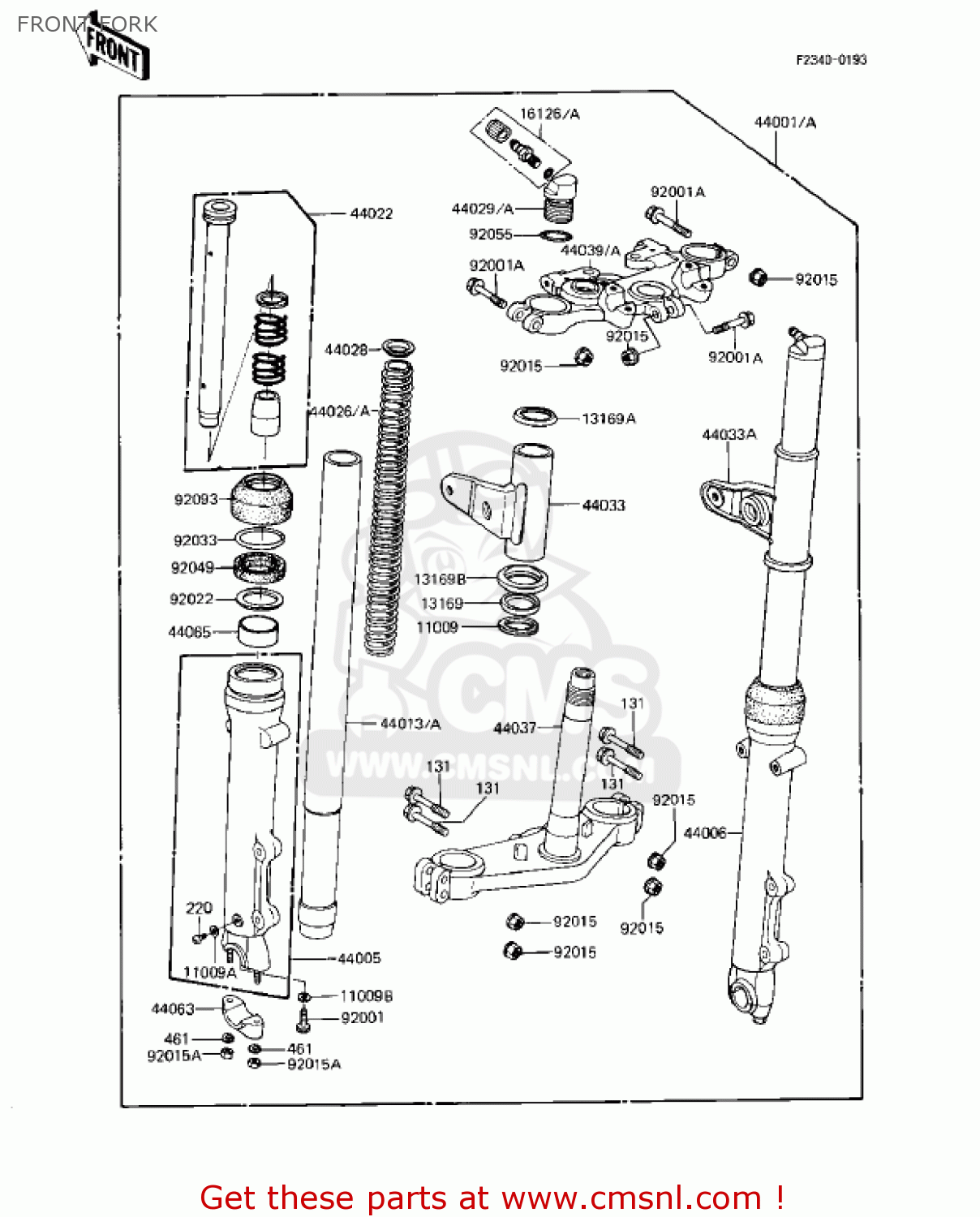

Front fork diagram KZ1000R2 EDDIE LAWSON REPLICA 1983 USA CANADA

FRONT FORK KZ1000R2 EDDIE LAWSON REPLICA 1983 USA CANADA
FRONT FORK KZ1000R2 EDDIE LAWSON REPLICA 1983 USA CANADA
FRONT FORK KZ1000R2 EDDIE LAWSON REPLICA 1983 USA CANADA
prices are in EUR
ref
part #
description
quantity
11009
110091015
ref: 11009
GASKET,FORK COVER (NAS)
110091015
€ 7.00
11009A
44045002
ref: 11009A
GASKET,FORK DRAIN PLU (NAS)
44045002
€ 3.00
11009B
44045057
ref: 11009B
GASKET (NAS)
44045057
€ 3.00
13169
131691020
ref: 13169
PLATE,FORK COVER GUID
131691020
€ 20.50
13169A
131691498
ref: 13169A
PLATE,FORK COVER,UPP
131691498
€ 3.50
13169B
131691499
ref: 13169B
PLATE,FORK COVER,LWR
131691499
€ 4.50
16126
161261052
ref: 16126
VALVE,AIR
161261052
€ 22.00
16126A
161261052
ref: 16126A
VALVE,AIR
161261052
€ 22.00
44001
440011367
ref: 44001
FRONT FORK
€ 0.00
44001A
440011468
ref: 44001A
FRONT FORK
€ 1,268.00
44005
440051094
ref: 44005
PIPE-LEFT FORK OUTER
440051094
€ 253.00
44006
440061094
ref: 44006
PIPE-RIGHT FORK OUTER
€ 240.00
44013
440131086
ref: 44013
PIPE-FORK INNER
€ 187.00
44013A
440131123
ref: 44013A
FORK INNER PIPE
€ 237.00
44022
440221055
ref: 44022
CYLINDER FORK
€ 76.50
44026
440261085
ref: 44026
SPRING-FRONT FORK
440261085
€ 62.50
44026A
440261194
ref: 44026A
SPRING-FRONT FORK
€ 43.50
44028
440281004
ref: 44028
GUIDE-FORK SPRING
440281004
€ 7.50
44029
440291021
ref: 44029
SEAT-FORK SPRING
440291021
€ 67.50
44029A
440291044
ref: 44029A
SEAT-FORK SPRING,LH
440291044
€ 33.00
44033
440331104
ref: 44033
COVER-FORK,LH,F.BLACK
€ 78.50
44033A
440331105
ref: 44033A
COVER-FORK,RH,F.BLACK
€ 78.50
44037
440371072
ref: 44037
HOLDER-FORK UNDER
€ 356.00
44039
440391045
ref: 44039
HOLDER-FORK UPPER
€ 199.50
44039A
440391070
ref: 44039A
HOLDER-FORK UPPER
€ 167.00
44063
440631006
ref: 44063
HOLDER-FRONT AXLE
440631006
€ 25.50
44065
440651091
ref: 44065
BUSHING-FRONT FORK,OU
440651091
€ 17.00
92001
44041040
ref: 92001
BOLT-FORK CYLINDER
44041040
€ 4.50
92001A
920011572
ref: 92001A
BOLT,FLANGED,8X57,BLA
920011572
€ 3.00
92015
920151408
ref: 92015
NUT,FLANGED,8MM
920151408
€ 1.00
92015A
920151205
ref: 92015A
NUT,U,8MM,BLACK
920151205
€ 3.00
92022
920221262
ref: 92022
WASHER,FORK OUTER PIP
920221262
€ 5.50
92033
920331047
ref: 92033
SNAP RING,FORK OUTER
920331047
€ 4.00
92049
920491066
ref: 92049
SEAL-OIL,FRONT FORK
920491066
€ 18.50
92055
920551051
ref: 92055
ORING,FORK TOP CAP
920551051
€ 3.50
92093
920931051
ref: 92093
SEAL,FORK
920931051
€ 24.50
131
131J0855
ref: 131
BOLT-FLANGED,8X55,BLA
€ 2.50
220
220B0408
ref: 220
SCREW-PAN-CROS
220B0408
€ 0.50
461
461K0800
ref: 461
WASHER-SPRING,8MM,BLA
461K0800
€ 1.50
