AIR CLEANER

KZ1000R2 EDDIE LAWSON REPLICA 1983 USA CANADA

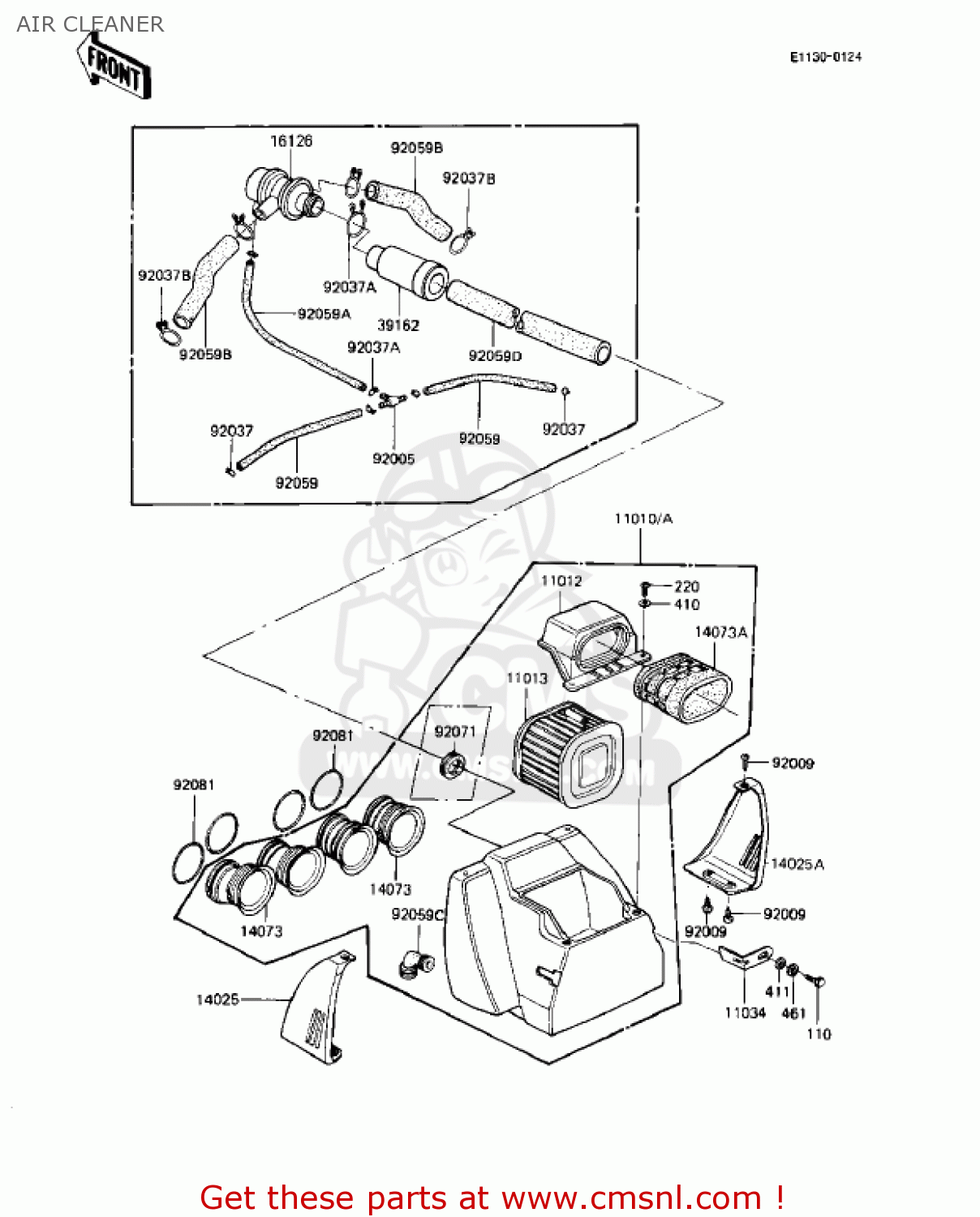

Air cleaner diagram KZ1000R2 EDDIE LAWSON REPLICA 1983 USA CANADA

AIR CLEANER KZ1000R2 EDDIE LAWSON REPLICA 1983 USA CANADA
AIR CLEANER KZ1000R2 EDDIE LAWSON REPLICA 1983 USA CANADA
AIR CLEANER KZ1000R2 EDDIE LAWSON REPLICA 1983 USA CANADA
prices are in EUR
ref
part #
description
quantity
11010
110101112
ref: 11010
CN
FILTER-ASSY-AIR
€ 294.00
11010A
110101142
ref: 11010A
US
FILTER-ASSY-AIR
€ 380.50
11012
110121167
ref: 11012
US
CAP,AIR FILTER
110121167
€ 23.50
11013
110131037
ref: 11013
ELEMENT-AIR FILTER
110131037
€ 18.00
11034
32070038
ref: 11034
BRACKET,AIR FILTER
32070038
€ 3.50
14025
140251539
ref: 14025
COVER,AIR FILTER,LH,B
€ 44.00
14025A
140251540
ref: 14025A
COVER,AIR FILTER,RH,B
€ 47.50
14073
140731048
ref: 14073
DUCT,AIR FILTER,OUTLE
140731048
€ 16.00
14073A
140731049
ref: 14073A
DUCT,AIR FILTER,INTAK
140731049
€ 22.00
16126
161261014
ref: 16126
US
VALVE,AIR SWITCH
161261014
€ 135.50
39162
391621003
ref: 39162
US
SILENCER-INTAKE
391621003
€ 59.00
92005
920051017
ref: 92005
US
FITTING,TUBE
920051017
€ 6.50
92009
920091138
ref: 92009
US
SCREW,TAPPING,5X12,BL
920091138
€ 2.50
92037
92037072
ref: 92037
US
CLAMP,TUBE
92037072
€ 4.00
92037A
920371076
ref: 92037A
US
CLAMP,TUBE
920371076
€ 4.00
92037B
92037213
ref: 92037B
US
CLAMP, BREATHER TUBE
92037213
€ 2.50
92059
920591162
ref: 92059
US
TUBE, VACUUM, LONG
920591162
€ 12.50
92059A
920591162
ref: 92059A
US
TUBE, VACUUM, LONG
920591162
€ 12.50
92059B
920591155
ref: 92059B
US
TUBE,14X20X89
920591155
€ 10.50
92059C
920591156
ref: 92059C
US
TUBE,AIR FILTER
920591156
€ 11.00
92059D
920591161
ref: 92059D
US
TUBE,14X20X325
920591161
€ 8.50
92071
920711042
ref: 92071
US
GROMMET
920711042
€ 4.50
92081
920811457
ref: 92081
SPRING,COIL,BLACK
920811457
€ 7.00
110
112G0612
ref: 110
BOLT-UPSET
112G0612
€ 2.50
220
220B0612
ref: 220
SCREW-PAN HEAD,6X12
220B0612
€ 1.00
410
410B0600
ref: 410
WASHER-PLAIN-SMALL,6M
410B0600
€ 0.50
411
411B0600
ref: 411
WASHER-PLAIN,6MM
411B0600
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
461F0600
€ 0.50
