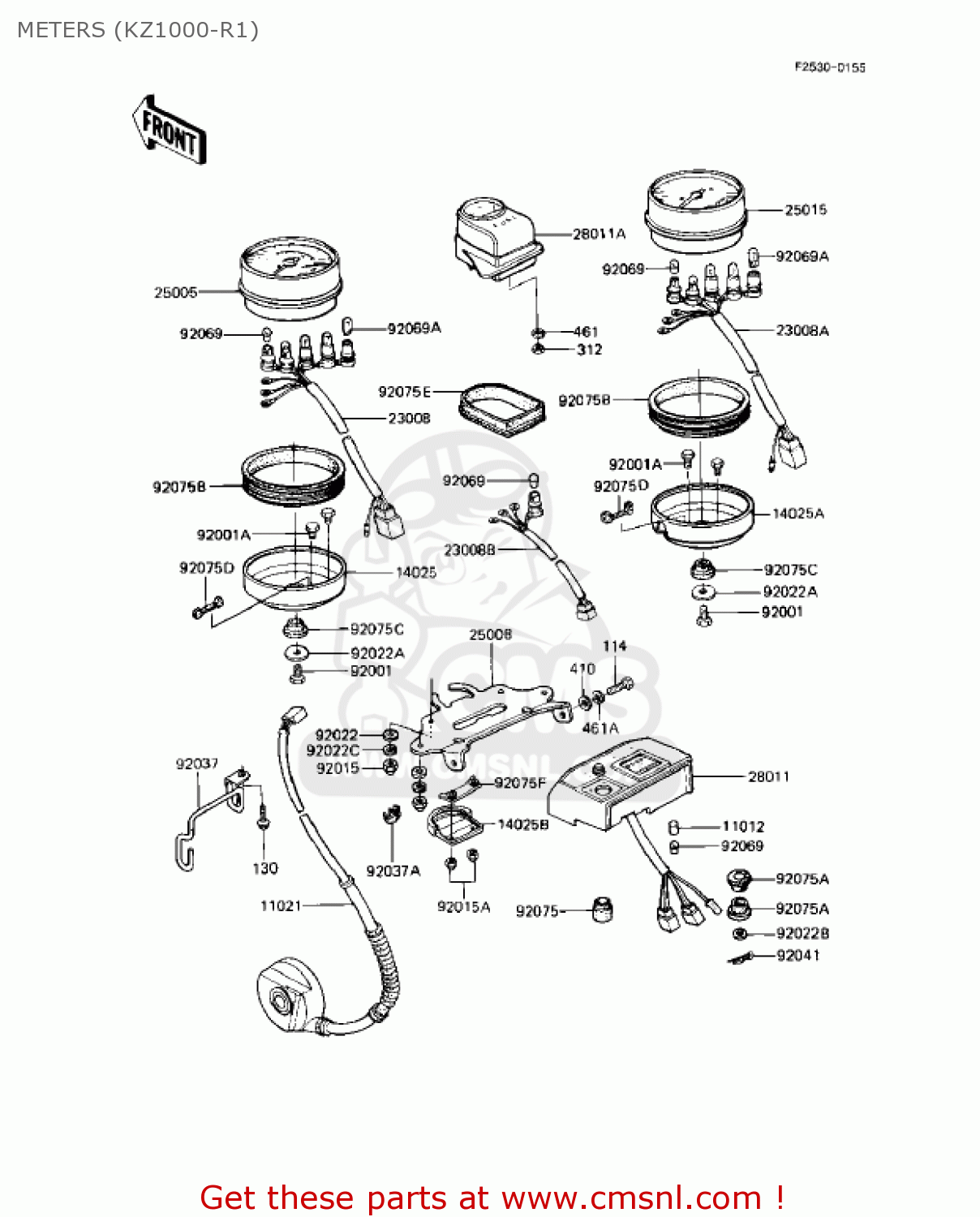

METERS (KZ1000-R1)

KZ1000R2 EDDIE LAWSON REPLICA 1983 USA CANADA

Meters (kz1000-r1) diagram KZ1000R2 EDDIE LAWSON REPLICA 1983 USA CANADA

METERS (KZ1000-R1) KZ1000R2 EDDIE LAWSON REPLICA 1983 USA CANADA
METERS (KZ1000-R1) KZ1000R2 EDDIE LAWSON REPLICA 1983 USA CANADA
METERS (KZ1000-R1) KZ1000R2 EDDIE LAWSON REPLICA 1983 USA CANADA
prices are in EUR
ref
part #
description
quantity
11012
110121172
ref: 11012
CAP,BULB,GREEN
€ 2.00
11021
110211011
ref: 11021
CASE-ASSY,SPEED SENSO
€ 507.00
14025
140251344
ref: 14025
COVER,SPEEDOMETER
140251344
€ 57.50
14025A
140251345
ref: 14025A
COVER,TACHOMETER
140251345
€ 57.50
14025B
140251347
ref: 14025B
COVER,FUEL METER
140251347
€ 11.50
23008
230081090
ref: 23008
SOCKET-ASSY,SPEEDOMET
230081090
€ 70.50
23008A
230081091
ref: 23008A
SOCKET-ASSY TACHOME
€ 70.50
23008B
230081092
ref: 23008B
SOCKET-ASSY,FUEL METE
230081092
€ 31.50
25005
250051106
ref: 25005
SPEEDOMETER,MPH
250051106
€ 595.00
25008
250081034
ref: 25008
BRACKET-METER
€ 118.00
25015
250151082
ref: 25015
TACHOMETER
€ 390.00
28011
280111011
ref: 28011
METER,TOTAL & TRIP
€ 629.00
28011A
280111025
ref: 28011A
METER,FUEL
280111025
€ 127.00
92001
920011442
ref: 92001
BOLT,6X8
€ 2.50
92001A
92003204
ref: 92001A
BOLT
92003204
€ 3.00
92015
322C0600
ref: 92015
NUT-CAP,6MM,BLACK
322C0600
€ 1.50
92015A
920151144
ref: 92015A
NUT,CAP,4MM,BLACK
920151144
€ 3.50
92022
411F0600
ref: 92022
WASHER-PLAIN,6MM,BLAC
411F0600
€ 0.50
92022A
920221248
ref: 92022A
WASHER,6.5X26X1,BLACK
920221248
€ 3.50
92022B
92022263
ref: 92022B
WASHER,PLAIN,6MM
92022263
€ 1.50
92022C
461K0600
ref: 92022C
WASHER-SPRING
461K0600
€ 0.50
92037
920371249
ref: 92037
CLAMP,HOSE
920371249
€ 3.50
92037A
920371358
ref: 92037A
CALIPER HOLDER CLAMP
€ 8.50
92041
92041006
ref: 92041
COTTER
92041006
€ 2.00
92069
92069017
ref: 92069
BULB 12V 1.5W
92069017
€ 4.00
92069A
920691007
ref: 92069A
BULB,12V3.4W
920691007
€ 2.50
92075
920751286
ref: 92075
DAMPER,TRIP METER
920751286
€ 4.50
92075A
920751300
ref: 92075A
DAMPER,TRIP METER
920751300
€ 3.50
92075B
920751315
ref: 92075B
DAMPER,METER
920751315
€ 20.00
92075C
920751316
ref: 92075C
DAMPER
920751316
€ 4.50
92075D
920751317
ref: 92075D
DAMPER
920751317
€ 4.00
92075E
920751318
ref: 92075E
DAMPER,FUEL METER
920751318
€ 16.50
92075F
920751319
ref: 92075F
DAMPER,FUEL METER COV
920751319
€ 3.50
114
115G0818
ref: 114
BOLT SMALL-UPSET
115G0818
€ 2.50
130
130B0608
ref: 130
BOLT,FLANGED,6X8
130B0608
€ 0.50
312
312B0300A
ref: 312
NUT-HEX,3MM
€ 2.00
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
410B0800
€ 0.50
461
461F0300
ref: 461
WASHER-SPRING,3MM
461F0300
€ 0.50
461A
461F0800
ref: 461A
WASHER-SPRING,8MM
461F0800
€ 0.50
