STAND

KZ1000R2 EDDIE LAWSON REPLICA 1983 USA CANADA

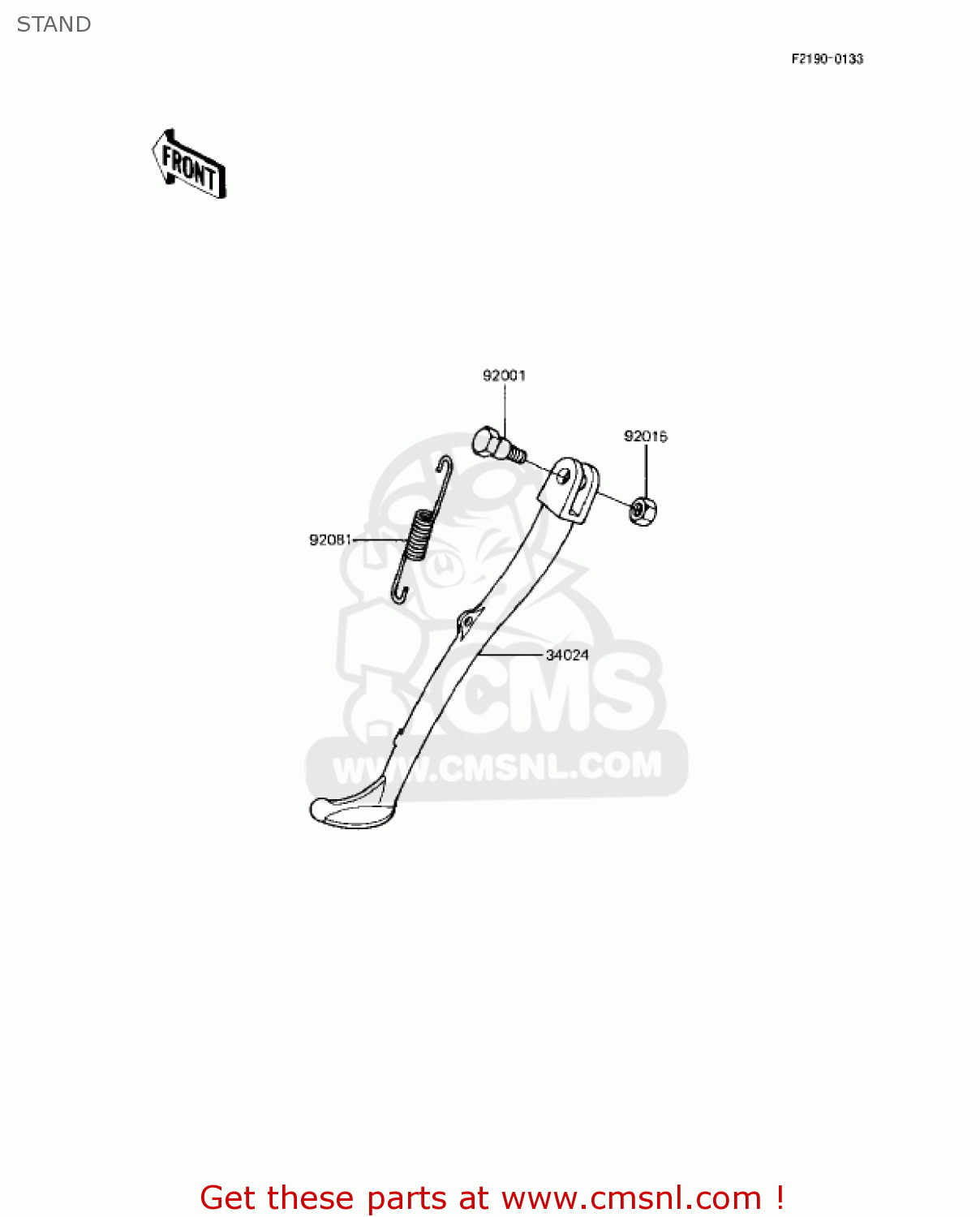

Stand diagram KZ1000R2 EDDIE LAWSON REPLICA 1983 USA CANADA

STAND KZ1000R2 EDDIE LAWSON REPLICA 1983 USA CANADA

STAND KZ1000R2 EDDIE LAWSON REPLICA 1983 USA CANADA

prices are in EUR

ref

part #

description

quantity

34024

340241070
ref: 34024

STAND-SIDE

€ 63.00

92001

920011543
ref: 92001

BOLT,SIDE STAND,BLACK

€ 8.00

92015

920151188
ref: 92015

NUT,LOCK,10MM,BLACK

€ 4.00

92081

920811727
ref: 92081

SPRING,SIDE STAND

€ 7.00
