GENERATOR/REGULATOR

KZ1000R2 EDDIE LAWSON REPLICA 1983 USA CANADA

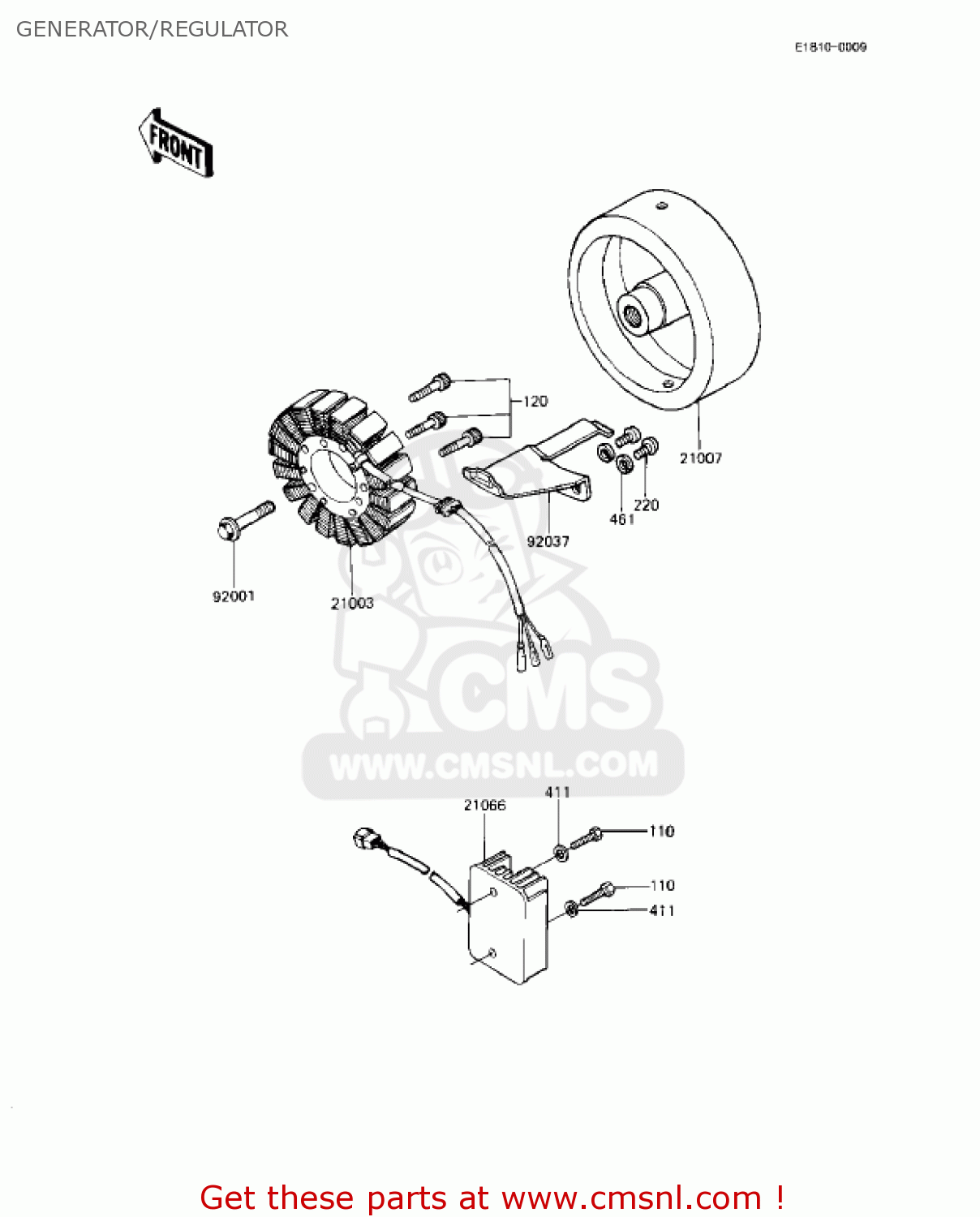

Generator/regulator diagram KZ1000R2 EDDIE LAWSON REPLICA 1983 USA CANADA

prices are in EUR

ref

part #

description

quantity

21003

210031040
ref: 21003

STATOR

€ 551.50

21007

210071036
ref: 21007

ROTOR

€ 500.00

21066

210661018
ref: 21066

REGULATOR-VOLTAGE

€ 185.50

92001

920011146
ref: 92001

BOLT,12X40

€ 6.50

92037

920371214
ref: 92037

CLAMP,HARNESS

€ 4.00

110

112B0614
ref: 110

BOLT-UPSET 6X14

€ 2.50

120

120P0630
ref: 120

BOLT,SOCKET,6X30

€ 4.50

220

220B0512
ref: 220

SCREW-PAN-CROS

€ 0.50

411

411B0600
ref: 411

WASHER-PLAIN,6MM

€ 0.50

461

461F0500
ref: 461

WASHER-SPRING,5MM

€ 0.50
