REAR MASTER CYLINDER (KZ1000-C2)

KZ1000C3 POLICE 1000 1980 USA CANADA

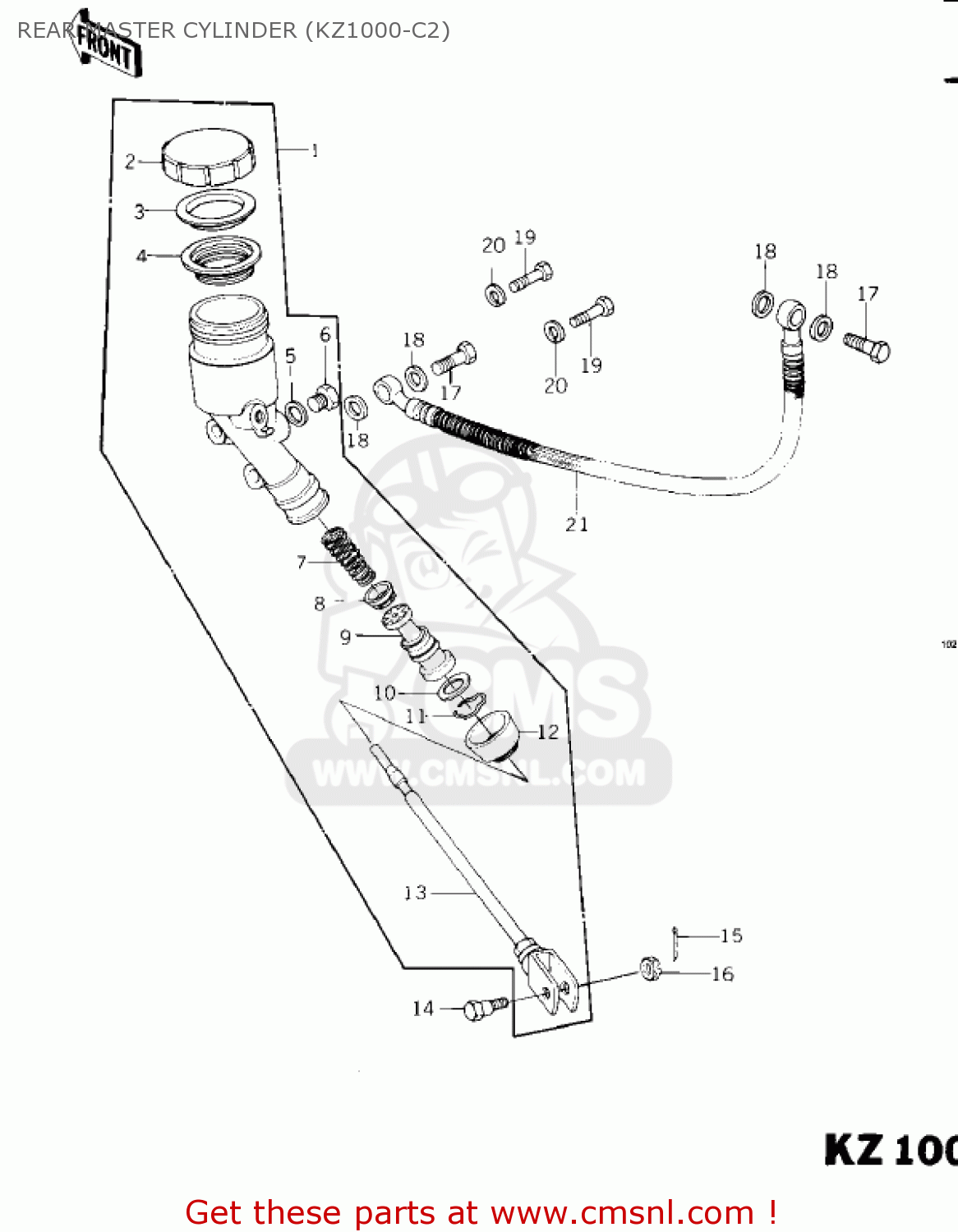

Rear master cylinder (kz1000-c2) diagram KZ1000C3 POLICE 1000 1980 USA CANADA

REAR MASTER CYLINDER (KZ1000-C2) KZ1000C3 POLICE 1000 1980 USA CANADA

REAR MASTER CYLINDER (KZ1000-C2) KZ1000C3 POLICE 1000 1980 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

430151016
ref: 1

CYLINDER ASSY,REAR BR

€ 288.00

2

43026004
ref: 2

CAP, OIL CUP

€ 20.50

3

43027001
ref: 3

PLATE-MASTER CYLINDER

€ 4.50

4

43028003
ref: 4

DIAPHRAGM

€ 14.00

5

43079002
ref: 5

GASKET

€ 6.00

6

920011073
ref: 6

BOLT

€ 8.00

7

43018002
ref: 7

SPRING ASSY-RETURN

€ 22.50

8

43019002
ref: 8

CUP-BRAKE

€ 15.50

9

43072004
ref: 9

PISTON-COMP-BRAKE

€ 65.00

10

43022002
ref: 10

STOPPER-BRAKE

€ 5.50

11

43058004
ref: 11

RING,ROD STOPPER

€ 4.50

12

43024003
ref: 12

COVER-SEAL

€ 15.00

13

430111007
ref: 13

ROD,BRAKE

€ 47.50

14

92003198
ref: 14

BOLT

€ 10.50

15

550D2020
ref: 15

PIN-COTTER,2.0X20

€ 0.50

16

321B0800
ref: 16

NUT-CASTLE,8MM

€ 3.00

17

920021888
ref: 17

BOLT,OIL,L=23

€ 3.50

18

43067001
ref: 18

WASHER,10.5X15X1.5

€ 1.50

19

920011577
ref: 19

BOLT,FLANGED,8X35

€ 2.50

20

461F0800
ref: 20

WASHER-SPRING,8MM

€ 0.50

21

43059031
ref: 21

HOSE, REAR MASTER

€ 98.00
