CLUTCH ('78 C1/C1A)

KZ1000C3 POLICE 1000 1980 USA CANADA

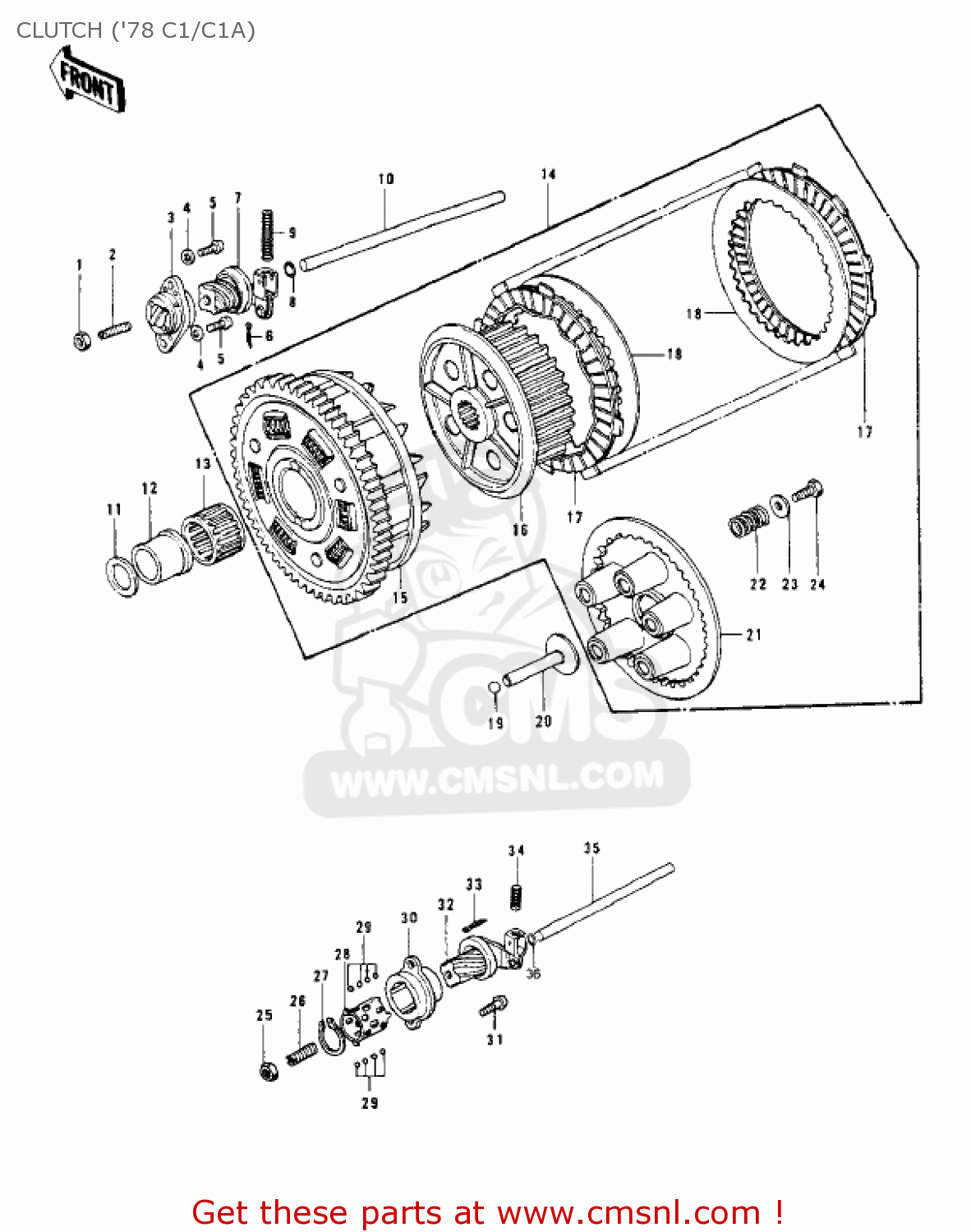

Clutch ('78 c1/c1a) diagram KZ1000C3 POLICE 1000 1980 USA CANADA

CLUTCH ('78 C1/C1A) KZ1000C3 POLICE 1000 1980 USA CANADA

CLUTCH ('78 C1/C1A) KZ1000C3 POLICE 1000 1980 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

315B0800
ref: 1
E/NO. 1 ~025467

NUT,8MM

€ 0.50

2

92014014
ref: 2
E/NO. 1~025467

SCREW-SLOTTED,8X25

€ 4.00

3

13118007
ref: 3
E/NO. 1~025467

OUTER-CLUTCH RELEASE

€ 16.00

4

411B0600
ref: 4
E/NO. 1~025467

WASHER-PLAIN,6MM

€ 0.50

5

220B0616
ref: 5
E/NO. 1~025467

SCREW-PAN HEAD,6X16

€ 2.50

6

550D1615
ref: 6
E/NO. 1~025467

PIN-COTTER,1.6X15

€ 1.50

7

13102013
ref: 7
E/NO. 1~025467

1NNER-CLUTCH RELEASE

€ 56.50

8

670B1507
ref: 8
E/NO. 1~025467

O RING,7MM

€ 1.00

9

92081069
ref: 9
E/NO. 1~025467

SPRING-CLUTCH RELEASE

€ 4.50

10

13116021
ref: 10
E/NO. 1~025467

ROD-PUSH,CLUTCH

€ 15.50

11

92026022
ref: 11

SPACER,25.5X47X2.5

€ 6.50

12

92028135
ref: 12

BUSHING,CLUTCH

€ 35.50

13

92016028
ref: 13
KTV323723

NUT

€ 9.50

14

130811014
ref: 14

CLUTCH ASSY

€ 636.50

15

130811367
ref: 15

CLUTCH-ASSY

€ 636.50

16

130811367
ref: 16

CLUTCH-ASSY

€ 636.50

17

13088030
ref: 17

PLATE-FRICTION (NAS)

€ 14.50

18

13089022
ref: 18

PLATE-CLUTCH (NAS)

€ 8.50

19

600A1200
ref: 19

BALL-STEEL,3/8

€ 0.50

20

13116022
ref: 20

ROD-PUSH,CLUTCH SPRIN

€ 15.50

21

13187006
ref: 21

PLATE-CLUTCH OPERATIN (NAS)

€ 44.50

22

920811033
ref: 22

SPRING,CLUTCH

€ 6.50

23

13091011
ref: 23

HOLDER,CLUTCH SPRING

€ 2.50

24

112G0618
ref: 24

BOLT-UPSET

€ 0.50

25

318B0800
ref: 25
E/NO. 025468~

NUT,8MM

€ 0.50

26

92014014
ref: 26
E/NO. 025468~

SCREW-SLOTTED,8X25

€ 4.00

27

480J1500
ref: 27
E/NO. 025468~

CIRCLIP-TYPE-C,15MM

€ 1.00

28

13197004
ref: 28
E/NO. 025468~

RETAINER

€ 1.00

29

600A0400
ref: 29
E/NO. 025468~

BALL-STEEL,1/8

€ 2.00

30

13118001
ref: 30
E/NO. 025468~

OUTER-CLUTCH RELEASE

€ 19.50

31

220B0616
ref: 31
E/NO. 025468~

SCREW-PAN HEAD,6X16

€ 2.50

32

13102019
ref: 32
E/NO. 025468~

INNER,CLUTCH RELEASE

€ 48.00

33

550D1615
ref: 33
E/NO. 025468~

PIN-COTTER,1.6X15

€ 1.50

34

92081069
ref: 34
E/NO. 025468~

SPRING-CLUTCH RELEASE

€ 4.50

35

13116021
ref: 35
E/NO. 025468~

ROD-PUSH,CLUTCH

€ 15.50

36

670B1507
ref: 36
E/NO. 025468~

O RING,7MM

€ 1.00
