FRONT BRAKE ('78 C1/C1A)

KZ1000C3 POLICE 1000 1980 USA CANADA

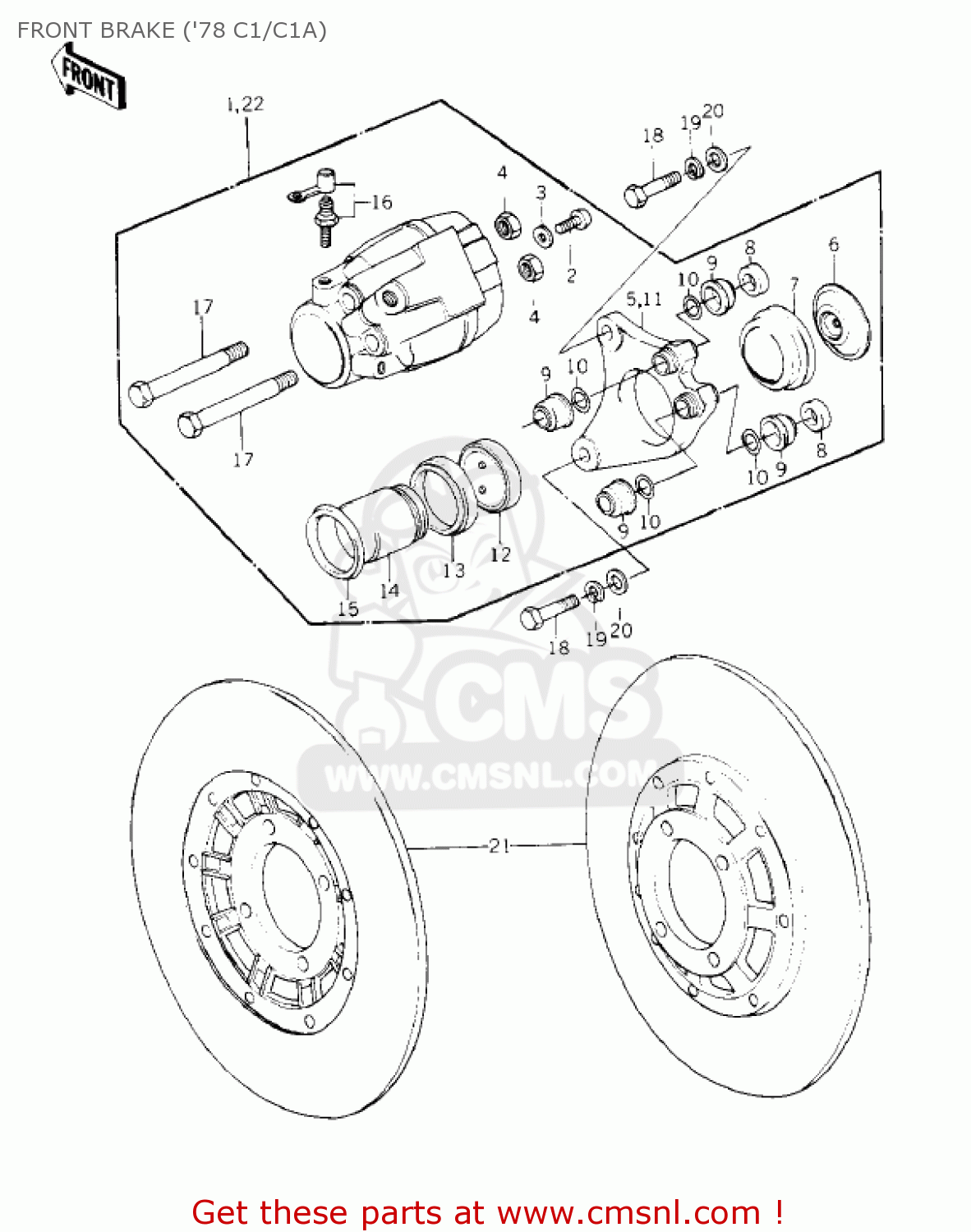

Front brake ('78 c1/c1a) diagram KZ1000C3 POLICE 1000 1980 USA CANADA

FRONT BRAKE ('78 C1/C1A) KZ1000C3 POLICE 1000 1980 USA CANADA

FRONT BRAKE ('78 C1/C1A) KZ1000C3 POLICE 1000 1980 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

43041032
ref: 1

CALIPER ASSY,L.H.

€ 425.50

2

220B0612
ref: 2

SCREW-PAN HEAD,6X12

€ 1.00

3

461F0800
ref: 3

WASHER-SPRING,8MM

€ 0.50

4

315B1000
ref: 4

NUT,10MM

€ 0.50

5

43044009
ref: 5

HOLDER,CALIPER

€ 86.00

6

43040004
ref: 6

SPACER

€ 8.00

7-12

430505001
ref: 7-12
INCLUDES PADS A & B

PAD-ASSY-BRAKE (MCA)

€ 97.50

7

43051001
ref: 7

PAD-BRAKE

€ 45.50

8

43088002
ref: 8

PLUG

€ 6.50

9

43052005
ref: 9

BOOT,SHAFT

€ 7.50

10

43053006
ref: 10

RING-O

€ 7.00

11

43044008
ref: 11

HOLDER,CALIPER

€ 89.00

12

43050011
ref: 12

PAD A

€ 97.50

13

43054003
ref: 13

BOOT,PISTON

€ 10.00

14

430481002
ref: 14

PISTON-CALIPER

€ 80.50

15

43049001
ref: 15

RING-PISTON SEAL

€ 7.50

16

43085001
ref: 16

BREEDER SET

€ 16.50

17

43045006
ref: 17

BOLT

€ 18.00

18

92007032
ref: 18

BOLT,10X41.5

€ 8.50

19

461F1000
ref: 19

WASHER-SPRING,10MM

€ 0.50

20

410B1000
ref: 20

WASHER-PLAIN-SMALL,10

€ 0.50

21

41080007
ref: 21

DISC PLATE,FRONT BRAK

€ 435.00

22

43041033
ref: 22

CALIPER ASSY,R.H.

€ 312.00
