IGNITION (KZ1000-C2)

KZ1000C3 POLICE 1000 1980 USA CANADA

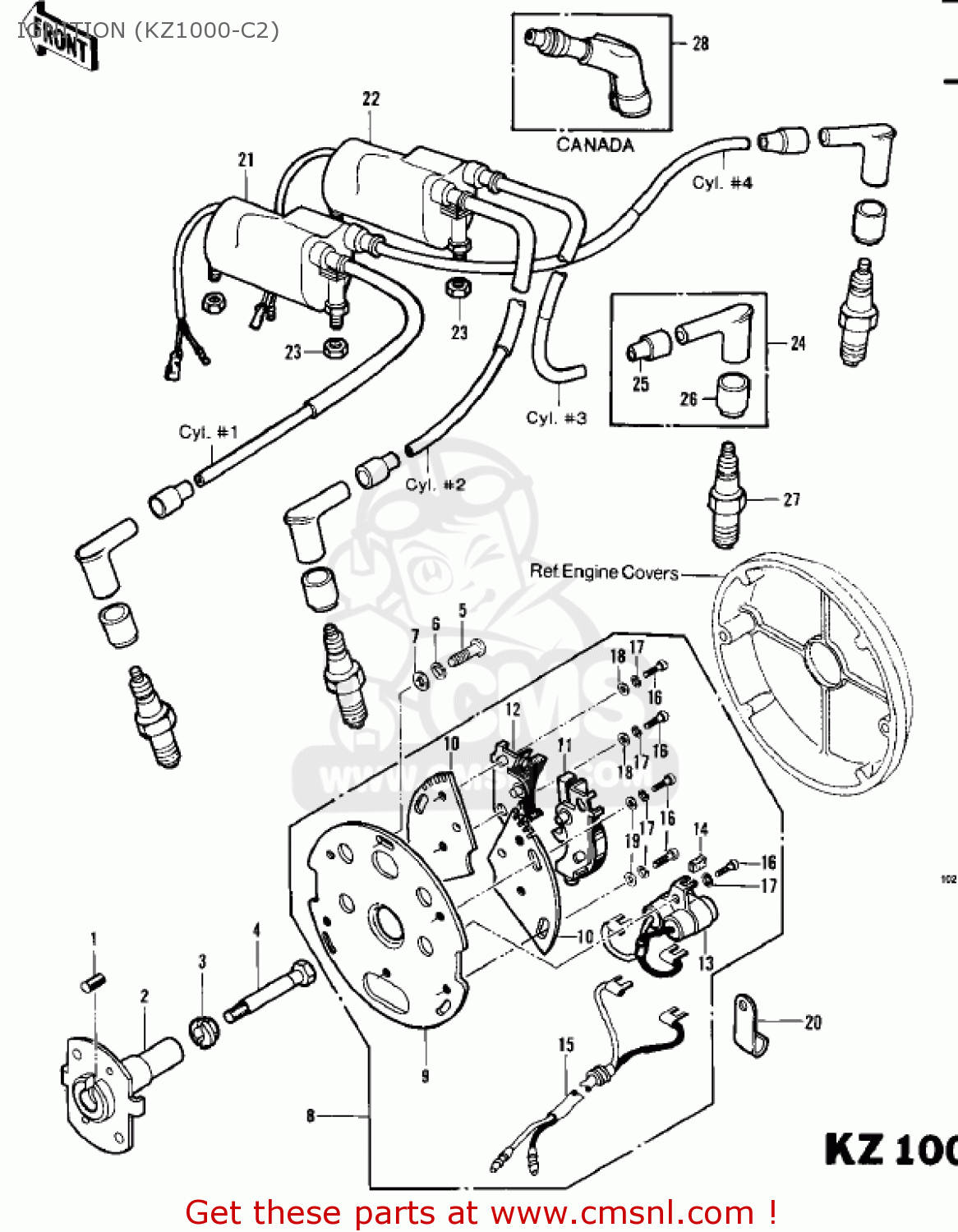

Ignition (kz1000-c2) diagram KZ1000C3 POLICE 1000 1980 USA CANADA

IGNITION (KZ1000-C2) KZ1000C3 POLICE 1000 1980 USA CANADA

IGNITION (KZ1000-C2) KZ1000C3 POLICE 1000 1980 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

555A0408
ref: 1

PIN-SPRING,4X8

€ 2.50

2

211481003
ref: 2

GOVERNOR-BREAKER

€ 141.50

3

92022244
ref: 3

WASHER,BREAKER GOVERN

€ 9.50

4

92001113
ref: 4

BOLT,SPARK ADVANCER

€ 19.50

5

220B0512
ref: 5

SCREW-PAN-CROS

€ 0.50

6

461F0500
ref: 6

WASHER-SPRING,5MM

€ 0.50

7

411B0500
ref: 7

WASHER-PLAIN,5MM

€ 0.50

8

21135011
ref: 8

BREAKER,CONTACT

€ 182.50

9

21021004
ref: 9

PLATE,CONTACT BREAKER

€ 39.50

10

21156010
ref: 10

PLATE,CONTACT BREAKER

€ 12.00

11

21008027
ref: 11
CYL. 1 & 4

BREAKER,CONTACT

€ 43.00

12

21008028
ref: 12
CYL. 2 & 3

BREAKER,CONTACT

€ 43.00

13

21013035
ref: 13

CONDENSER

€ 41.50

14

21019005
ref: 14

BRUSH,OIL

€ 3.00

15

21029037
ref: 15

WIRING HARNESS,MAIN

€ 34.50

16

220B0408
ref: 16

SCREW-PAN-CROS

€ 0.50

17

461F0400
ref: 17

WASHER-SPRING,4MM

€ 0.50

18

410B0400
ref: 18

WASHER-PLAIN-SMALL,4M

€ 0.50

19

410B0400
ref: 19

WASHER-PLAIN-SMALL,4M

€ 0.50

20

21126008
ref: 20

CLAMP,WIRING HARNESS

€ 3.00

21

211211015
ref: 21
CYL. 1 & 4

IGNITION COIL,#1&#4

€ 129.00

22

211211016
ref: 22
CYL. 2 & 3

IGNITION COIL,#2&#3

€ 148.50

23

92017014
ref: 23

NUT,LOCK,6MM

€ 4.00

24

211601014
ref: 24

CAP-ASSY-PLUG

€ 27.00

25

21132005
ref: 25

GROMMET,SPARK PLUG CP

€ 2.50

26

21131004
ref: 26

GROMMET,PLUG CAP

€ 7.00

27

B8ESA
ref: 27

NGK SPARK-PLUG B8ES

€ 3.00

28

21160005
ref: 28
CANADA

CAP-ASSY-PLUG

€ 29.00
