CHASSIS ELECTRICAL EQUIPMENT ('7

KZ1000C3 POLICE 1000 1980 USA CANADA

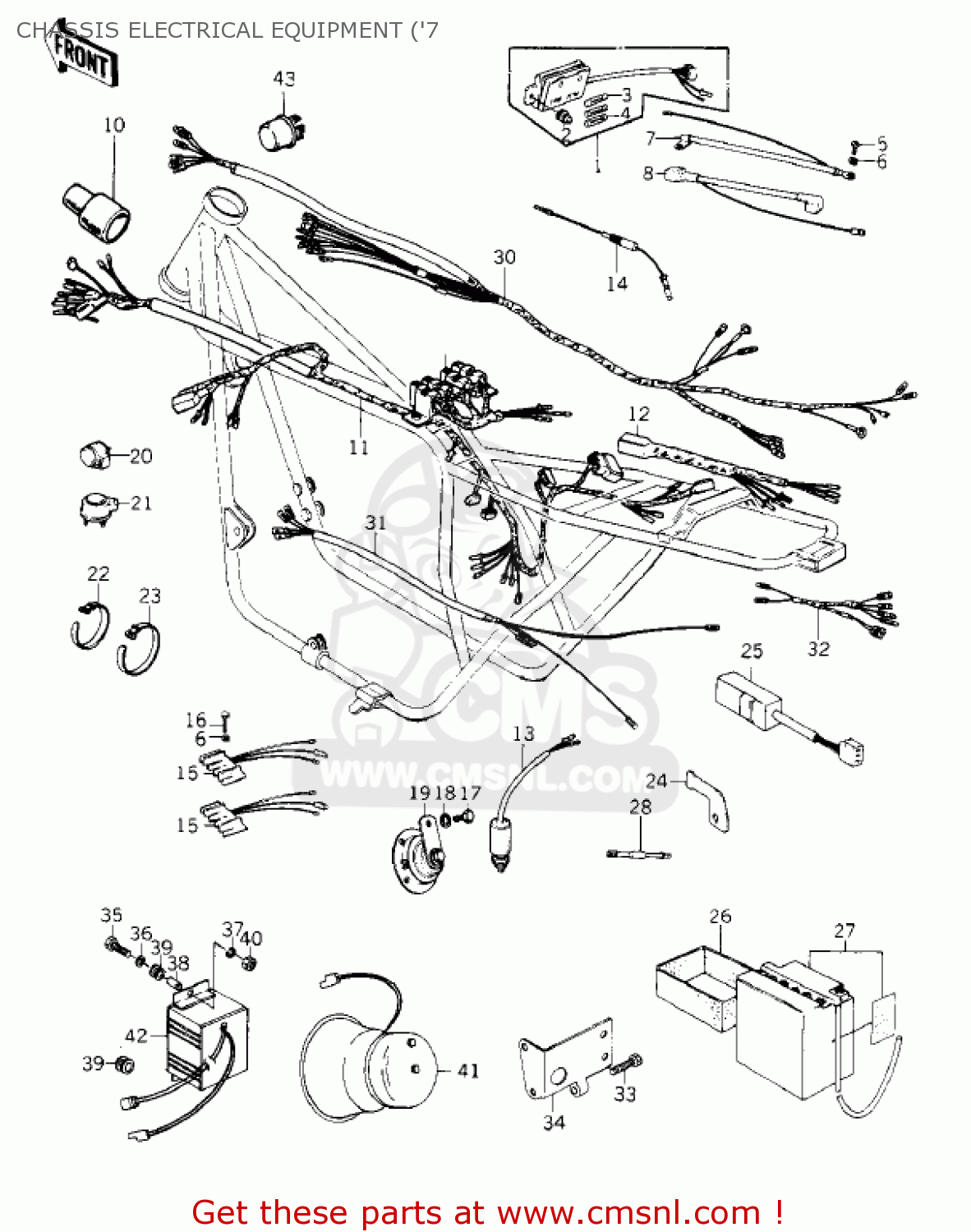

Chassis electrical equipment ('7 diagram KZ1000C3 POLICE 1000 1980 USA CANADA

CHASSIS ELECTRICAL EQUIPMENT ('7 KZ1000C3 POLICE 1000 1980 USA CANADA

CHASSIS ELECTRICAL EQUIPMENT ('7 KZ1000C3 POLICE 1000 1980 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

26004035
ref: 1

FUSE-ASSY

€ 53.50

2

92075279
ref: 2

DAMPER,FUSE

€ 3.50

3

26006005
ref: 3

FUSE 20A

€ 3.50

4

26006003
ref: 4

FUSE 10A

€ 3.00

5

92001137
ref: 5

BOLT,HEX HEAD,6M/M

€ 4.00

6

461F0600
ref: 6

WASHER-SPRING,6MM

€ 0.50

7

26010054
ref: 7

WIRE-LEAD,BATTERY GRO

€ 17.00

8

26010053
ref: 8

WIRE-LEAD,STARTER MOT

€ 18.50

9

26002057
ref: 9

WIRING HARNESS,CENTER

€ 101.50

10

26009003
ref: 10

COVER-WIRING HARNESS

€ 2.00

11

26001145
ref: 11
KZ1000-C1

WIRING HARNESS, MAIN

€ 190.00

11

260011035
ref: 11
KZ1000-C1A

WIRING HARNESS,MAIN

€ 236.00

12

26002031
ref: 12

HARNESS,RR

€ 36.50

13

27010017
ref: 13

SWITCH,BRAKE LAMP

€ 23.50

14

260041001
ref: 14

FUSE ASSEMBLY

€ 6.00

15

21066024
ref: 15

REGULATOR

€ 33.00

16

110B0640
ref: 16

BOLT-HEX HEAD,6X40

€ 2.50

17

110B0816
ref: 17

BOLT-HEX HEAD,8X16

€ 0.50

18

461F0800
ref: 18

WASHER-SPRING,8MM

€ 0.50

19

27003065
ref: 19
KZ1000-C1

HORN

€ 99.00

19

270031006
ref: 19
KZ1000-C1A

HORN

€ 99.00

20

27002011
ref: 20

RELAY-ASSY,TURN SIGNA

€ 69.50

21

27002016
ref: 21

RELAY-ASSY,HAZARD

€ 26.50

22

92072030
ref: 22
KZ1000-C1

BAND,SHORT

€ 3.00

22

92072030
ref: 22
KZ1000-C1A

BAND,SHORT

€ 3.00

23

92072056
ref: 23
KZ1000-C1

BAND,RUBBER

€ 3.00

23

92072056
ref: 23
KZ1000-C1A

BAND,RUBBER

€ 3.00

24

32060014
ref: 24

BRACKET,OUTAGE SWITCH

€ 7.50

25

28019001
ref: 25

SWITCH,OUTAGE INDICTR

€ 46.00

26

32099015
ref: 26

CASE,BATTERY

€ 9.00

27

260121008
ref: 27

BATTERY,12V13AH W/LAB

€ 101.50

28

21066026
ref: 28
KZ1000-C1

REGULATOR-VOLTAGE

€ 13.00

29

56022157
ref: 29

LABEL,BATTERY CAUSION

€ 2.00

30

260011011
ref: 30

WIRING HARNESS,MAIN

€ 99.50

31

260011012
ref: 31

HAZARD WIRING HARNESS

€ 20.50

32

260011013
ref: 32

TAIL LAMP WIRING HARNESS

€ 16.50

33

113B1070
ref: 33
OPTIONAL

BOLT-HEX HEAD

€ 7.00

34

110344001
ref: 34
OPTIONAL

SIREN BRACKET

€ 33.50

35

110B0618
ref: 35
OPTIONAL

BOLT-HEX HEAD,6X18

€ 0.50

36

92022193
ref: 36
OPTIONAL

WASHER,6.5X20X1.6,WHI

€ 3.50

37

461F0600
ref: 37
OPTIONAL

WASHER-SPRING,6MM

€ 0.50

38

92027103
ref: 38
OPTIONAL

COLLAR

€ 2.50

39

92075105
ref: 39
OPTIONAL

DAMPER

€ 2.50

40

310B0600
ref: 40
OPTIONAL

NUT,6MM

€ 0.50

41

?
ref: 41

?

42

?
ref: 42

?

43

270341001
ref: 43

ALTERNATING FLASH RELAY,OPTIONAL

€ 75.00
