FOOTRESTS/STANDS/BRAKE PEDAL ('7

KZ1000C3 POLICE 1000 1980 USA CANADA

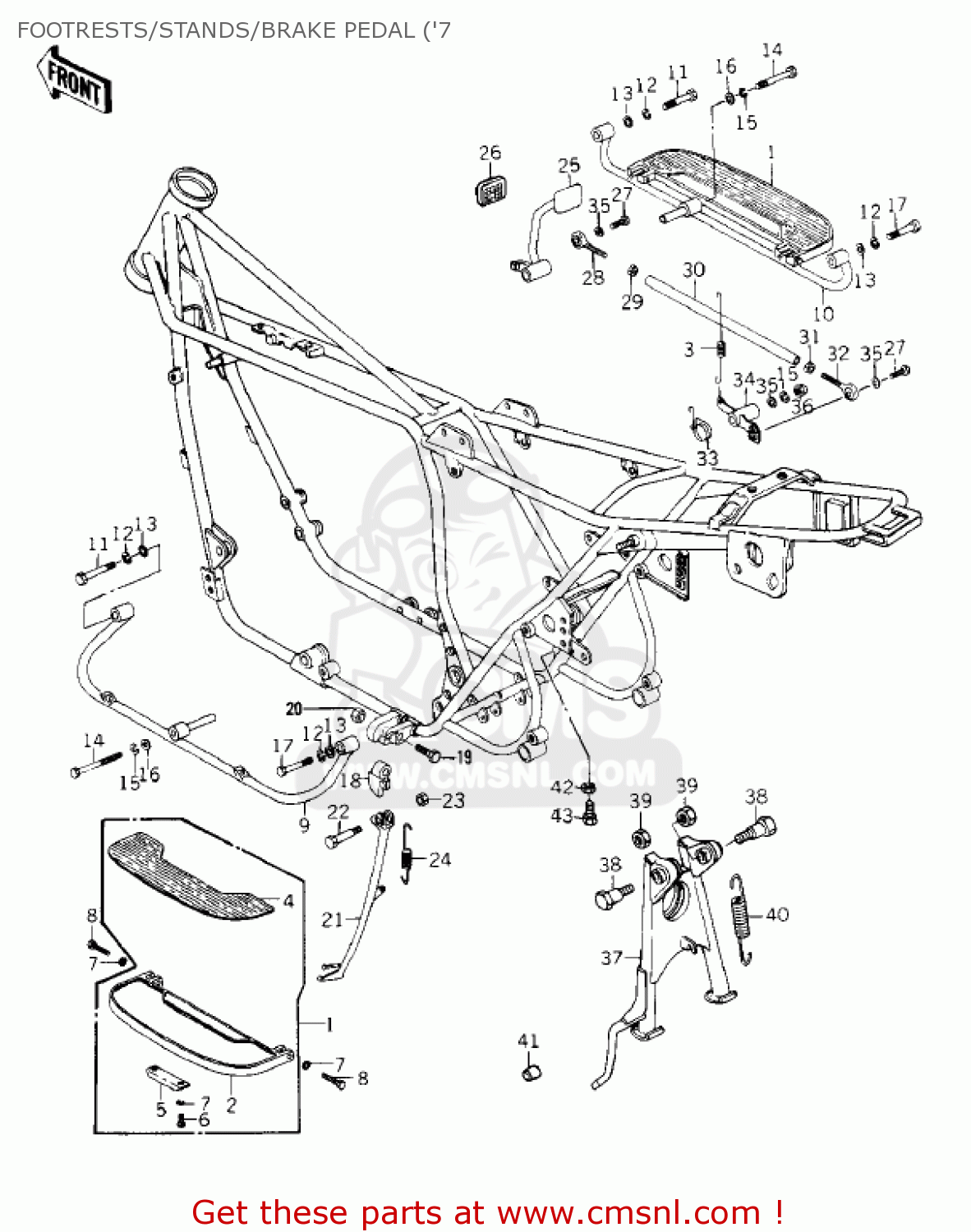

Footrests/stands/brake pedal ('7 diagram KZ1000C3 POLICE 1000 1980 USA CANADA

FOOTRESTS/STANDS/BRAKE PEDAL ('7 KZ1000C3 POLICE 1000 1980 USA CANADA

FOOTRESTS/STANDS/BRAKE PEDAL ('7 KZ1000C3 POLICE 1000 1980 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

340271002
ref: 1

STEP-ASSY,FOOTBOAD

€ 245.00

2

340271002
ref: 2

STEP-ASSY,FOOTBOAD

€ 245.00

3

27011021
ref: 3

SPRING,BRAKE LAMP SW

€ 15.50

4

920754002
ref: 4

STEP DAMPER ASSEMBLY

€ 7.50

5

131691011
ref: 5

PLATE,FOOTBRD, SKID

€ 11.50

6

112G0610
ref: 6

BOLT,6X10

€ 0.50

7

461F0600
ref: 7

WASHER-SPRING,6MM

€ 0.50

8

112G0645
ref: 8

BOLT-UPSET

€ 0.50

9

340031005
ref: 9

FOOTBOARD BRACKET,LH

€ 111.00

10

340031006
ref: 10

FOOTBOARD BRACKET,RH

€ 124.00

11

920011254
ref: 11

BOLT,HEX HEAD,10X50

€ 2.50

12

461F1000
ref: 12

WASHER-SPRING,10MM

€ 0.50

13

411B1000
ref: 13

WASHER-PLAIN,10MM

€ 0.50

14

115B08105
ref: 14

BOLT-SMALL-UPSET,8X10

€ 4.00

15

461F0800
ref: 15

WASHER-SPRING,8MM

€ 0.50

16

410B0800
ref: 16

WASHER-PLAIN-SMALL,8M

€ 0.50

17

113B1060
ref: 17

BOLT,10X60

€ 9.50

18

320434004
ref: 18

SIDE STAND BRACKET STAY

€ 64.00

19

920014004
ref: 19

BOLT,HEX HEAD,8MM

€ 6.50

20

312B0800
ref: 20

NUT,8MM

€ 0.50

21

340241216
ref: 21

STAND-SIDE

€ 198.00

22

920014028
ref: 22

BOLT, SIDE STAND

€ 8.00

23

315B1000
ref: 23

NUT,10MM

€ 0.50

24

34025005
ref: 24

SPRING-SIDE STAND

€ 5.00

25

430011006
ref: 25

BRAKE PEDAL

€ 99.50

26

43091002
ref: 26

RUBBER BRAKE PEDAL

€ 20.00

27

115G0825
ref: 27

BOLT-HEX,HEAD,8X25

€ 3.00

28

391121002
ref: 28

TIE ROD END,LH,MALE

€ 27.00

29

920151006
ref: 29

NUT,LH THREAD

€ 0.50

30

391111001
ref: 30

BRAKE PEDAL CONTROL ROD

€ 23.50

31

920151005
ref: 31

NUT,RH THREAD

€ 0.50

32

391121001
ref: 32

TIE ROD END,RH,MALE

€ 28.50

33

43005037
ref: 33

SPRING, BRAKE PEDAL

€ 8.50

34

430041004
ref: 34

REAR BRAKE SHAFT

€ 23.00

35

920221561
ref: 35

WASHER,8.5X20X1.6

€ 2.50

36

92019013
ref: 36

NUT,CAP,LOCK,8MM

€ 5.50

37

340111015
ref: 37

STAND-CENTER

€ 192.00

38

34019014
ref: 38

SHAFT-STAND,CNT

€ 16.00

39

92016044
ref: 39

NUT,14MM

€ 4.50

40

34023012
ref: 40

SPRING,MAIN STAND

€ 10.00

41

92075318
ref: 41

MAIN STAND DAMPER

€ 9.50

42

311B0600
ref: 42

NUT,6MM

€ 0.50

43

112G0620
ref: 43

BOLT 6X20

€ 1.00
