GENERATOR/REGULATOR ('78 C1/C1A)

KZ1000C3 POLICE 1000 1980 USA CANADA

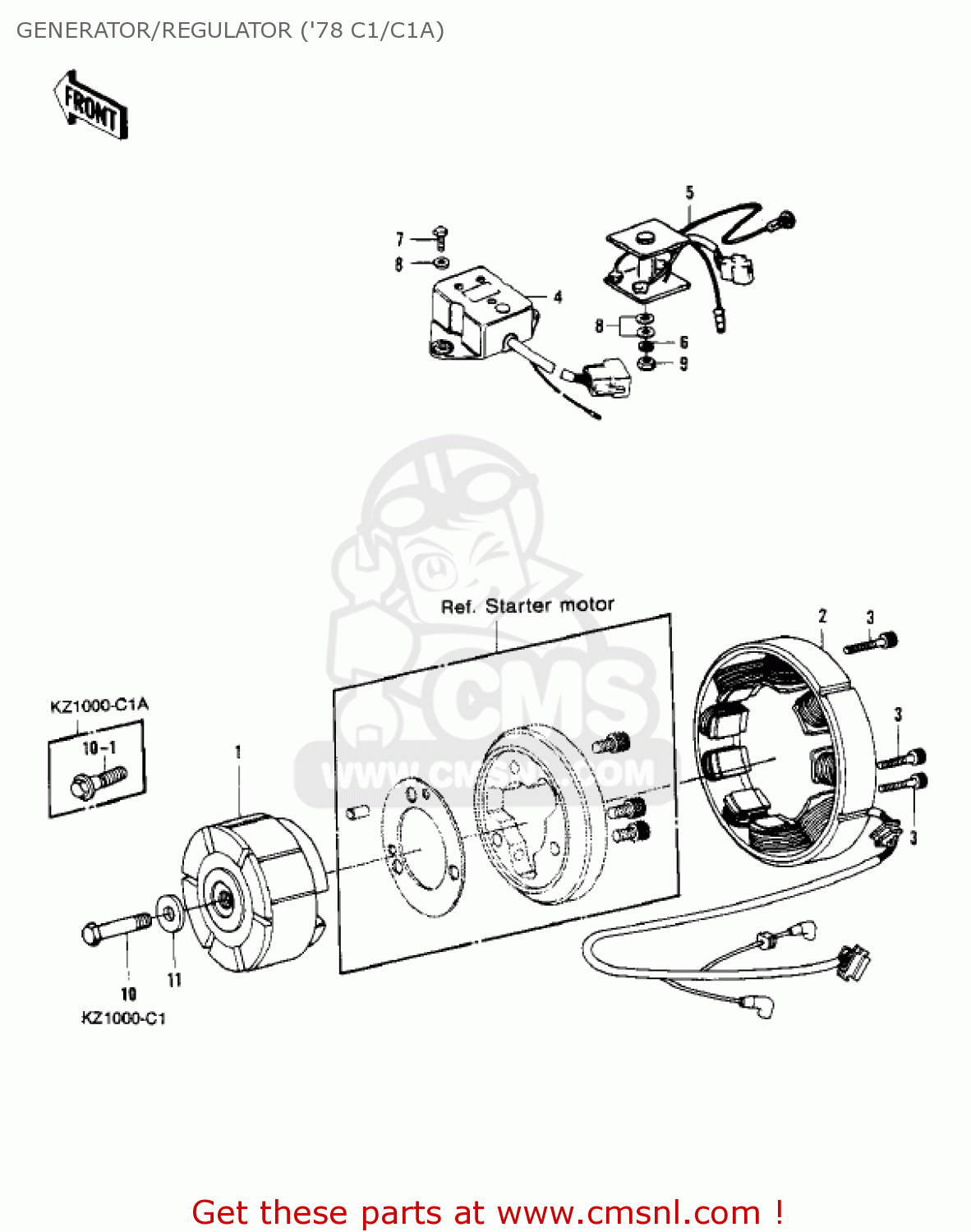

Generator/regulator ('78 c1/c1a) diagram KZ1000C3 POLICE 1000 1980 USA CANADA

prices are in EUR

ref

part #

description

quantity

210071004
ref: 1
KZ1000-C1

ROTOR

€ 849.00

210071005
ref: 1
KZ1000-C1A

ROTOR

€ 849.00

21076023
ref: 2

STATOR

€ 921.50

120S0635
ref: 3

BOLT-SOCKET

€ 1.00

21066025
ref: 4

REGULATOR-VOLTAGE

€ 202.00

999961159
ref: 5

SET,RECTIFIER,KZ1000-

€ 270.00

461F0600
ref: 6

WASHER-SPRING,6MM

€ 0.50

112G0612
ref: 7

BOLT-UPSET

€ 2.50

410B0600
ref: 8

WASHER-PLAIN-SMALL,6M

€ 0.50

311B0600
ref: 9

NUT,6MM

€ 0.50

115G0840
ref: 10
KZ1000-C1

115G0840

10-1

920011201
ref: 10-1
KZ1000-C1A

BOLT,ROTOR,10X40

€ 7.00

10-1

920011201
ref: 10-1
KZ1000-C1A

BOLT,ROTOR,10X40

€ 7.00

92022218
ref: 11
USE W/140G0840 ONLY

WASHER,PLAIN,8MM

€ 3.00
