SWING ARM/SHOCK ABSORBERS ('78 C

KZ1000C1 POLICE 1000 1978 CANADA

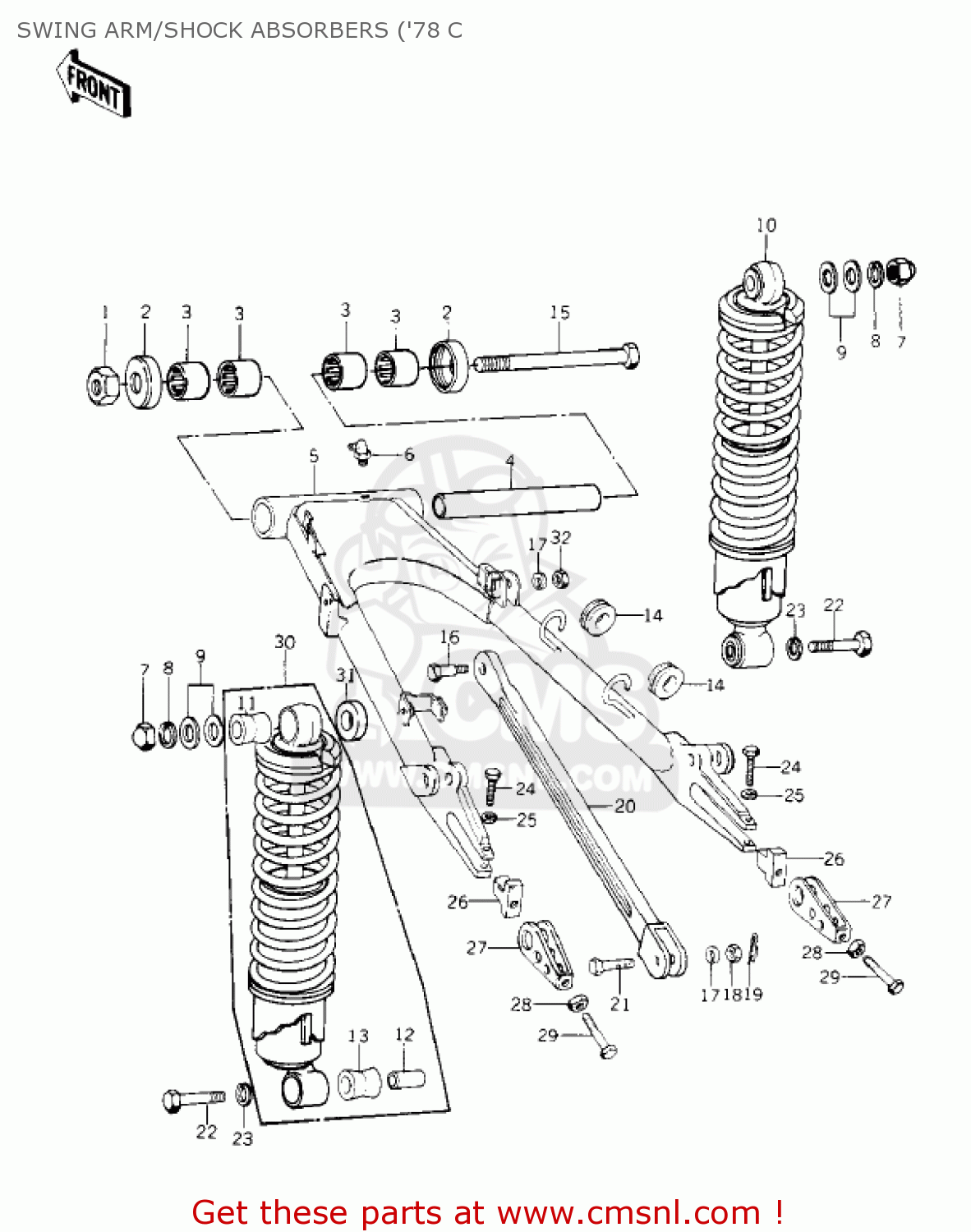

Swing arm/shock absorbers ('78 c diagram KZ1000C1 POLICE 1000 1978 CANADA

SWING ARM/SHOCK ABSORBERS ('78 C KZ1000C1 POLICE 1000 1978 CANADA

SWING ARM/SHOCK ABSORBERS ('78 C KZ1000C1 POLICE 1000 1978 CANADA

prices are in EUR

ref

part #

description

quantity

1

92019012
ref: 1

NUT,LOCK,16MM

€ 11.00

2

33035009
ref: 2

CAP,SWING ARM

€ 10.50

3

920461115
ref: 3

BEARING-NEEDLE,HK2216

€ 24.00

4

420361011
ref: 4

SLEEVE,SWING ARM

€ 130.00

5

330011008
ref: 5

SWING ARM

€ 184.00

6

92005002
ref: 6

GREASE NIPPLE

€ 4.00

7

92020014
ref: 7

NUT,CAP,12MM

€ 6.50

8

461F1200
ref: 8

WASHER-SPRING,12MM

€ 0.50

9

410B1200
ref: 9

WASHER-PLAIN-SMALL,12

€ 0.50

10

450144013
ref: 10

SHOCK ABSORBER,REAR

€ 327.00

11

45017018
ref: 11

DAMPER,SHOCKABSORBER

€ 4.00

12

45016003
ref: 12

COLLAR,SHOCKABSORBER

€ 12.50

13

45017011
ref: 13

DAMPER,SHOCKABSORBER

€ 12.50

14

43064007
ref: 14

43064007

15

33032036
ref: 15

SHAFT-SWING ARM

€ 41.00

16

92003218
ref: 16

BOLT, HEX HEAD, 10X39

€ 5.50

17

461F1000
ref: 17

WASHER-SPRING,10MM

€ 0.50

18

314B1000
ref: 18

NUT,10MM

€ 0.50

19

554A0800
ref: 19

PIN-SNAP,8MM

€ 1.00

20

43007049
ref: 20

TORQUE LINK, REAR HUB

€ 36.50

21

920011145
ref: 21

BOLT,10X47

€ 4.00

22

113N1035
ref: 22

BOLT-HEX HEAD,10X35

€ 6.00

23

461F1000
ref: 23

WASHER-SPRING,10MM

€ 0.50

24

920011578
ref: 24

BOLT,FLANGED,8X40

€ 4.00

25

461F0800
ref: 25

WASHER-SPRING,8MM

€ 0.50

26

33044001
ref: 26

STOPPER,CHAIN ADJUSTE

€ 23.50

27

33040066
ref: 27

ADJUSTER-CHAIN

€ 20.50

28

315B1000
ref: 28

NUT,10MM

€ 0.50

29

92001143
ref: 29

BOLT,CHAIN ADJUSTER

€ 13.50

30

450144013
ref: 30

SHOCK ABSORBER,REAR

€ 327.00

31

920264001
ref: 31

REAR SHOCK SPACER,LH

€ 3.00

32

92019021
ref: 32

NUT,LOCK,10M/M

€ 2.00
