FRONT FORK ('78 C1/C1A)
KZ1000C1 POLICE 1000 1978 CANADA

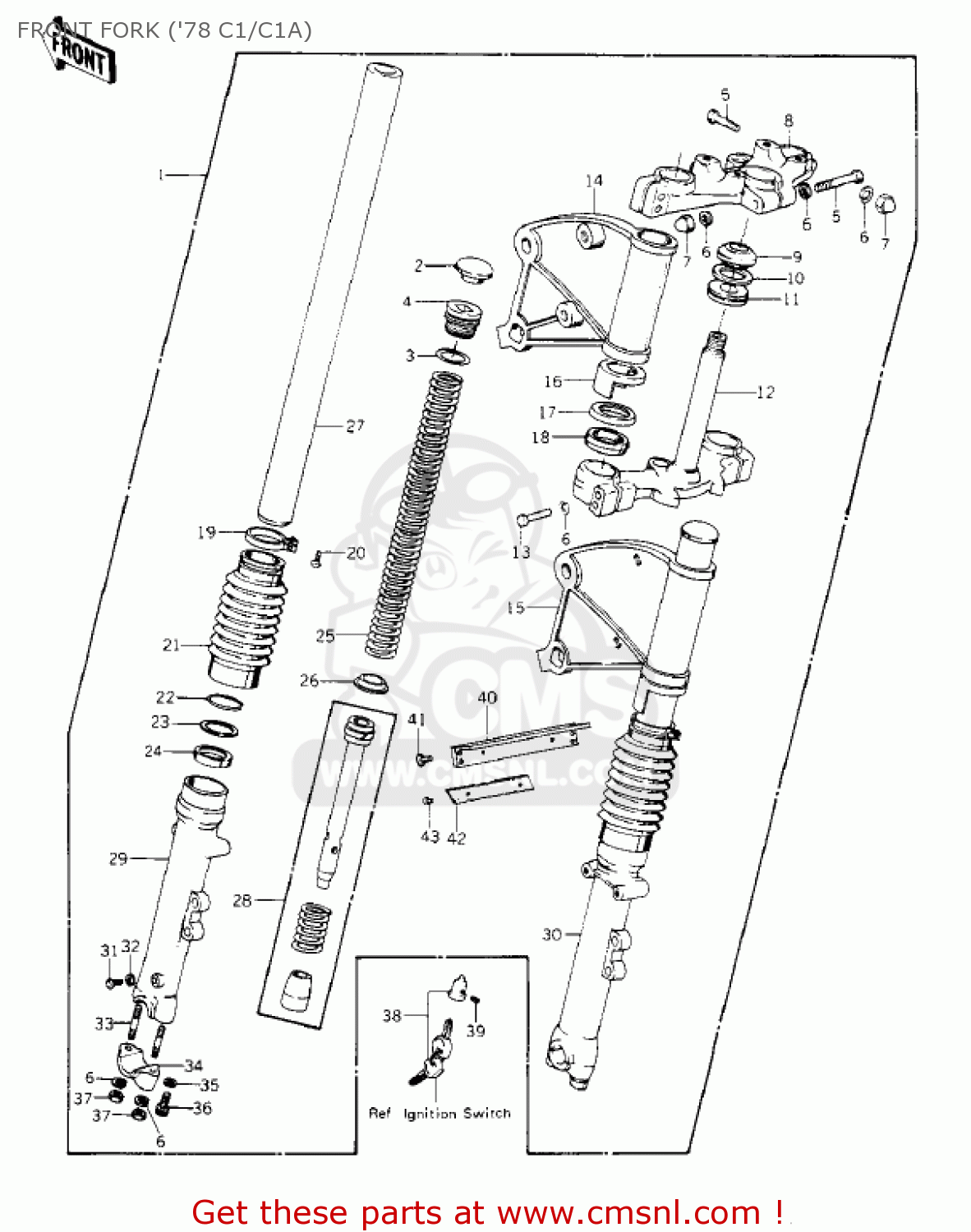

Front fork ('78 c1/c1a) diagram KZ1000C1 POLICE 1000 1978 CANADA
FRONT FORK ('78 C1/C1A) KZ1000C1 POLICE 1000 1978 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
440011009
ref: 1
FRONT FORK
€ 1,093.50
2
110121018
ref: 2
CAP,RUBBER
€ 9.00
3
920551012
ref: 3
RING-O,FORK TOP
€ 5.00
4
440291046
ref: 4
SEAT-FORK SPRING
€ 15.00
5
44041038
ref: 5
BOLT-HEX HEAD,8X55
€ 5.50
6
461F0800
ref: 6
WASHER-SPRING,8MM
€ 0.50
7
92020007
ref: 7
NUT,CAP,8MM
€ 3.50
8
440391003
ref: 8
STEERING STEM HEAD
€ 274.50
9
92047012
ref: 9
CONE-STRNG STM BRNG
€ 14.50
10
92022231
ref: 10
WASHER,PLAIN
€ 3.00
11
92056003
ref: 11
OIL SEAL,STEERING STM
€ 6.00
12
440371003
ref: 12
STEERING STEM
€ 207.50
13
115G0840
ref: 13
115G0840
14
440331004
ref: 14
FORK COVER,LH
€ 70.50
15
440331003
ref: 15
FORK COVER,RH
€ 67.00
16
131691019
ref: 16
FORK COVER GUIDE
€ 22.50
17
131691020
ref: 17
PLATE,FORK COVER GUID
€ 20.50
18
110091015
ref: 18
GASKET,FORK COVER (NAS)
€ 7.00
19
920721046
ref: 19
BAND,BOOT
€ 6.50
20
220B0420
ref: 20
SCREW-PAN-CROS
€ 2.00
21
490161006
ref: 21
FORK BOOT
€ 49.00
22
920331002
ref: 22
CIRCLIP
€ 3.00
23
920221013
ref: 23
WASHER
€ 9.00
24
920491005
ref: 24
OIL SEAL
€ 14.50
25
440261002
ref: 25
FORK SPRING
€ 47.50
26
440281001
ref: 26
GUID,FORK SPRING
€ 5.50
27
440131002
ref: 27
FORK INNER TUBE
€ 191.50
28
440221001
ref: 28
FORK CYLINDER
€ 64.50
29
440051004
ref: 29
FORK OUTER TUBE,LH
€ 303.00
30
440061004
ref: 30
FORK OUTER TUBE,RH
€ 359.50
31
220B0408
ref: 31
SCREW-PAN-CROS
€ 0.50
32
44045002
ref: 32
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
33
920041009
ref: 33
STUD, 8X35
€ 4.00
34
44063014
ref: 34
HOLDER,FRONT AXLE
€ 23.50
35
44045057
ref: 35
GASKET (NAS)
€ 3.00
36
44041040
ref: 36
BOLT-FORK CYLINDER
€ 4.50
37
920151124
ref: 37
NUT,LOCK,8MM
€ 3.50
38
27016048
ref: 38
LOCK-ASSY,STEERING
€ 50.50
39
92014016
ref: 39
SCREW, SEAT LOCK
€ 3.50
40
110341060
ref: 40
NAME PLATE BRACKET
€ 30.50
41
222E0612
ref: 41
SCREW OVL CNTSNK 6X12
€ 2.50
42
560141013
ref: 42
EMBLEM,FUEL TANK,LH
€ 44.00
43
221C0310
ref: 43
SCREW-CSK-CROS
€ 2.00
