FRONT WHEEL/TIRE/HUB ('79-'81 C2

KZ1000C1 POLICE 1000 1978 CANADA

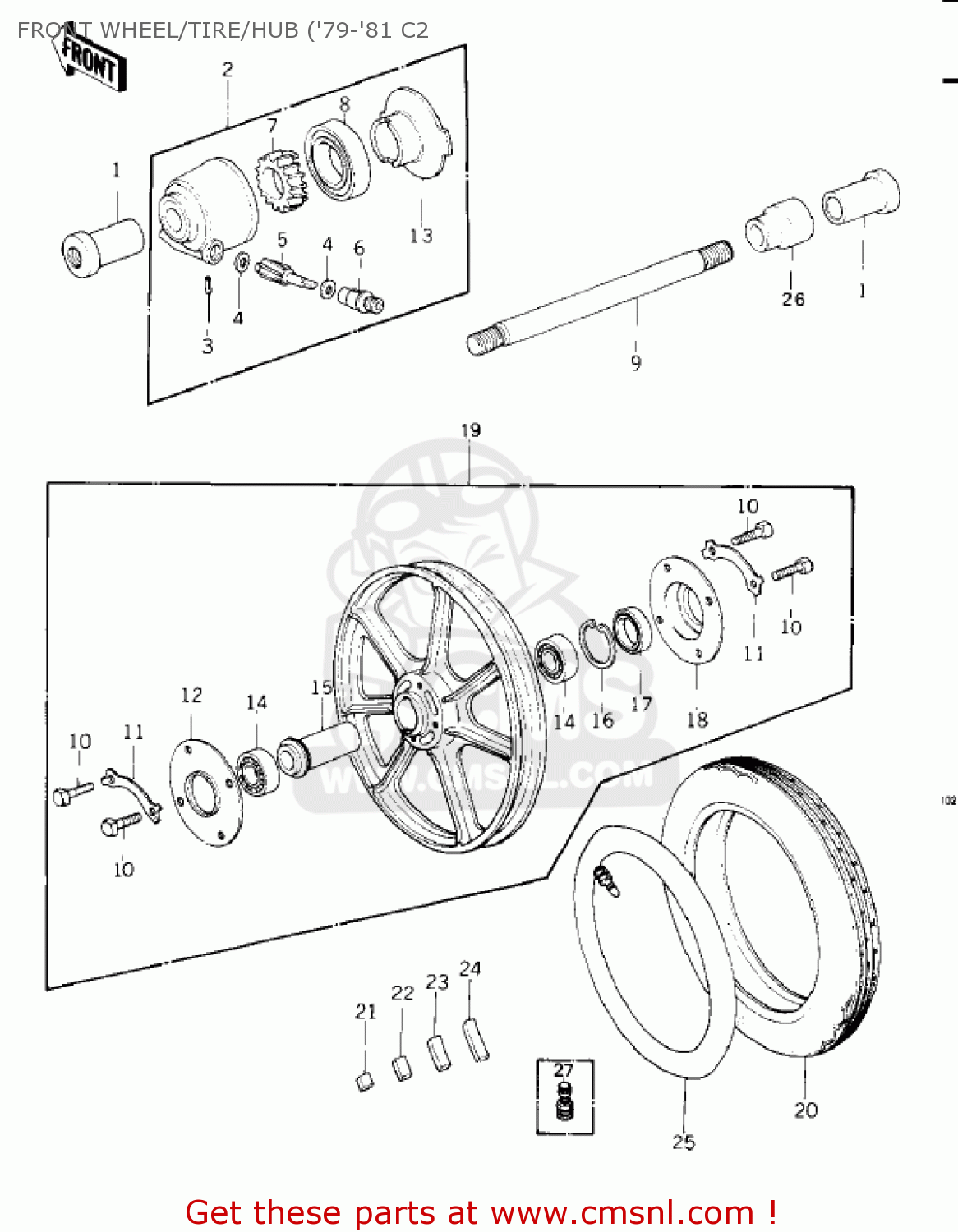

Front wheel/tire/hub ('79-'81 c2 diagram KZ1000C1 POLICE 1000 1978 CANADA

FRONT WHEEL/TIRE/HUB ('79-'81 C2 KZ1000C1 POLICE 1000 1978 CANADA

FRONT WHEEL/TIRE/HUB ('79-'81 C2 KZ1000C1 POLICE 1000 1978 CANADA

prices are in EUR

ref

part #

description

quantity

1

41069033
ref: 1

COLLAR,FRONT AXLE

€ 22.00

2

410781002
ref: 2

GEAR BOX ASSEMBLY

€ 58.00

3

41082001
ref: 3

PIN-SPRING

€ 2.50

4

41063001
ref: 4

WASHER-THRST SPD PINI

€ 3.00

5

41060017
ref: 5

PINION,SPEEDOMETER

€ 33.50

6

41062005
ref: 6

BUSHING,SPEEDOMETER C

€ 12.00

7

41059026
ref: 7

GEAR,SPEEDOMETER

€ 27.00

8

920491057
ref: 8

OIL SEAL,BJN30427-C3

€ 7.50

9

410681005
ref: 9

AXLE,FRONT

€ 32.50

10

92001158
ref: 10

BOLT

€ 2.00

11

92088023
ref: 11

WASHER,LOCK

€ 6.00

12

41042014
ref: 12

DUST COVER

€ 20.00

13

410641002
ref: 13

SPEEDOMETER GEAR RECEIVER

€ 13.00

14

601B6303ZZ
ref: 14

BEARING-BALL,#6303ZZC

€ 32.50

15

920271028
ref: 15

FRONT HUB BEARING COLLAR

€ 16.50

16

920331042
ref: 16

CIRCLIP,47M/M

€ 4.00

17

654A254708
ref: 17

OIL SEAL-FRONT AXLE

€ 17.00

18

41042015
ref: 18

DUST COVER

€ 15.00

19

410734003
ref: 19

SOLID WHEEL ASSEMBLY,FRONT

€ 316.00

20

410024021
ref: 20

TIRE,MN90-18 F16 F

€ 198.50

21

41075005
ref: 21

BALANCER,5G

€ 4.50

22

41075006
ref: 22

BALANCER,10G

€ 8.00

23

41075007
ref: 23

BALANCER,20G

€ 8.00

24

41075008
ref: 24

BALANCER,30G

€ 7.50

25

410224001
ref: 25

TUBE,FRONT,V18-19

€ 16.50

26

410694001
ref: 26

FRONT AXLE COLLAR

€ 11.50

27

161261136
ref: 27

VALVE,TIRE

€ 22.00
