Genuine KZ Kawasaki Parts delivered quickly!


CARBURETOR PARTS ('78 C1/C1A)

KZ1000C1 POLICE 1000 1978 CANADA

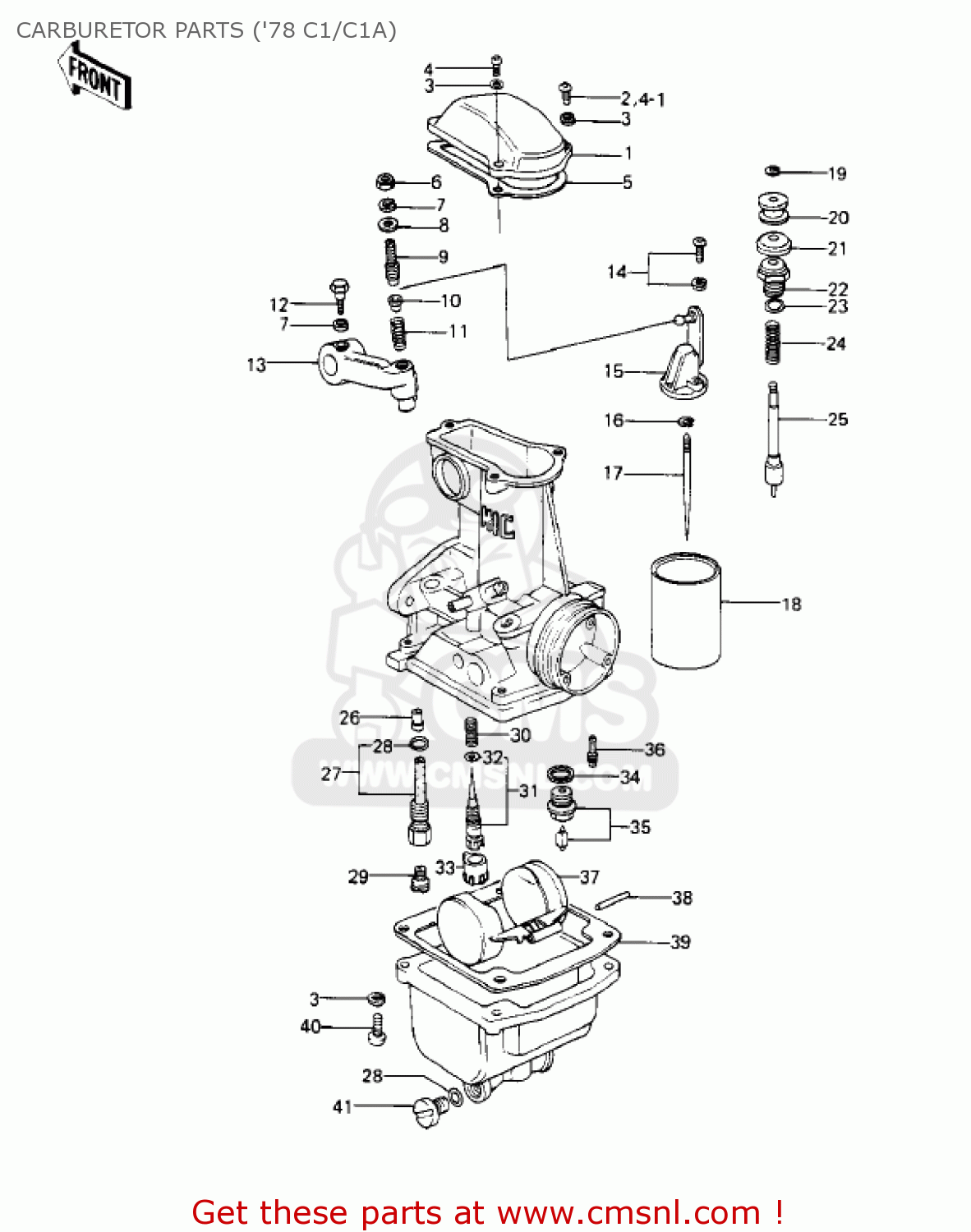

Carburetor parts ('78 c1/c1a) diagram KZ1000C1 POLICE 1000 1978 CANADA

CARBURETOR PARTS ('78 C1/C1A) KZ1000C1 POLICE 1000 1978 CANADA
CARBURETOR PARTS ('78 C1/C1A) KZ1000C1 POLICE 1000 1978 CANADA
CARBURETOR PARTS ('78 C1/C1A) KZ1000C1 POLICE 1000 1978 CANADA
prices are in EUR
ref
part #
description
quantity
1
16005027
ref: 1
TOP,MIXING CHAMBER
16005027
€ 15.50
2
220B0416
ref: 2
SCREW-PAN-CROS
220B0416
€ 2.00
3
461F0400
ref: 3
WASHER-SPRING,4MM
461F0400
€ 0.50
4
223B0414
ref: 4
SCREW PAN-WS-CROS
€ 2.50
4-1
223B0414
ref: 4-1
E/NO. 012016~
SCREW PAN-WS-CROS
€ 2.50
5
16019031
ref: 5
GASKET,CHAMBER,TOP (NAS)
16019031
€ 24.50
6
16003013
ref: 6
NUT,5M/M
16003013
€ 6.00
7
461F0500
ref: 7
WASHER-SPRING,5MM
461F0500
€ 0.50
8
16039016
ref: 8
WASHER,PLAIN
16039016
€ 3.50
9
16046012
ref: 9
SCREW, SLOTTED
16046012
€ 13.50
10
16057002
ref: 10
SEAT-SPRING
€ 6.00
11
16040026
ref: 11
SPRING
€ 3.50
12
16067006
ref: 12
BOLT-HEX HEAD,5X14
16067006
€ 10.50
13
390751001
ref: 13
LEVER,THROTTLE
€ 25.00
14
16033031
ref: 14
SCREW, PAN HEAD, 3X14
16033031
€ 3.50
15
16007028
ref: 15
BRACKET,THROTTLE VALV
€ 41.00
16
16008010
ref: 16
CLAMP,E-TYPE
16008010
€ 5.00
17
16009074
ref: 17
KZ1000-C1
NEEDLE-JET
16009074
€ 29.50
17
16009071
ref: 17
KZ1000-C1A
NEEDLE-JET,5DL3
16009071
€ 29.50
18
16025085
ref: 18
VALVE,THROTTLE, CA1.5
€ 61.00
19
16076003
ref: 19
CLAMP
16076003
€ 4.50
20
16073014
ref: 20
COLLAR,STARTER PLUNGE
16073014
€ 5.50
21
16039015
ref: 21
CAP,STARTER PLUNGER
16039015
€ 4.50
22
16012015
ref: 22
CAP-STARTER PLUNGER
16012015
€ 8.50
23
670B1509
ref: 23
O RING,9MM
670B1509
€ 1.00
24
16013008
ref: 24
SPRING-STARTER PLUNG
16013008
€ 4.50
25
16016021
ref: 25
PLUNGER,STARTER
16016021
€ 26.00
26
16017097
ref: 26
KZ1000-C1
NEEDLE JET, O-6
€ 16.00
26
160171034
ref: 26
KZ1000-C1A
JET-NEEDLE,AO-5
€ 38.00
27
16047006
ref: 27
BLEED PIPE
€ 34.00
28
16038016
ref: 28
GASKET,O-RING
16038016
€ 2.50
29
92063073
ref: 29
KZ1000-C1
JET-MAIN,#107.5R
92063073
€ 9.50
29
920631028
ref: 29
KZ1000-C1
JET-MAIN,#A102.5R
920631028
€ 10.00
29
920631042
ref: 29
KZ1000-C1
JET-MAIN,#A105R
920631042
€ 10.50
29
920631038
ref: 29
KZ1000-C1
JET-MAIN,#A110
920631038
€ 10.50
29
92063075
ref: 29
KZ1000-C1
MAIN JET,#112.5R
92063075
€ 10.00
29
92063075
ref: 29
KZ1000-C1A
MAIN JET,#112.5R
92063075
€ 10.00
29
92063073
ref: 29
KZ1000-C1A
JET-MAIN,#107.5R
92063073
€ 9.50
29
920631038
ref: 29
KZ1000-C1A
JET-MAIN,#A110
920631038
€ 10.50
29
920631028
ref: 29
KZ1000-C1A
JET-MAIN,#A102.5R
920631028
€ 10.00
29
920631033
ref: 29
KZ1000-C1A
JET-MAIN,#A100R
920631033
€ 17.00
30
16022016
ref: 30
SPRING, PILOT SCREW
16022016
€ 6.00
31
16014018
ref: 31
SCREW-PILOT AIR
16014018
€ 19.00
32
16038024
ref: 32
O RING
16038024
€ 1.00
33
16012022
ref: 33
CAP, LINTTER
16012022
€ 3.50
34
16029004
ref: 34
WASHER-FLOAT VLV SEAT
16029004
€ 2.50
35
16030027
ref: 35
VALVE-FLOAT
16030027
€ 85.00
36
92064042
ref: 36
KZ1000-C1
JET-PILOT,#17.5
92064042
€ 14.00
36
920641003
ref: 36
KZ1000-C1A
PILOT JET,#15
920641003
€ 15.00
37
16031031
ref: 37
FLOAT
16031031
€ 114.50
38
16032003
ref: 38
FLOAT PIN
16032003
€ 4.00
39
110091563
ref: 39
GASKET,FLOAT CHAMBER (NAS)
110091563
€ 14.00
40
220B0416
ref: 40
SCREW-PAN-CROS
220B0416
€ 2.00
41
16049007
ref: 41
SCREW, GUIDE
16049007
€ 9.50
