METERS/IGNITION SWITCH ('79-'81

KZ1000C1 POLICE 1000 1978 CANADA

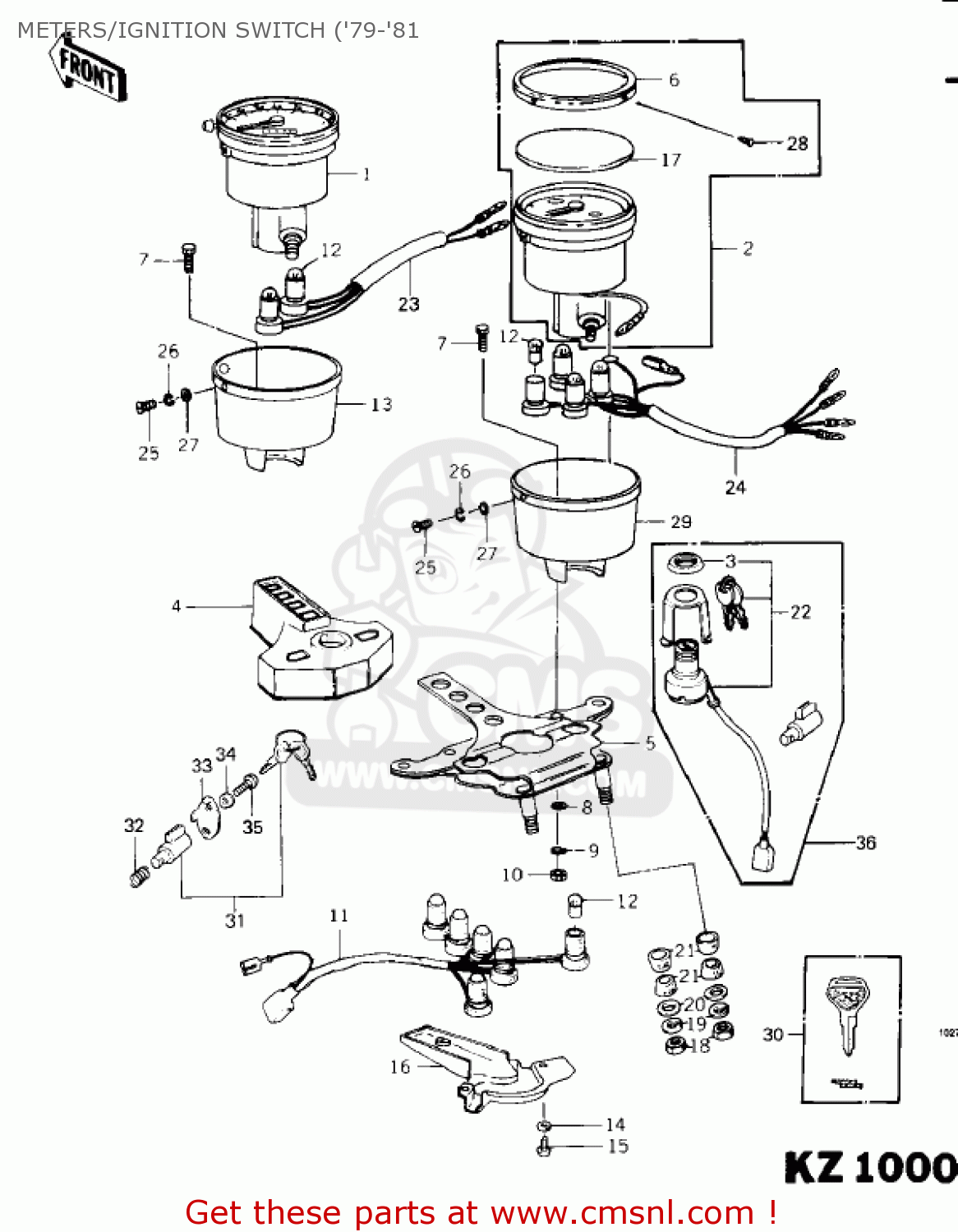

Meters/ignition switch ('79-'81 diagram KZ1000C1 POLICE 1000 1978 CANADA

METERS/IGNITION SWITCH ('79-'81 KZ1000C1 POLICE 1000 1978 CANADA

METERS/IGNITION SWITCH ('79-'81 KZ1000C1 POLICE 1000 1978 CANADA

prices are in EUR

ref

part #

description

quantity

1

250054001
ref: 1

SPEEDOMETER ASSEMBLY,MPH

€ 616.50

2

250154001
ref: 2

TACHOMETER ASSEMBLY,PURSU

€ 300.00

3

27007004
ref: 3

NUT,IGNITION SWITCH

€ 8.00

4

25023015
ref: 4

COVER-METER CASE

€ 98.00

5

250081002
ref: 5

METER BRACKET

€ 60.00

6

140204001
ref: 6

SPEEDOMETER RETAINER

€ 10.00

7

112G0616
ref: 7

BOLT UPSET,6X16

€ 1.00

8

411B0600
ref: 8

WASHER-PLAIN,6MM

€ 0.50

9

461F0600
ref: 9

WASHER-SPRING,6MM

€ 0.50

10

311B0600
ref: 10

NUT,6MM

€ 0.50

11

230081010
ref: 11

INDICATOR LAMP SOCKET

€ 52.50

12

92069018
ref: 12

BULB 12V 3W

€ 4.00

13

140254003
ref: 13

SPEEDOMETER COVER

€ 35.50

14

461F0300
ref: 14

WASHER-SPRING,3MM

€ 0.50

15

220B0308
ref: 15

SCREW-PAN-CROS

€ 0.50

16

25024006
ref: 16

COVER,METER BRACKET

€ 14.50

17

230264001
ref: 17

SPEEDOMETER LENS

€ 3.50

18

311B0800
ref: 18

NUT,8MM

€ 0.50

19

461F0800
ref: 19

WASHER-SPRING,8MM

€ 0.50

20

411B0800
ref: 20

WASHER-PLAIN,8MM

€ 0.50

21

92075080
ref: 21

DAMPER

€ 5.50

22

270055008
ref: 22

SWITCH ASSY,IGNITION

€ 185.00

23

230084003
ref: 23

SPEEDOMETER SOCKET

€ 14.00

24

230084002
ref: 24

TACHOMETER SOCKET

€ 20.50

25

220B0408
ref: 25

SCREW-PAN-CROS

€ 0.50

26

461F0400
ref: 26

WASHER-SPRING,4MM

€ 0.50

27

410B0400
ref: 27

WASHER-PLAIN-SMALL,4M

€ 0.50

28

920094001
ref: 28

SCREW,PAN HEAD,2.3X3

€ 0.50

29

140251011
ref: 29

SPEEDOMETER COVER

€ 41.00

30

270081103
ref: 30

KEY-LOCK,BLANK

€ 13.50

31

270165016
ref: 31

LOCK ASSY,STEERING

€ 97.00

32

27032001
ref: 32

SPRING-STEERING LOCK

€ 3.50

33

110121134
ref: 33

CAP,STEERING LOCK

€ 4.50

34

92097003
ref: 34

WASHER

€ 2.50

35

92008007
ref: 35

SCREW-TAPPING

€ 2.50

36

270045043
ref: 36
INCLUDES REF #'S 22

LOCK ASSEMBLY,KZ1000-C2

€ 122.50
