METERS/IGNITION SWITCH ('79-'81C

KZ1000C1 POLICE 1000 1978 CANADA

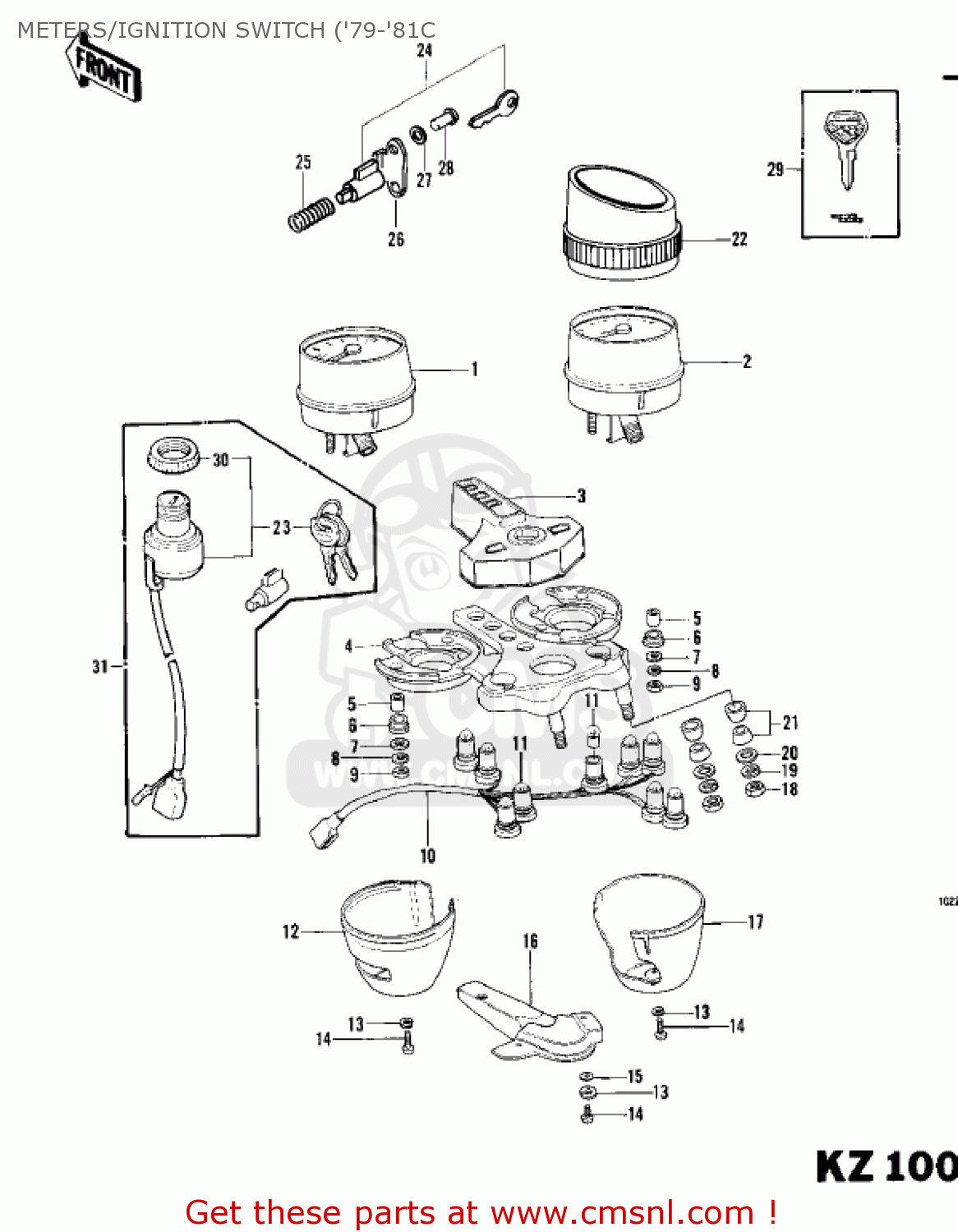

Meters/ignition switch ('79-'81c diagram KZ1000C1 POLICE 1000 1978 CANADA

METERS/IGNITION SWITCH ('79-'81C KZ1000C1 POLICE 1000 1978 CANADA

METERS/IGNITION SWITCH ('79-'81C KZ1000C1 POLICE 1000 1978 CANADA

prices are in EUR

ref

part #

description

quantity

1

250054003
ref: 1
120 MPH

SPEEDOMETER

€ 434.00

2

250154002
ref: 2

TACHOMETER ASSEMBLY,PURSU

€ 247.50

3

250234001
ref: 3

METER CASE COVER

€ 71.00

4

250081005
ref: 4

BRACKET-METER

€ 156.00

5

92027211
ref: 5

COLLAR,5.6X8X13.8

€ 8.50

6

92075172
ref: 6

DAMPER

€ 12.50

7

92022241
ref: 7

WASHER,5.2X15X1.6

€ 2.50

8

461F0500
ref: 8

WASHER-SPRING,5MM

€ 0.50

9

312B0500
ref: 9

NUT-HEX,5MM

€ 0.50

10

230084005
ref: 10

SOCKET ASSEMBLY

€ 114.00

11

92069018
ref: 11

BULB 12V 3W

€ 4.00

12

140254011
ref: 12

SPEEDOMETER COVER

€ 89.50

13

461F0300
ref: 13

WASHER-SPRING,3MM

€ 0.50

14

220B0308
ref: 14

SCREW-PAN-CROS

€ 0.50

15

410B0300
ref: 15

WASHER-PLAIN-SMALL,3M

€ 0.50

16

25024006
ref: 16

COVER,METER BRACKET

€ 14.50

17

140254012
ref: 17

TACHOMETER COVER

€ 70.50

18

311B0800
ref: 18

NUT,8MM

€ 0.50

19

461F0800
ref: 19

WASHER-SPRING,8MM

€ 0.50

20

411B0800
ref: 20

WASHER-PLAIN,8MM

€ 0.50

21

92075080
ref: 21

DAMPER

€ 5.50

22

250234002
ref: 22

METER CASE COVER

€ 11.50

23

270055008
ref: 23

SWITCH ASSY,IGNITION

€ 185.00

24

270165016
ref: 24

LOCK ASSY,STEERING

€ 97.00

25

27032001
ref: 25

SPRING-STEERING LOCK

€ 3.50

26

110121134
ref: 26

CAP,STEERING LOCK

€ 4.50

27

92097003
ref: 27

WASHER

€ 2.50

28

92008007
ref: 28

SCREW-TAPPING

€ 2.50

29

270081103
ref: 29

KEY-LOCK,BLANK

€ 13.50

30

27007004
ref: 30

NUT,IGNITION SWITCH

€ 8.00

31

270045043
ref: 31
INCLUDES REF #'S.23

LOCK ASSEMBLY,KZ1000-C2

€ 122.50
