HANDLEBAR ('79-'81 C2/C3/C4)

KZ1000C1 POLICE 1000 1978 CANADA

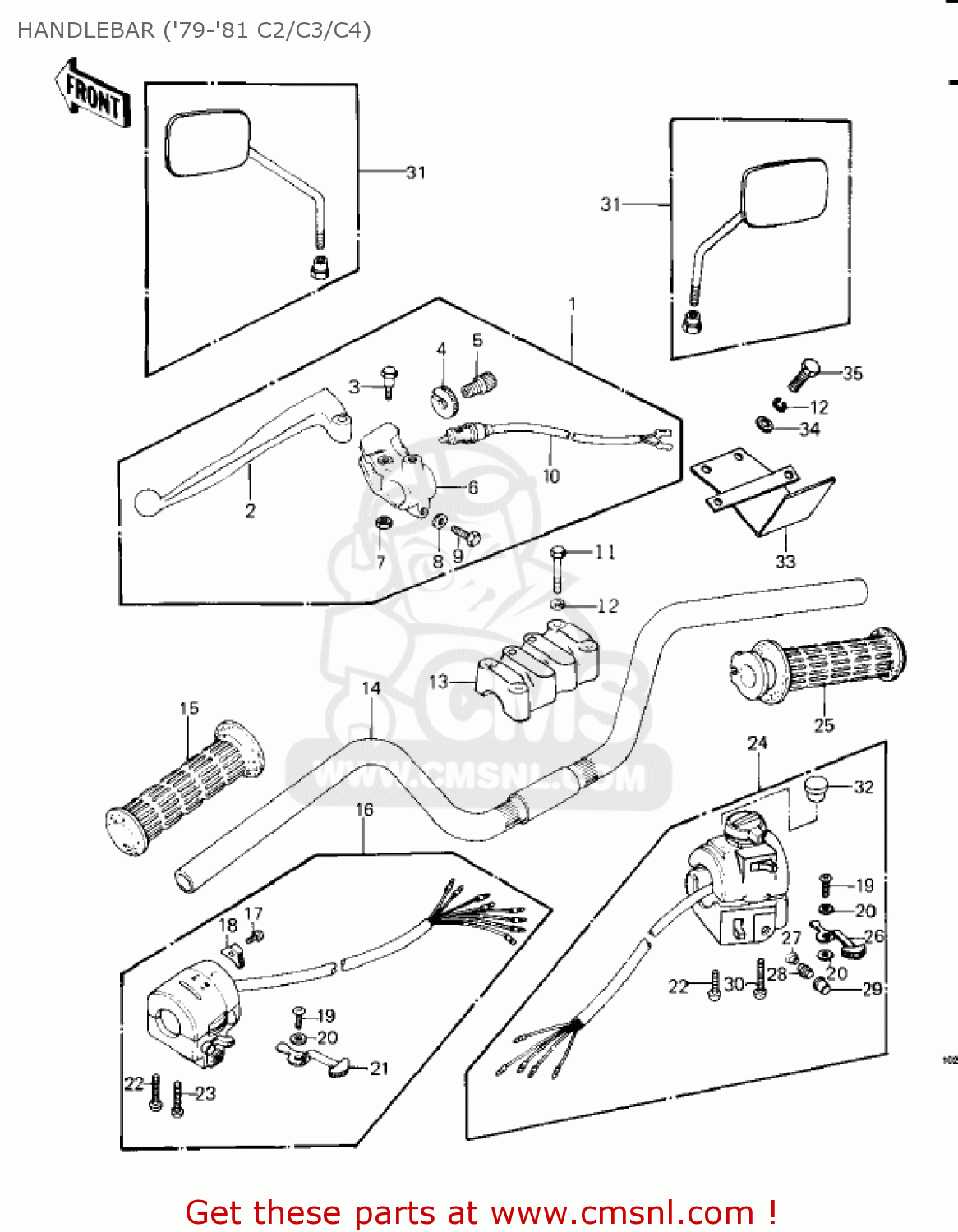

Handlebar ('79-'81 c2/c3/c4) diagram KZ1000C1 POLICE 1000 1978 CANADA

HANDLEBAR ('79-'81 C2/C3/C4) KZ1000C1 POLICE 1000 1978 CANADA

HANDLEBAR ('79-'81 C2/C3/C4) KZ1000C1 POLICE 1000 1978 CANADA

prices are in EUR

ref

part #

description

quantity

1

46076054
ref: 1

LEVER-ASSY-GRIP,CLUTC

€ 101.00

2

46092023
ref: 2

LEVER-GRIP,CLUTCH

€ 17.00

3

92007047
ref: 3

BOLT,HEX HEAD

€ 6.50

4

46056007
ref: 4

NUT,CABLE ADJUST LOCK

€ 9.00

5

46055003
ref: 5

SCREW-CABLE ADJUST

€ 11.50

6

46094019
ref: 6

HOLDER,CLUTCH LEVER

€ 55.00

7

92017014
ref: 7

NUT,LOCK,6MM

€ 4.00

8

410B0600
ref: 8

WASHER-PLAIN-SMALL,6M

€ 0.50

9

110N0625
ref: 9

BOLT-HEX HEAD,6X25

€ 3.50

10

27043002
ref: 10

SWITCH,CLUTCH

€ 21.00

11

920011405
ref: 11

BOLT,8X38

€ 10.00

11

920011405
ref: 11

BOLT,8X38

€ 10.00

12

461F0800
ref: 12

WASHER-SPRING,8MM

€ 0.50

13

460121001
ref: 13

HANDLEBAR HOLDER

€ 39.00

14

460034008
ref: 14

HANDLE

€ 122.00

15

46075028
ref: 15

GRIP,LH

€ 32.00

16

460914002
ref: 16

CONTROLLER HOUSING ASSEMBLY,LH

€ 118.00

17

221B0308A
ref: 17

SCREW-CNTSNK HD,3X8

€ 2.50

18

46044013
ref: 18

KNOB,LIGHTING SWITCH,

€ 8.00

19

220B0305A
ref: 19

SCREW-PAN HEAD,3X5

€ 1.00

20

92095010
ref: 20

WASHER

€ 2.50

21

46043005
ref: 21

KNOB-LIGHTING SW L.H

€ 6.50

22

220B0530
ref: 22

SCREW-PAN-CROS

€ 2.00

23

220B0535
ref: 23

SCREW-PAN-CROS

€ 2.00

24

460911009
ref: 24

HOUSING ASSEMBLY,RH

€ 124.00

25

46019038
ref: 25

GRIP-ASSY,THROTTLE

€ 80.50

26

46043004
ref: 26

KNOB-LIGHTING SW R.H

€ 3.00

27

270101009
ref: 27

SWITCH ASSY,HORN BUTN

€ 5.50

28

270101009
ref: 28

SWITCH ASSY,HORN BUTN

€ 5.50

29

270101009
ref: 29

SWITCH ASSY,HORN BUTN

€ 5.50

30

220B0540
ref: 30

SCREW-PAN-CROS

€ 2.00

31

560011006
ref: 31

REAR VIEW MIRROR

€ 51.50

32

92102009
ref: 32

CAP-RR VIEW MIRROR

€ 3.00

33

230621001
ref: 33

RADIO SPEAKER BRACKET

€ 22.00

34

410B0800
ref: 34

WASHER-PLAIN-SMALL,8M

€ 0.50

35

92007003
ref: 35

BOLT,HEADLAMP MOUNT

€ 11.00
