SEAT/CHAIN COVER ('77-'78 B1/B2)

KZ1000B2 KZ1000 LTD 1978 USA CANADA

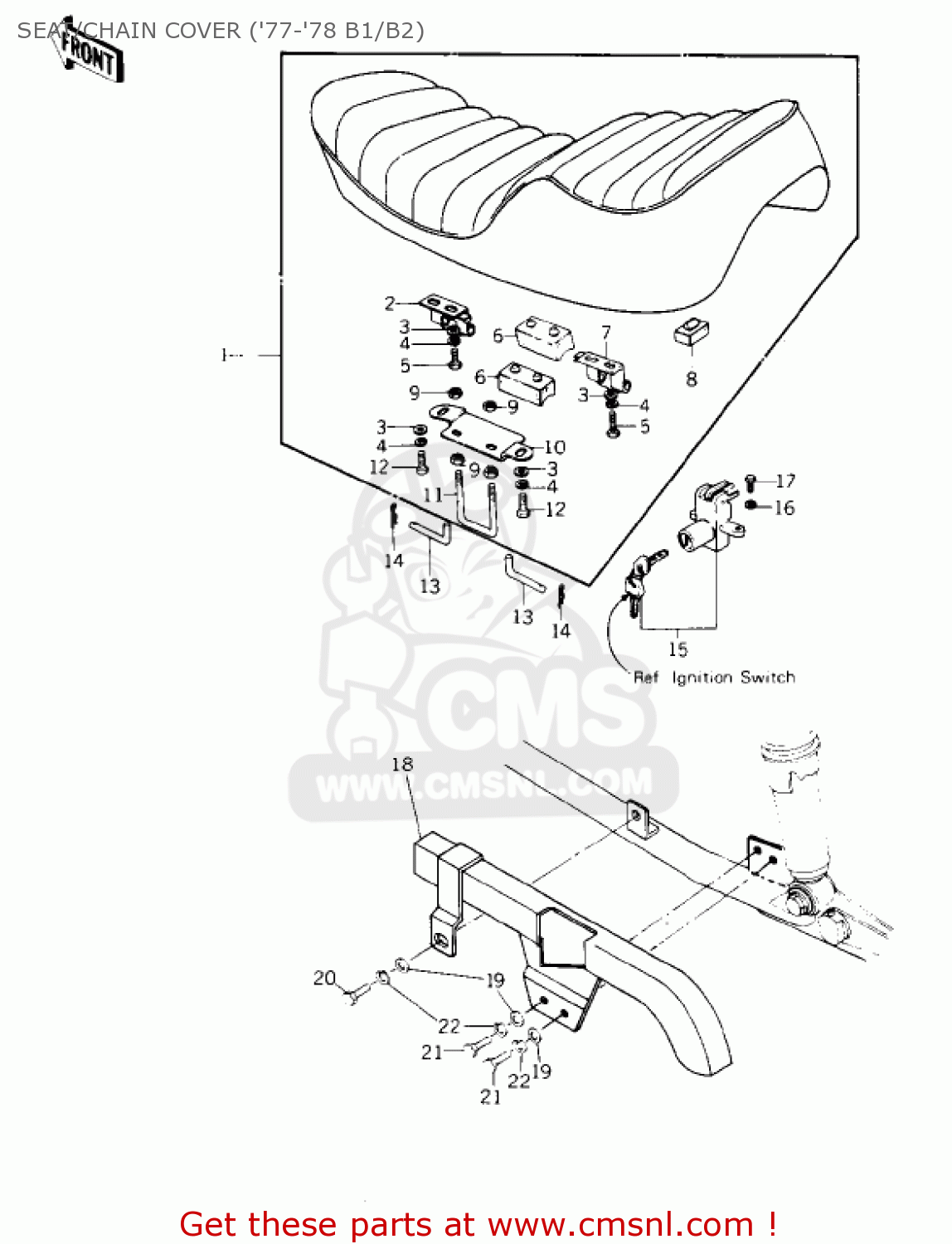

Seat/chain cover ('77-'78 b1/b2) diagram KZ1000B2 KZ1000 LTD 1978 USA CANADA

SEAT/CHAIN COVER ('77-'78 B1/B2) KZ1000B2 KZ1000 LTD 1978 USA CANADA

SEAT/CHAIN COVER ('77-'78 B1/B2) KZ1000B2 KZ1000 LTD 1978 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

53001130
ref: 1

SEAT,LTD 900/1000

€ 438.00

2

53009030
ref: 2

HINGE,REAR

€ 6.00

3

411B0600
ref: 3

WASHER-PLAIN,6MM

€ 0.50

4

461F0600
ref: 4

WASHER-SPRING,6MM

€ 0.50

5

112G0616
ref: 5

BOLT UPSET,6X16

€ 1.00

6

92075139
ref: 6

DAMPER,SEAT

€ 7.00

7

53009032
ref: 7

HINGE, REAR

€ 6.50

8

92075099
ref: 8

DAMPER RUBBER

€ 3.50

9

311B0600
ref: 9

NUT,6MM

€ 0.50

10

53058003
ref: 10

BRACKET,SEAT CATCH

€ 8.50

11

53056002
ref: 11

HOOK,SEAT

€ 11.50

12

112B0614
ref: 12

BOLT-UPSET 6X14

€ 2.50

13

53011008
ref: 13

PIN,SEAT PIVOT

€ 4.00

14

92041003
ref: 14

COTTER

€ 0.50

15

27030005
ref: 15

LOCK-ASSY,SEAT

€ 82.00

16

461F0600
ref: 16

WASHER-SPRING,6MM

€ 0.50

17

112G0612
ref: 17

BOLT-UPSET

€ 2.50

18

36014069
ref: 18

CHAIN CASE

€ 182.50

19

411D0600
ref: 19

WASHER-PLAIN,6MM

€ 1.50

20

110N0616
ref: 20

BOLT-HEX HEAD,6X16

€ 2.50

21

112G0614
ref: 21

BOLT-UPSET,6X14

€ 2.50

22

461F0600
ref: 22

WASHER-SPRING,6MM

€ 0.50
