CARBURETOR ASSY (KZ1000-B2)

KZ1000B2 KZ1000 LTD 1978 USA CANADA

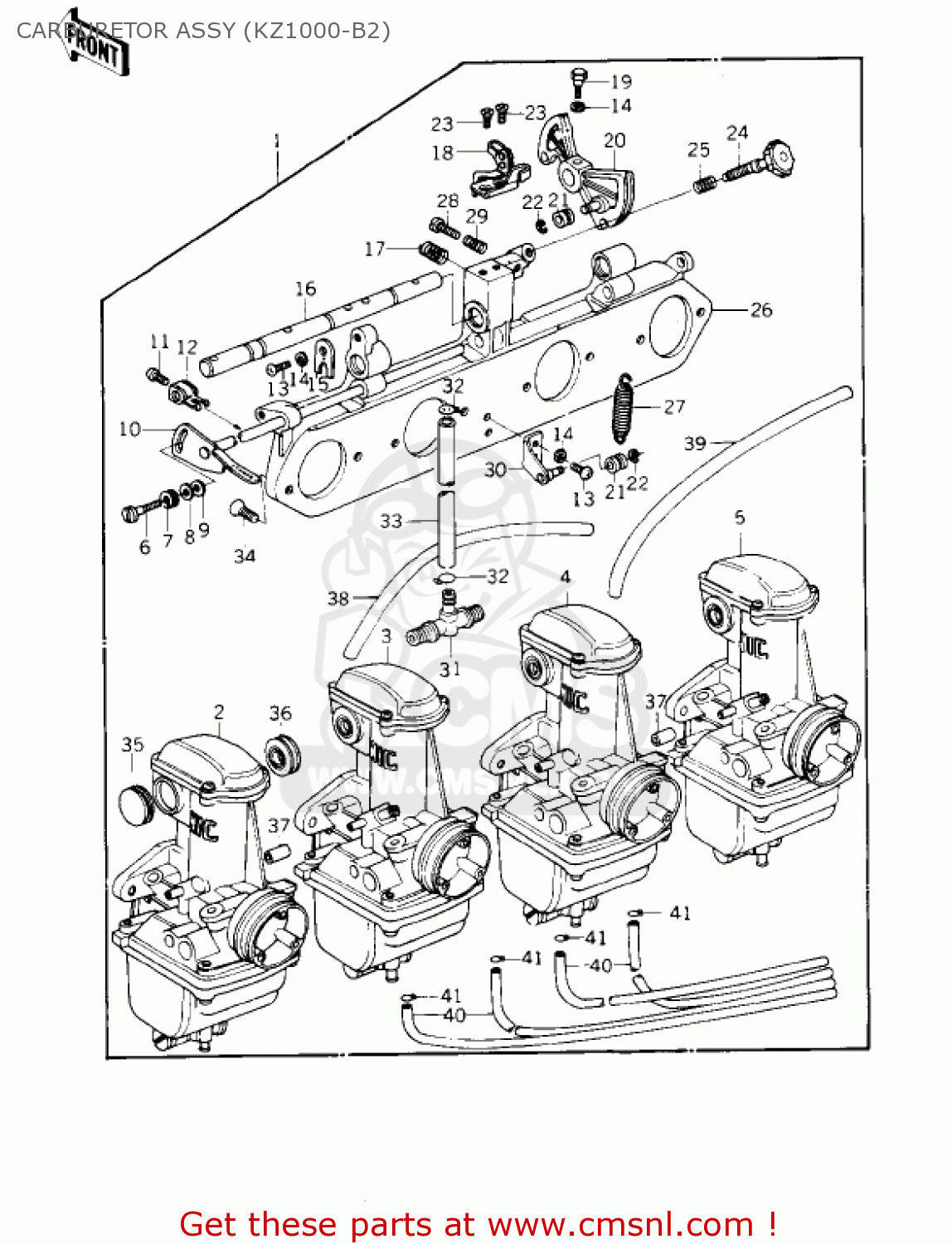

Carburetor assy (kz1000-b2) diagram KZ1000B2 KZ1000 LTD 1978 USA CANADA

CARBURETOR ASSY (KZ1000-B2) KZ1000B2 KZ1000 LTD 1978 USA CANADA

CARBURETOR ASSY (KZ1000-B2) KZ1000B2 KZ1000 LTD 1978 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

160011017
ref: 1

CARBURETOR ASSEMBLY

€ 907.00

2

160011034
ref: 2

CARBURETOR,OUTSIDE,LH

€ 266.50

3

160011035
ref: 3

CARBURETOR,INSIDE,LH

€ 266.50

4

160011036
ref: 4

CARBURETOR,INSIDE,RH

€ 266.50

5

160011037
ref: 5

CARBURETOR,OUTSIDE,LH

€ 266.50

6

16046005
ref: 6

SCREW

€ 4.50

7

16040009
ref: 7

SPRING,F

€ 6.50

8

410B0500
ref: 8
STEEL

WASHER-PLAIN-SMALL,5M

€ 0.50

9

16039019
ref: 9
NYLON

WASHER-PLAIN

€ 3.00

10

16041021
ref: 10

SHAFT,STARTER PLUNGER

€ 37.50

11

16046007
ref: 11

SCREW,PAN HEAD,5X7

€ 6.50

12

131681026
ref: 12

LEVER,STARTER PLUNGER

€ 13.50

13

220B0514
ref: 13

ACREW-PAN HEAD,5X14

€ 2.50

14

461F0500
ref: 14

WASHER-SPRING,5MM

€ 0.50

15

16055012
ref: 15

PLATE,SHAFT STOPPER

€ 7.00

16

16041017
ref: 16

SHAFT,CARB CONNECTION

€ 47.50

17

16040022
ref: 17

SPRING,CABLE PLY BKT

€ 6.00

18

16077017
ref: 18

BRACKET,THROTTLE CABL

€ 41.00

19

16067006
ref: 19

BOLT-HEX HEAD,5X14

€ 10.50

20

16068015
ref: 20

PULLEY,THROTTLE CABLE

€ 46.00

21

16073016
ref: 21

RING

€ 8.00

22

482K3000
ref: 22

CIRCLIP-TYPE-E,3MM

€ 2.00

23

221B0510A
ref: 23

SCREW-CNTSNK HD,5X10

€ 2.50

24

160211010
ref: 24

SCREW-THROTTLE STOP

€ 16.00

25

16022017
ref: 25

SPRING, THROTTLE STOP

€ 4.50

26

16065049
ref: 26

HOLDER, CARBURETOR

€ 78.50

27

920811028
ref: 27

SPRING,THORTTLE PULLY

€ 41.00

28

16021032
ref: 28

SCREW

€ 4.00

29

16022010
ref: 29

SPRING,THROTTLE ADJST

€ 4.50

30

16077016
ref: 30

BRACKET,THROTTLE CABL

€ 10.00

31

16046002
ref: 31

SCREW,FUEL PIPE

€ 31.50

32

92037056
ref: 32

CLAMP,FUEL TUBE

€ 3.00

33

92059144
ref: 33

HOSE, FUEL

€ 50.50

34

16033029
ref: 34

SCREW,PAN HEAD,6X14

€ 3.00

35

16039042
ref: 35

CAP,RUBBER

€ 9.00

36

92071104
ref: 36

GROMMET,CARBURETOR

€ 16.00

37

92059141
ref: 37

HOSE, 6X11.5X16

€ 9.00

38

920591028
ref: 38

HOSE,AIR VENT,5X8X550

€ 13.00

39

920591028
ref: 39

HOSE,AIR VENT,5X8X550

€ 13.00

40

92059147
ref: 40

HOSE,FUEL OVERFLOW

€ 17.50

41

92037173
ref: 41

CLAMP,TUBE

€ 4.50
