FUEL TANK ('79-'80 B3/B4)

KZ1000B2 KZ1000 LTD 1978 USA CANADA

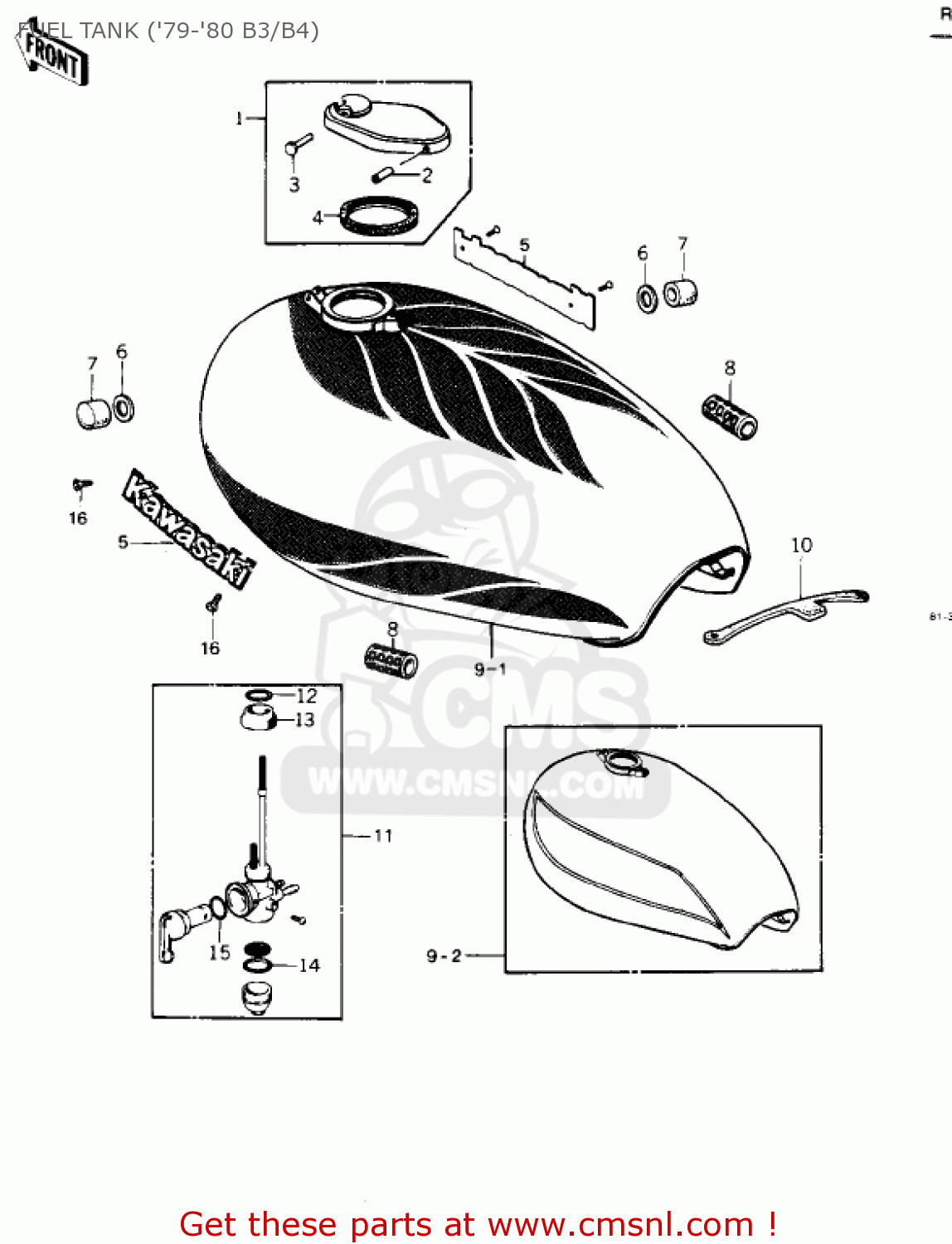

Fuel tank ('79-'80 b3/b4) diagram KZ1000B2 KZ1000 LTD 1978 USA CANADA

FUEL TANK ('79-'80 B3/B4) KZ1000B2 KZ1000 LTD 1978 USA CANADA

FUEL TANK ('79-'80 B3/B4) KZ1000B2 KZ1000 LTD 1978 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

51048012
ref: 1

CAP-ASSY-TANK,FUEL

€ 72.00

2

92043127
ref: 2

PIN,CAP HINGE

€ 3.00

3

92043126
ref: 3

PIN,3X27

€ 2.50

4

51059008
ref: 4

GASKET,FUEL TANK CAP (NAS)

€ 7.00

5

560141038
ref: 5
KZ1000-B3

EMBLEM,FUEL TANK

€ 36.50

5

560141038
ref: 5
KZ1000-B4

EMBLEM,FUEL TANK

€ 36.50

6

92022044
ref: 6

WASHER,10.5X26X2.3

€ 2.50

7

92075125
ref: 7
FRONT

DAMPER RUBBER-FL TANK

€ 4.00

8

92075084
ref: 8
REAR

DAMPER,FUEL TANK

€ 6.50

9-1

510011148J
ref: 9-1
KZ1000-B3

FUEL TANK,GLAZER GREEN

€ 1,091.00

9-2

5100155018G
ref: 9-2
KZ1000-B3

FUEL TANK,EBONY

€ 364.00

9-3

510011148K
ref: 9-3
KZ1000-B4

FUEL TANK,SUNDANCE BLUE

€ 1,091.00

9-4

5100155028G
ref: 9-4
KZ1000-B4

FUEL TANK,EBONY

€ 394.50

10

92072042
ref: 10

BAND,FUEL TANK

€ 9.00

11

510231002
ref: 11

TAP ASSY

€ 108.00

12

92065081
ref: 12

GASKET-FUEL COCK JONT (NAS)

€ 3.50

13

51035009
ref: 13

NUT,FUEL COCK JOINT

€ 6.00

14

51037010
ref: 14

GASKET-FUEL COCK CUP (NAS)

€ 3.50

15

670B2010
ref: 15

O RING,10MM

€ 1.00

16

221C0306
ref: 16

SCREW-CSR-CROS

€ 0.50
