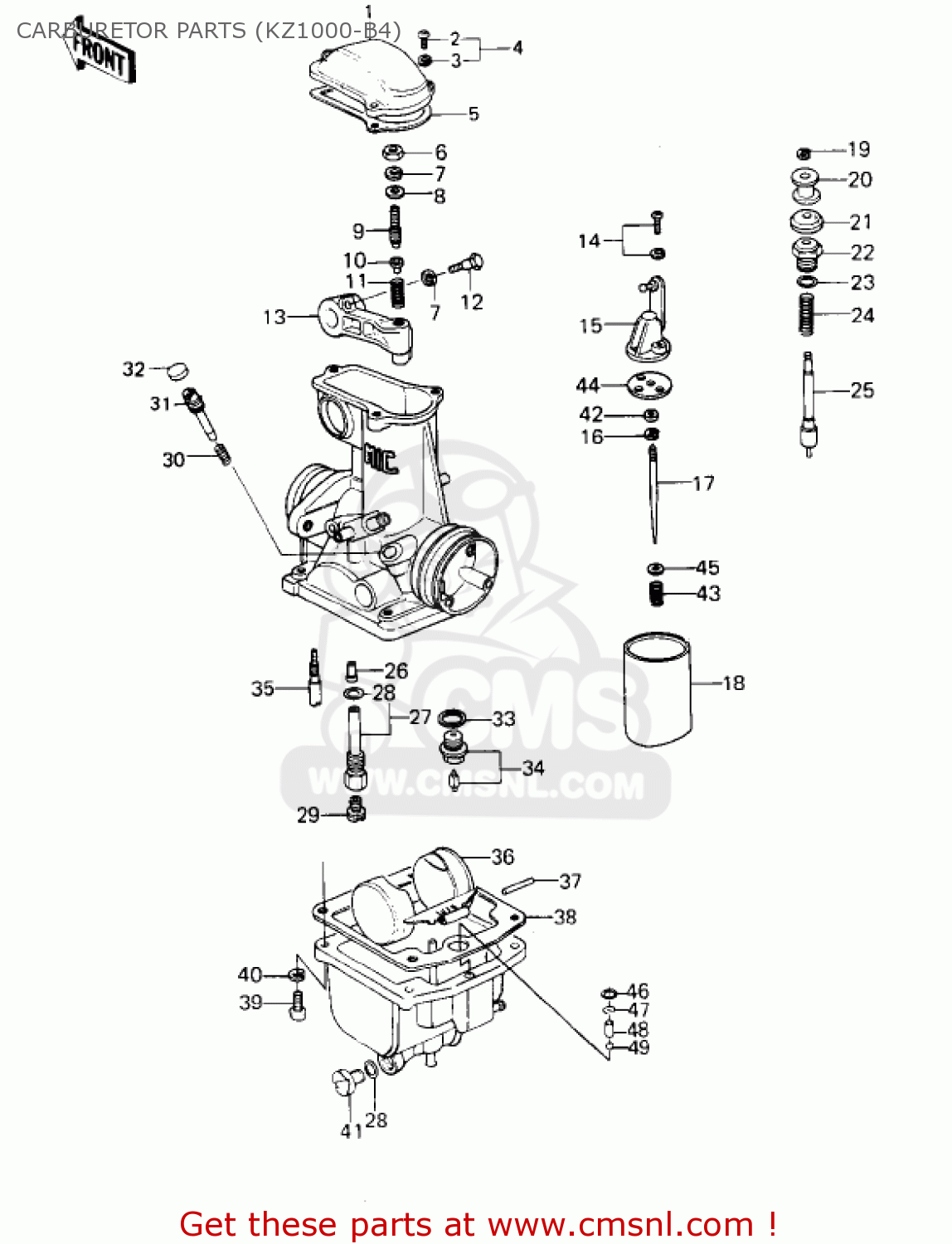

CARBURETOR PARTS (KZ1000-B4)

ref

part #

description

quantity

1

16005027
ref: 1

TOP,MIXING CHAMBER

€ 15.50

2

220B0414
ref: 2

SCREW-PAN-CROS

€ 2.00

3

461F0400
ref: 3

WASHER-SPRING,4MM

€ 0.50

4

223B0414
ref: 4

SCREW PAN-WS-CROS

€ 2.50

5

16019031
ref: 5

GASKET,CHAMBER,TOP (NAS)

€ 24.50

6

16003013
ref: 6

NUT,5M/M

€ 6.00

6

312B0500
ref: 6

NUT-HEX,5MM

€ 0.50

7

461F0500
ref: 7

WASHER-SPRING,5MM

€ 0.50

8

16039016
ref: 8

WASHER,PLAIN

€ 3.50

9

16046012
ref: 9

SCREW, SLOTTED

€ 13.50

10

16057002
ref: 10

SEAT-SPRING

€ 6.00

11

16040026
ref: 11

SPRING

€ 3.50

12

16067006
ref: 12

BOLT-HEX HEAD,5X14

€ 10.50

13

390751001
ref: 13

LEVER,THROTTLE

€ 25.00

14

16033031
ref: 14

SCREW, PAN HEAD, 3X14

€ 3.50

15

110341238
ref: 15

THROTTLE VALVE BRACKET

€ 29.00

16

16008010
ref: 16

CLAMP,E-TYPE

€ 5.00

17

160091046
ref: 17

JET,NEEDLE,5CN29

€ 21.00

18

160251026
ref: 18

THROTTLE VALVE,CA2.0

€ 57.50

19

16076003
ref: 19

CLAMP

€ 4.50

20

16073014
ref: 20

COLLAR,STARTER PLUNGE

€ 5.50

21

16039015
ref: 21

CAP,STARTER PLUNGER

€ 4.50

22

16012015
ref: 22

CAP-STARTER PLUNGER

€ 8.50

23

670B1509
ref: 23

O RING,9MM

€ 1.00

24

16013008
ref: 24

SPRING-STARTER PLUNG

€ 4.50

25

16016021
ref: 25

PLUNGER,STARTER

€ 26.00

26

160171035
ref: 26

NEEDLE-JET A0-4

€ 24.50

27

491221001
ref: 27

PIPE-BLEEDER

€ 37.50

28

16038016
ref: 28

GASKET,O-RING

€ 2.50

29

920631028
ref: 29

JET-MAIN,#A102.5R

€ 10.00

29

920631033
ref: 29
RACING USE ONLY

JET-MAIN,#A100R

€ 17.00

29

920631042
ref: 29
RACING USE ONLY

JET-MAIN,#A105R

€ 10.50

29

92063073
ref: 29
RACING USE ONLY

JET-MAIN,#107.5R

€ 9.50

30

16022007
ref: 30

SPRING-THR STOP SCREW

€ 5.50

31

160141020
ref: 31

PILOT ADJUSTING SCREW

€ 9.00

32

920661051
ref: 32

PLUG,PILOT AIR SCREW,

€ 3.00

33

16029004
ref: 33

WASHER-FLOAT VLV SEAT

€ 2.50

34

16030027
ref: 34

VALVE-FLOAT

€ 85.00

35

920641017
ref: 35

PILOT JET #A15

€ 15.00

36

16031031
ref: 36

FLOAT

€ 114.50

37

16032003
ref: 37

FLOAT PIN

€ 4.00

38

110091562
ref: 38

GASKET,FLOAT CHAMBER (NAS)

€ 12.50

39

220B0416
ref: 39

SCREW-PAN-CROS

€ 2.00

40

461F0400
ref: 40

WASHER-SPRING,4MM

€ 0.50

41

16049007
ref: 41

SCREW, GUIDE

€ 9.50

42

920271103
ref: 42

RING,JET NEEDLE

€ 4.50

43

920811072
ref: 43

NEEDLE JET SPRING

€ 2.50

44

131691107
ref: 44

NEEDLE JET PLATE

€ 5.50

45

920221024
ref: 45

WASHER,THROTTLE VALVE

€ 4.50

46

920551059
ref: 46

RING-O,CHECK VALVE

€ 7.50

47

920371123
ref: 47

CLAMP,SPRING,CHECK VA

€ 3.50

48

130421004
ref: 48

WEIGHT,PUMP,CHECK VAL

€ 3.50

49

921401003
ref: 49

BALL,STEEL,5/32

€ 3.50
