FUEL TANK (KZ1000-B2)

KZ1000B2 KZ1000 LTD 1978 USA CANADA

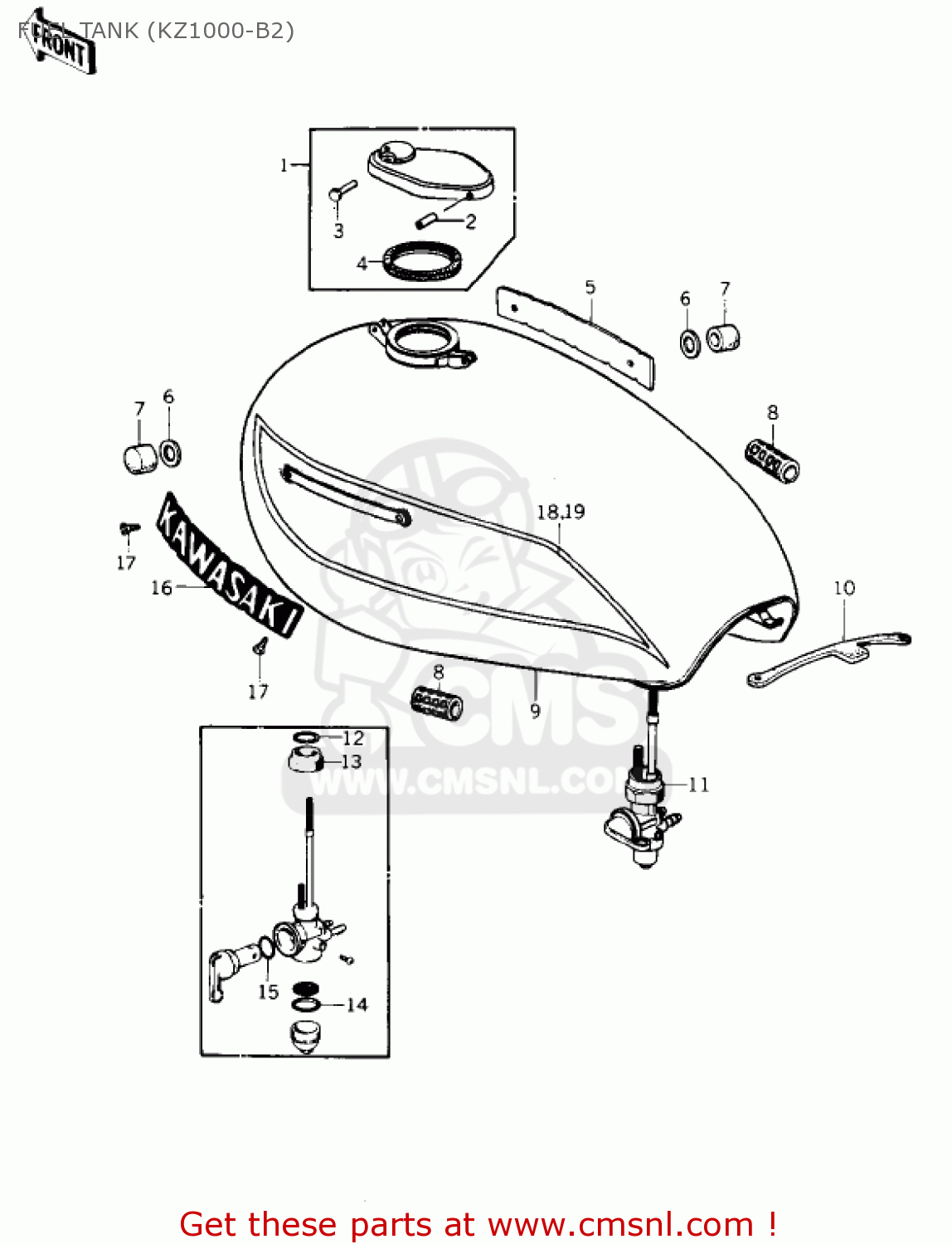

Fuel tank (kz1000-b2) diagram KZ1000B2 KZ1000 LTD 1978 USA CANADA

FUEL TANK (KZ1000-B2) KZ1000B2 KZ1000 LTD 1978 USA CANADA

FUEL TANK (KZ1000-B2) KZ1000B2 KZ1000 LTD 1978 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

51048012
ref: 1

CAP-ASSY-TANK,FUEL

€ 72.00

2

92043127
ref: 2

PIN,CAP HINGE

€ 3.00

3

92043126
ref: 3

PIN,3X27

€ 2.50

4

51059008
ref: 4

GASKET,FUEL TANK CAP (NAS)

€ 7.00

5

560141014
ref: 5

EMBLEM,FUEL TANK,RH

€ 44.00

6

92022044
ref: 6

WASHER,10.5X26X2.3

€ 2.50

7

92075125
ref: 7
FRONT

DAMPER RUBBER-FL TANK

€ 4.00

8

92075084
ref: 8
REAR

DAMPER,FUEL TANK

€ 6.50

9

510011148G
ref: 9

FUEL TANK,EBONY

€ 1,091.00

9

510011148H
ref: 9

FUEL TANK

€ 1,091.00

10

92072042
ref: 10

BAND,FUEL TANK

€ 9.00

11

510231002
ref: 11

TAP ASSY

€ 108.00

12

92065081
ref: 12

GASKET-FUEL COCK JONT (NAS)

€ 3.50

13

51035009
ref: 13

NUT,FUEL COCK JOINT

€ 6.00

14

51037010
ref: 14

GASKET-FUEL COCK CUP (NAS)

€ 3.50

15

670B2010
ref: 15

O RING,10MM

€ 1.00

16

560141013
ref: 16

EMBLEM,FUEL TANK,LH

€ 44.00

17

221C0306
ref: 17

SCREW-CSR-CROS

€ 0.50

18

560271211
ref: 18

FUEL TANK DECAL,RH

€ 13.50

19

560271212
ref: 19

FUEL TANK DECAL,LH

€ 13.50
