CHASSIS ELECTRICAL EQUIPMENT ('7

KZ1000B2 KZ1000 LTD 1978 USA CANADA

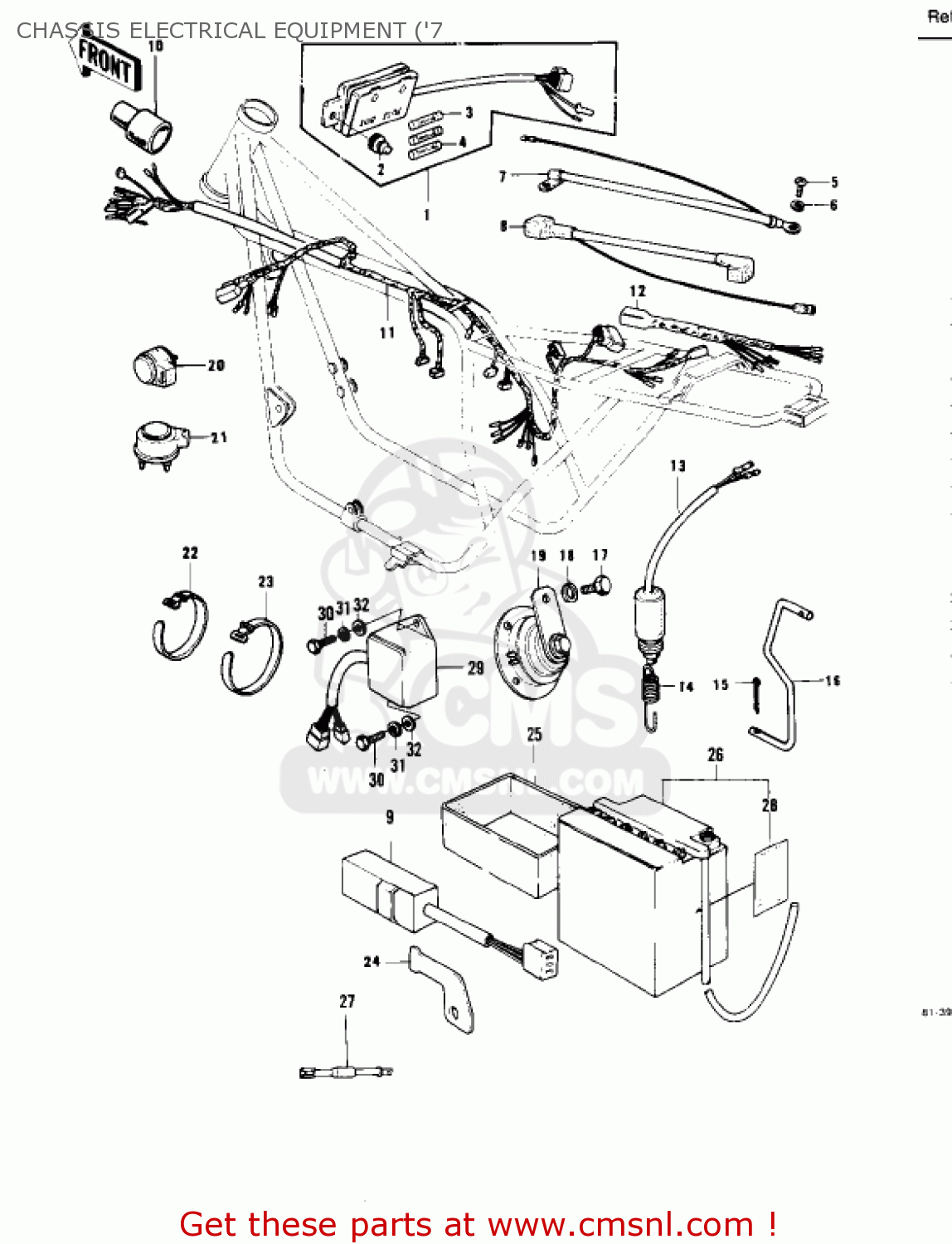

Chassis electrical equipment ('7 diagram KZ1000B2 KZ1000 LTD 1978 USA CANADA

CHASSIS ELECTRICAL EQUIPMENT ('7 KZ1000B2 KZ1000 LTD 1978 USA CANADA

CHASSIS ELECTRICAL EQUIPMENT ('7 KZ1000B2 KZ1000 LTD 1978 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

260041006
ref: 1

FUSE-ASSY

€ 57.00

2

92075279
ref: 2

DAMPER,FUSE

€ 3.50

3

26006005
ref: 3

FUSE 20A

€ 3.50

4

26006003
ref: 4

FUSE 10A

€ 3.00

5

92001137
ref: 5

BOLT,HEX HEAD,6M/M

€ 4.00

6

461F0600
ref: 6

WASHER-SPRING,6MM

€ 0.50

7

26010054
ref: 7

WIRE-LEAD,BATTERY GRO

€ 17.00

8

26010053
ref: 8

WIRE-LEAD,STARTER MOT

€ 18.50

9

28019001
ref: 9

SWITCH,OUTAGE INDICTR

€ 46.00

10

26009003
ref: 10

COVER-WIRING HARNESS

€ 2.00

11

260011055
ref: 11
KZ1000-B3

WIRING HARNESS,MAIN

€ 215.00

11

260011137
ref: 11
KZ1000-B4

WIRING HARNESS,MAIN

€ 140.50

12

26002031
ref: 12

HARNESS,RR

€ 36.50

13

27010017
ref: 13

SWITCH,BRAKE LAMP

€ 23.50

14

27011009
ref: 14

SPRING-BRAKE LAMP SW

€ 4.50

15

550D1610
ref: 15

PIN-COTTER,1.6X10

€ 2.00

16

27012010
ref: 16

HOOK,BRAKE LAMP SWITC

€ 9.00

17

115G0816
ref: 17

BOLT-HEX,HEAD 8X16

€ 0.50

18

461F0800
ref: 18

WASHER-SPRING,8MM

€ 0.50

19

270031006
ref: 19

HORN

€ 99.00

20

27002011
ref: 20

RELAY-ASSY,TURN SIGNA

€ 69.50

21

27002016
ref: 21

RELAY-ASSY,HAZARD

€ 26.50

22

92072030
ref: 22

BAND,SHORT

€ 3.00

23

92072056
ref: 23

BAND,RUBBER

€ 3.00

24

32060014
ref: 24

BRACKET,OUTAGE SWITCH

€ 7.50

25

32099015
ref: 25

CASE,BATTERY

€ 9.00

26

260121008
ref: 26
YB-14USA

BATTERY,12V13AH W/LAB

€ 101.50

26

260121009
ref: 26
CANADA

BATTERY,12V13AH

€ 101.50

27

21066026
ref: 27

REGULATOR-VOLTAGE

€ 13.00

28

560401036
ref: 28

WARNING, BATTERY

€ 2.00

29

270101024
ref: 29
KZ1000-B4

SWITCH,RESERV LIGHTIN

€ 149.00

30

220B0620
ref: 30
KZ1000-B4

SCREW-PAN HEAD,6X20

€ 2.50

31

461F0600
ref: 31
KZ1000-B4

WASHER-SPRING,6MM

€ 0.50

32

410B0600
ref: 32
KZ1000-B4

WASHER-PLAIN-SMALL,6M

€ 0.50
