METERS/IGNITION SWITCH ('79-'80

KZ1000B2 KZ1000 LTD 1978 USA CANADA

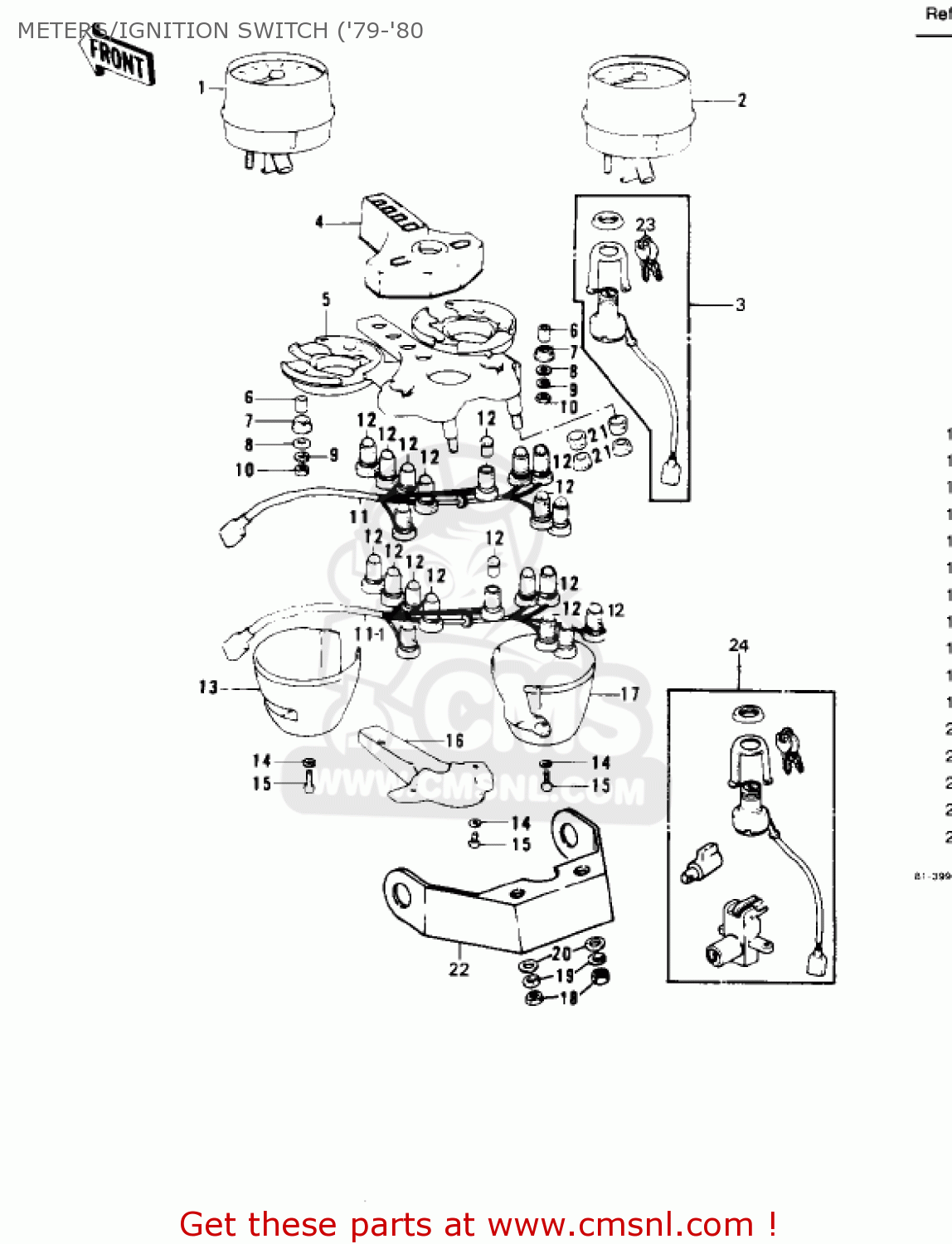

Meters/ignition switch ('79-'80 diagram KZ1000B2 KZ1000 LTD 1978 USA CANADA

METERS/IGNITION SWITCH ('79-'80 KZ1000B2 KZ1000 LTD 1978 USA CANADA

METERS/IGNITION SWITCH ('79-'80 KZ1000B2 KZ1000 LTD 1978 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

250051031
ref: 1
KZ1000-B3

SPEEDOMETER ASSY,MPH

€ 502.00

1

250051067
ref: 1
USA KZ1000-B4

SPEEDOMETER ASSEMBLY,MPH

€ 460.50

1

25006056
ref: 1
CANADA KZ1000-B4

SPEEDOMETER ASSY,KPH

€ 760.00

2

250151010
ref: 2
KZ1000-B3

TACHOMETER

€ 465.50

2

250151050
ref: 2
KZ1000-B4

TACHOMETER ASSEMBLY

€ 320.50

3

270055008
ref: 3

SWITCH ASSY,IGNITION

€ 185.00

4

25023015
ref: 4

COVER-METER CASE

€ 98.00

5

250081005
ref: 5
USA KZ1000-B4

BRACKET-METER

€ 156.00

5

25008045
ref: 5
ALL KZ1000-B3 & CANA

BRACKET,SPEEDOMETER

€ 156.00

6

92027211
ref: 6

COLLAR,5.6X8X13.8

€ 8.50

7

92075172
ref: 7

DAMPER

€ 12.50

8

92022241
ref: 8

WASHER,5.2X15X1.6

€ 2.50

9

461F0500
ref: 9

WASHER-SPRING,5MM

€ 0.50

10

312B0500
ref: 10

NUT-HEX,5MM

€ 0.50

11

25011049
ref: 11
KZ1000-B3

SOCKET,SPEEDOMETER

€ 155.00

11-1

230081055
ref: 11-1
KZ1000-B4

METER SOCKET ASSEMBLY

€ 97.50

12

92069018
ref: 12

BULB 12V 3W

€ 4.00

13

25012023
ref: 13
CHROME

COVER,SPEEDOMETER

€ 205.00

14

461F0300
ref: 14

WASHER-SPRING,3MM

€ 0.50

15

220B0308
ref: 15

SCREW-PAN-CROS

€ 0.50

16

25024006
ref: 16

COVER,METER BRACKET

€ 14.50

17

25012024
ref: 17
CHROME

COVER,TACHOMETER

€ 205.00

18

311B0800
ref: 18

NUT,8MM

€ 0.50

19

461F0800
ref: 19

WASHER-SPRING,8MM

€ 0.50

20

411B0800
ref: 20

WASHER-PLAIN,8MM

€ 0.50

21

92075080
ref: 21

DAMPER

€ 5.50

22

23064030
ref: 22

HEADLAMP BRACKET

€ 59.50

23

270081103
ref: 23

KEY-LOCK,BLANK

€ 13.50

24

270045036
ref: 24

LOCK ASSEMBLY,KZ1000-B3

€ 86.00
